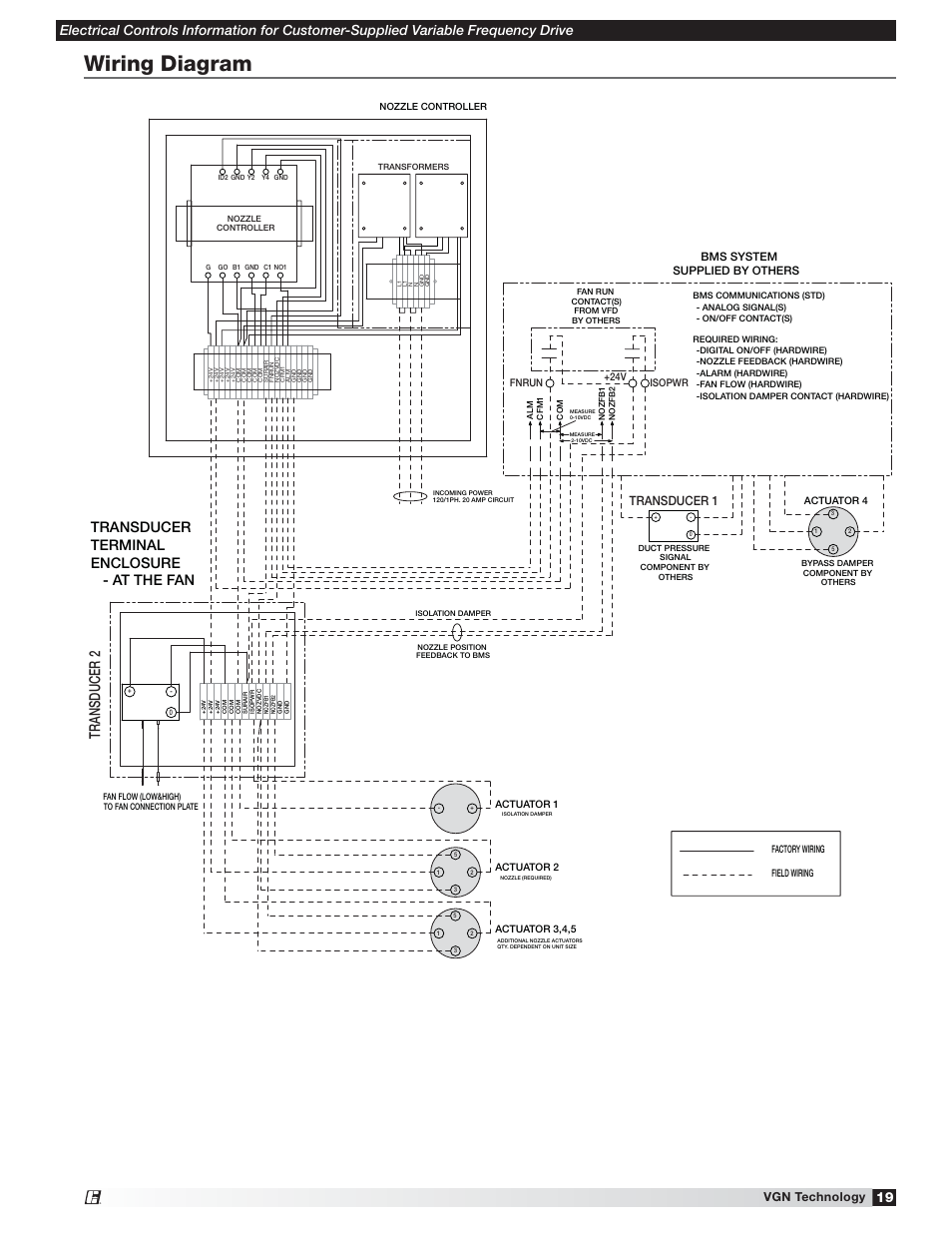

Wiring diagram, Transducer 2, Transducer terminal enclosure - at the fan – Greenheck Vektor Laboratory Exhaust with VGN Technology Electrical Controls Information (476072) User Manual
Page 19: Transducer 1, Vgn technology, Bms system supplied by others
