Arm lights
Camera
Camera stand
Back light
Remote control slot
Operation panel
Stage
Connectors
Connectors
Button instruction
Ppw (Control the projector On/Standby)
Pin (Projector input signal selection)
/ (Move the image up/down) (Optional)
CCD/PC1/PC2 (CCD/RGB input signal selection)
VIDEO (VIDEO input signal selection)
LAMP (Control the arm lights and back light)
AUTO (To auto adjust white balance and auto focus)
T/ (Increase and decrease the magnification)
BASIC PREPARATIONS

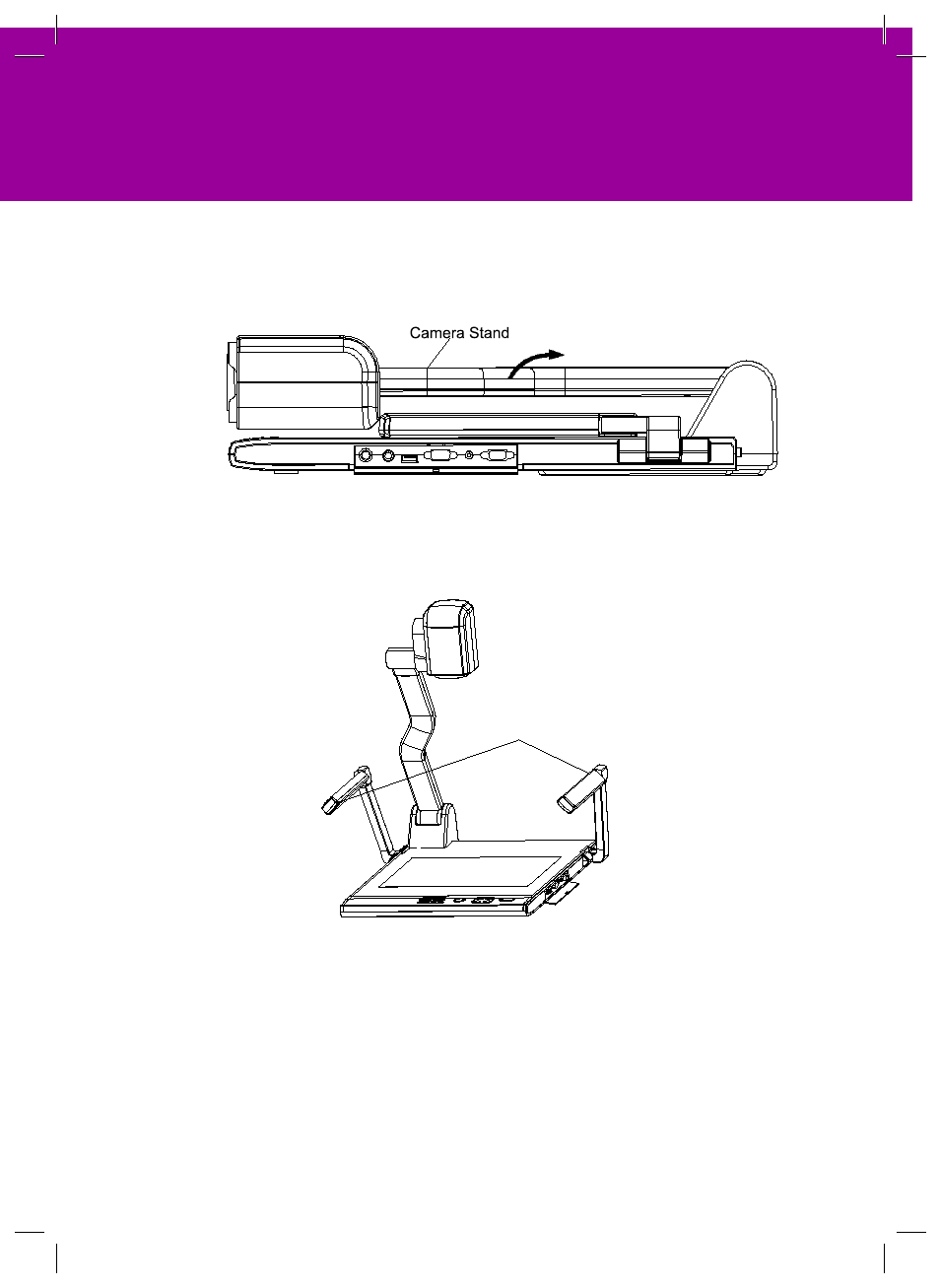

1. Use one hand to hold the base of the visualiser, use the other
hand to carefully lift up the camera stand of the unit.
2. Open the arm lights and rotate the camera head until they
are in proper positions.
3. Making connections:
Before making any connection, turn off all the power, including
power of the visualiser and the equipment to be connected.
Step 1: Connect power source.
First connect the power cord to the 12V IN connector.
Arm lights
