Pub. 42003-203B
M ODEL 12250-002 V OLUME L EVEL C ONTROL R ECEIVER A SS ’ Y (120 V AC ) R EPLACEMENT K IT Page 2 of 7
f:\standard ioms - current release\42003 kit manuals\42003-203b.doc
10/13
N OTES :
1. This volume level control (VLC) kit can be used on older GAI-Tronics amplifiers (not listed);
however, it is not recommended. Amplifier models not included on the list on page 1 have been
obsolete since the 1987-1989 time period, and replacement parts for them are available on a limited
basis. If the VLC is to be installed in a station with an older amplifier, replace amplifier with a listed
model (possibly switching amplifiers from a location that does not require a VLC and has a newer,
listed amplifier).
2. All agency approvals are nullified with the addition of VLC assembly, if not factory installed.
This kit includes the following components:
Qty Description
1 Volume Level Control Receiver Assembly (for 120 V ac applications only)
2 Screw, 6-32
 ¼-inch PHMS
1 Resistor, ¼-watt, 5%
1 Template (for locating drilling holes)
1 Tie wrap
N
OTES : All items contained in this kit may not be required in all installations.
Installation

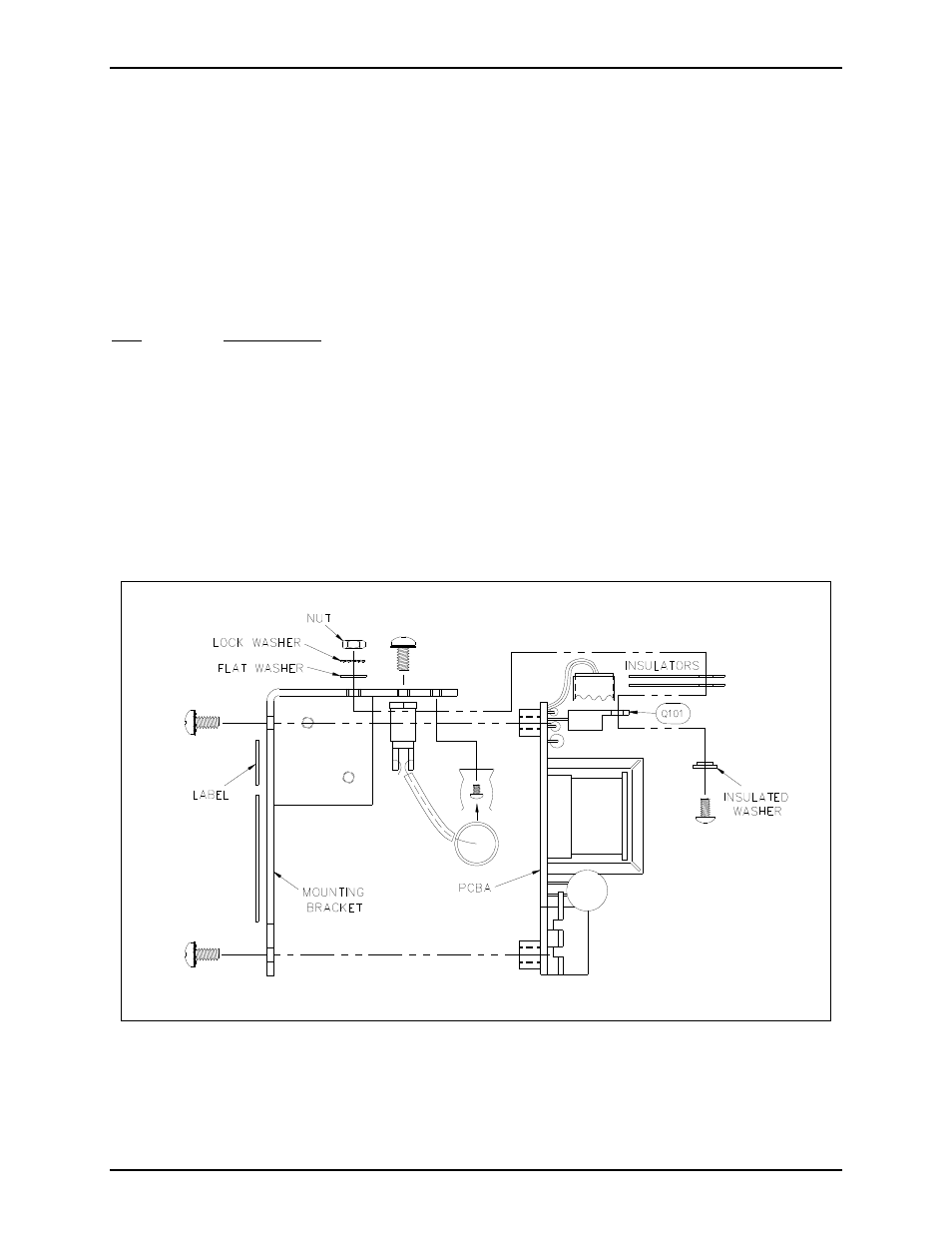

Figure 1. VLC Assembly
