If either cable leg is grounded, or if a cable break occurs on either leg, the 20 k Ω load is removed
indicating a fault condition.
N OTE : The 20 k
Ω, 5% tolerance resistor is not included with the MRM. This resistor is included in the
Model 12509-003 Kit, which is sold separately.
Mode 2: IDC Single Normally-Open (N.O.) Switch
In this configuration, only one normally open voltage-free contact closure may be installed and a 5.1 k Ω
and 15 k Ω resistor must be wired in series/parallel with the contact. The cable is monitored for open
circuits, wire-to-wire short circuits (across + and −), and ground faults. When the contact is inactive
(open), the line appears as 20.1 k
Ω load (15 kΩ in series with 5.1 kΩ). This indicates a healthy inactive
cable loop.

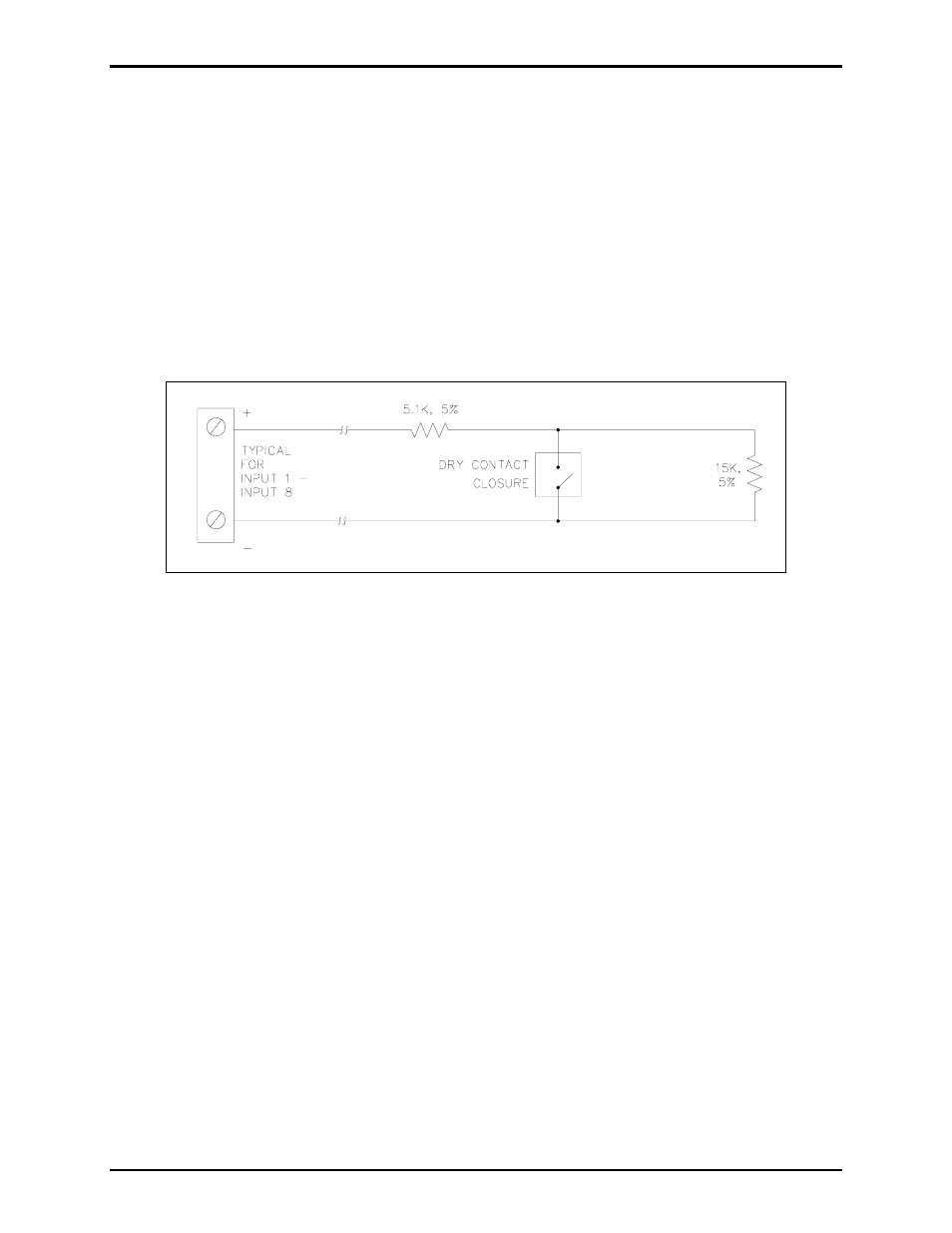

Figure 3. Single normally-open switch
When the contact closed, the 15 k Ω resistor is bypassed. The circuit then sees only the 5.1 kΩ load,
indicating an active input.
If there is a short across + and −, if either cable leg is grounded, or if a cable break occurs on either leg,
the 20 k
Ω load is removed indicating a fault condition.
N OTE : The terminating resistors are not included with the MRM. These resistors are included in the
Model 12509-003 Kit, which is sold separately.
