8. Attach the front panel of the flush-mount telephone to the mounting flanges of the enclosure using
the six #10 security screws and the six black flat washers that are provided with the telephone. A
Model 233-001 Security Screwdriver (sold-separately) is recommended for installing the security
screws.
9. Secure a telephone handset symbol label to the right side and to the left side of the enclosure’s
exterior. See Figure 1.
Specifications
Construction................................................................................................................ 0.063 aluminum sheet
Finish .............................................................................................................................. . Polyurethane paint
Mounting........................................... Four 5/16-inch (0.312) diameter mounting holes in mounting bosses
Dimensions ..................................... 12.3 H
× 10.31 W × 6.37 D inches; (312 × 262 × 162 mm), maximum
Shipping weight .................................................................................................... 3.5 lb. (1.6 kg) maximum

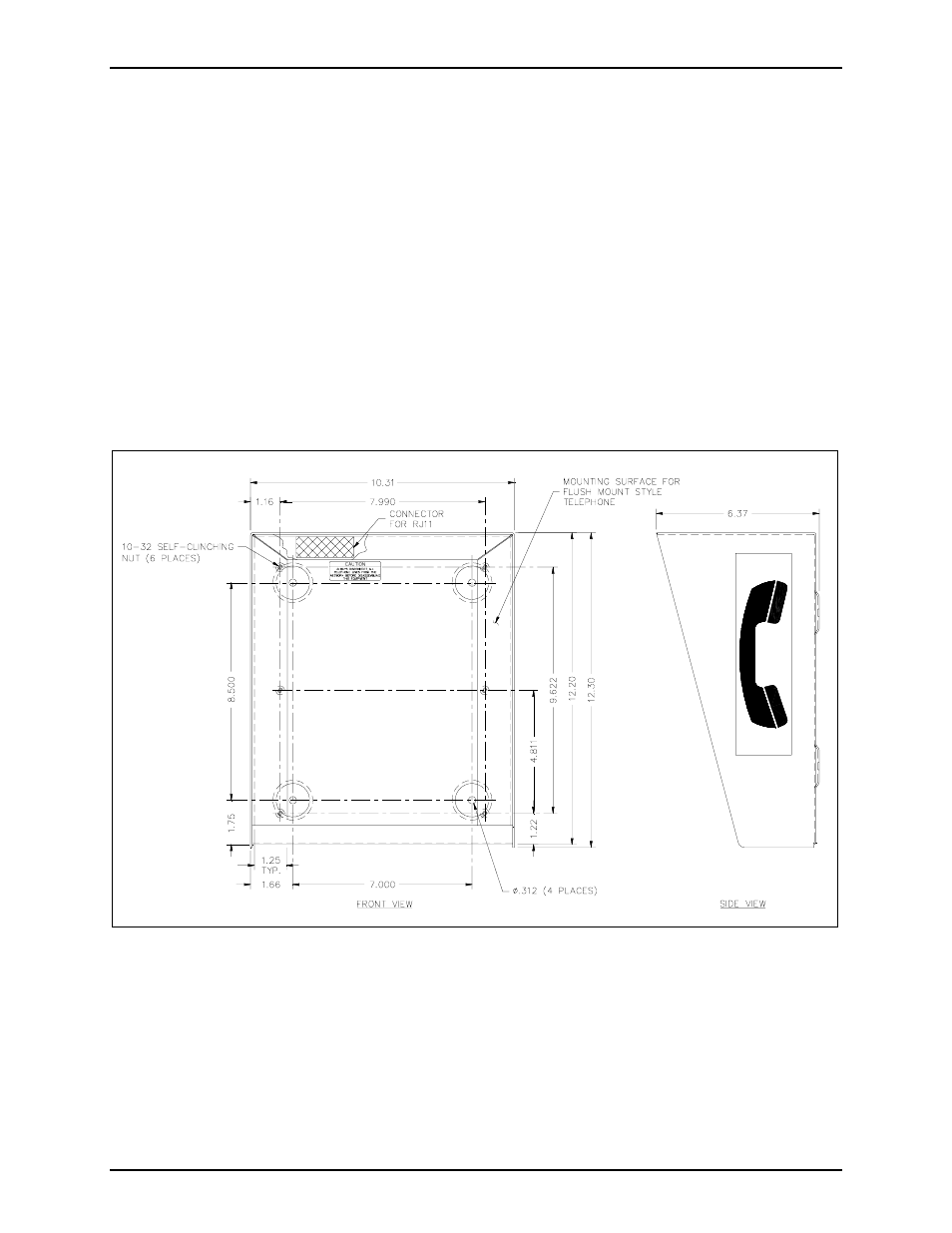

Figure 1. Model 236-001 Series Surface-Mount Enclosure Outline
