Installation
Mounting
Please refer to Figure 1 for mounting details. This station is not supplied with openings for conduit or
cable. Drill or punch these openings before mounting the enclosure. The best place to put the conduit
holes is along the bottom of the enclosure and near the rear surface.
There are four 0.437-inch (11.1 mm) diameter mounting holes in the four corners of the amplifier
enclosure. When mounting the enclosure, use caution to avoid damaging the terminal blocks inside. The
suggested mounting height for all station enclosures is 54 inches (1.37 m) to the center of the enclosure.
Ensure that the gasket on the front panel is in place before mounting the station in the enclosure. The
gasket acts as spacer as well as a dust seal.

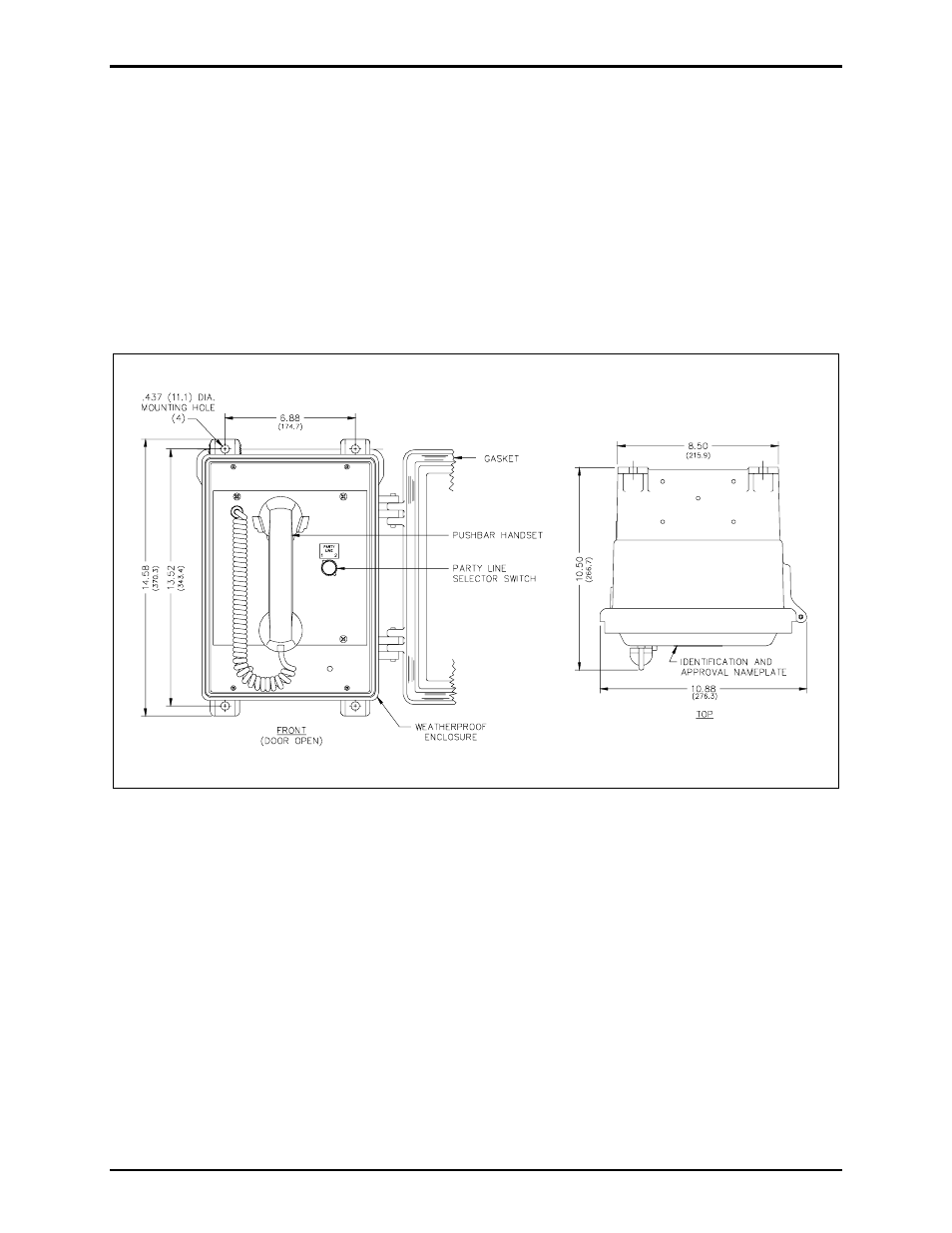

Figure 1. Station Outline and Mounting Details
