Chapter 2 Installation Instructions
14

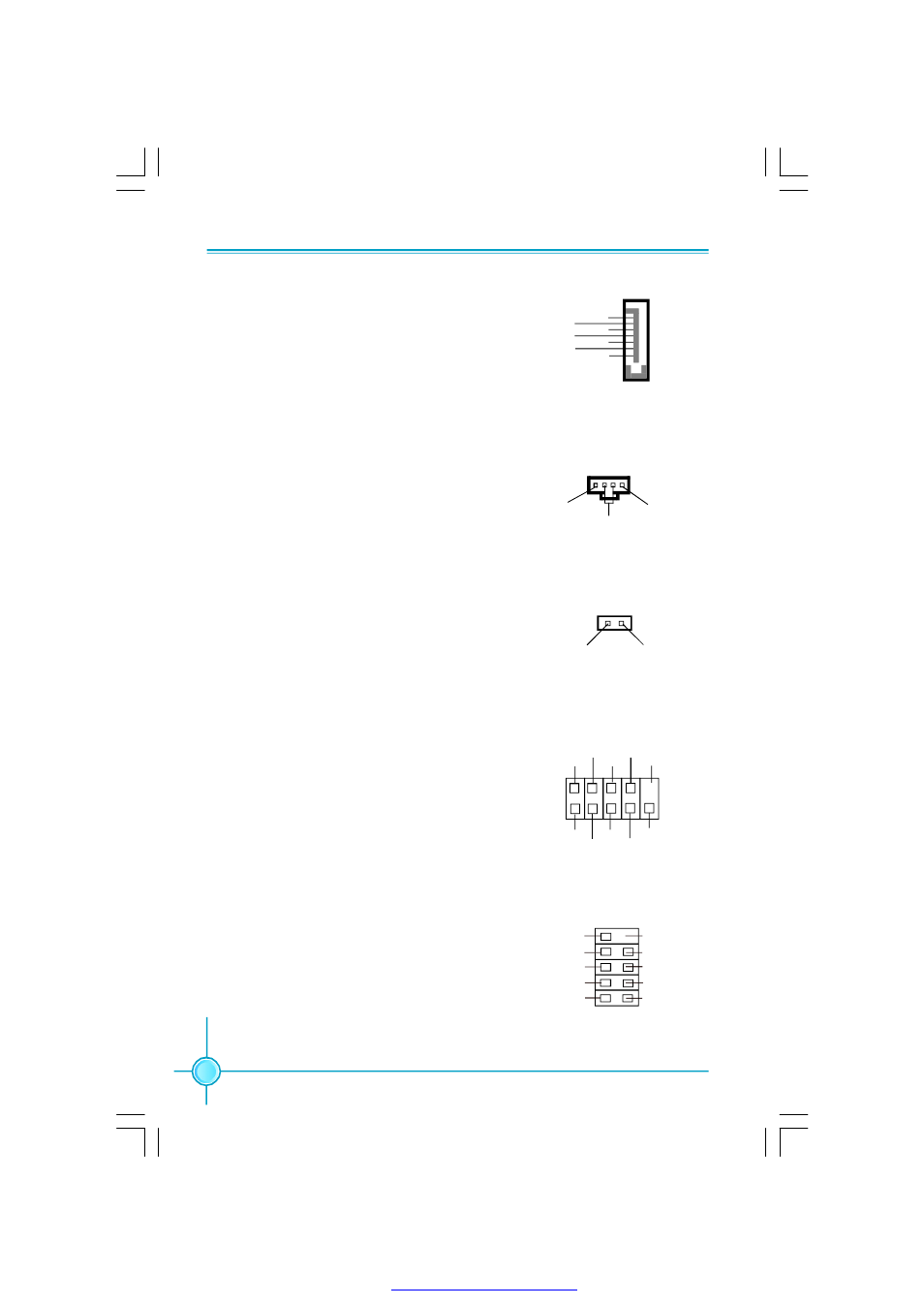

Serial ATA II Connectors: SATA_1, SATA_2,
SATA_3, SATA_4; SATA_5, SATA_6
The Serial ATA II connector is used to connect
the Serial ATA II device to the motherboard. These
connectors support the thin Serial ATA II cables
for primary storage devices. The current Serial
ATA II interface allows up to 300MB/s data trans-
fer rate.
Chassis Intruder Connector: INTR
The connector connects to the chassis security
switch on the case. The system can detect the
chassis intrusion through the status of this
connector. If the connector has been closed
once, the system will send a message.
Audio Connectors: AUX_IN
AUX_IN is Sony standard CD audio connectors,
it can be connected to a CD-ROM drive through
a CD audio cable.
COM Connector: COM2
This motherboard provides an additional serial
COM header for your machine.Connect one side
of a switching cable to the header, then attach
the serial COM device to the other side of the
cable.
COM2
SOUT
GND RLSD RI
DTR
DSR SIN
9
10
1
2
CTS
RTS
Empty
AUX_IN
1
AUX_L
GND
AUX_R
USB Headers: F_USB1, F_USB2, F_USB3
Besides four USB ports on the rear panel, the
series o f m o th erb o ard s also h ave th ree
headers on board which may connect to front
panel USB cable (optional) to provide additional
six USB ports.
F_USB 1/2/3
1
5V_DUAL
D-
D+
D-
GND GND
D+
NC Empty
5V_DUAL
SATA_1/2/3/4/5/6
GND
GND
GND
RX+
RX-
TX+
TX-
1
INTR
INTRUDERJ GND
1
