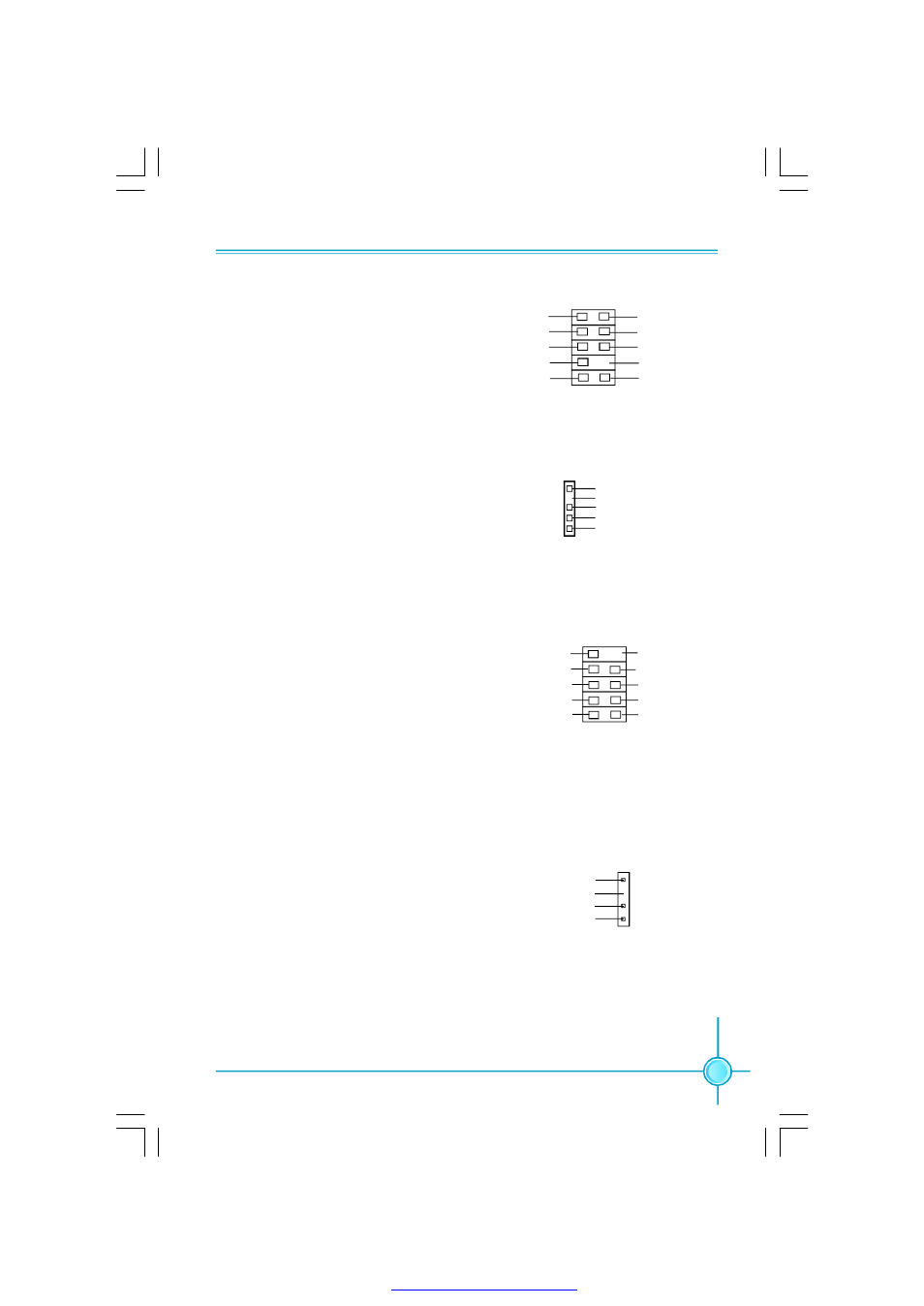

Chapter 2 Installation Instructions
13
Audio Connector: F_AUDIO
The audio connector supports HD au-
dio standard. It provides two kinds of
audio output choices: the Front Audio,
the Rear Audio. Front Audio supports
re-tasking function.
IrDA Connector: IR(optional)
This header supports wireless transmit-
ting and receiving device. Before using
this function, configure the settings of
IR Mode from the “Integrated Peripher-
als” section of the CMOS Setup.
IR
1
+5V
GND
IRRX
IRTX
Empty
1394 Connector: F_1394 (optional)
The 1394 expansion cable can be con-
nected to either the front (provided that
the fro n t p an el o f yo ur ch assis is
e q u i p p e d w i t h t h e a p p r o p r ia t e
interface) or real panel of the chassis.
1 2
GND
+12V
TPB -
GND
TPA -
+12V
TPB +
GND
TPA +
Empty
F_1394
9 10
SPDIF_OUT
1
SPDIF_OUT
+5V
GND
Empty
S/PDIF Out Connector: SPDIF_OUT
(optional)
The SPDIF OUT connector is capable of
provid in g digital au dio to external
speaker or compressed AC3 data to an
external Dolby digital decoder.
1
F_AUDIO
PORT2_L
SENSE_SEND
PORT1_L
PORT1_R
PORT2_R
AUD_GND
PRESENCE_J
SENSE1_RETURN
SENSE2_RETURN
Empty
