Foxconn Q9657MC-8KRS2H V1.1 User Manual
Page 18
Chapter 2 Installation Instructions
12
Other Connectors
This motherboard includes connectors for FDD device, Serial ATA devices, USB
devices, IR module, and others.
FDD Connector: FLOPPY
This motherboard includes a standard FDD connector, supporting 360K, 720K,
1.2M, 1.44M, and 2.88M FDDs.

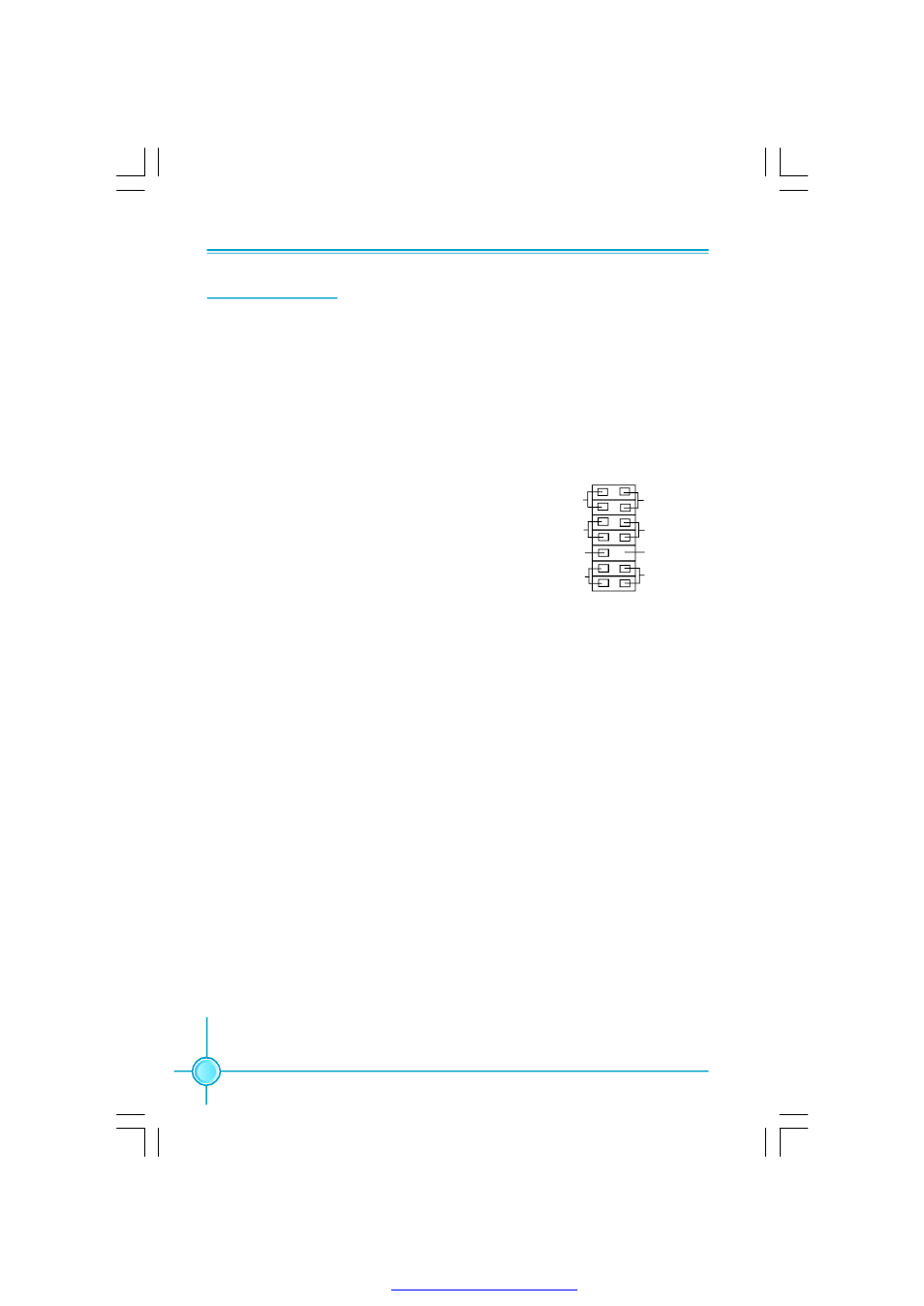

Front Panel Connector: FP1
This motherboard includes one connector for
connecting the front panel switch and LED
indicators.
Reset Switch (RESET)
Attach the connector to the Reset switch on the front panel of the case; the
system will restart when the switch is pressed.
Power LED Connector (PWRLED)
Attach the connector to the power LED on the front panel of the case. The Power
LED indicates the system’s status. When the system is in S0 status, the LED is
on. When the system is in S1 status, the LED is blink; When the system is in S3,
S4, S5 status, the LED is off.
Power Switch Connector (PWRSW)
Attach the connector to the power button of the case. Pushing this switch allows
the system to be turned on and off rather than using the power supply button.
LAN LED Connector (LAN-LED)
The connector connects to the case’s LAN indicator LED indicating the activity
status of LAN.
HDD LED Connector (HDD-LED)
The connector connects to the case’s HDD indi-
cator LED indicating the activity status of hard
disks.
PWRLED
14
13
2
1
FP1
HDD_LED
RESET
5V_SYS
PW RSW
NC
Key
LAN_LED
