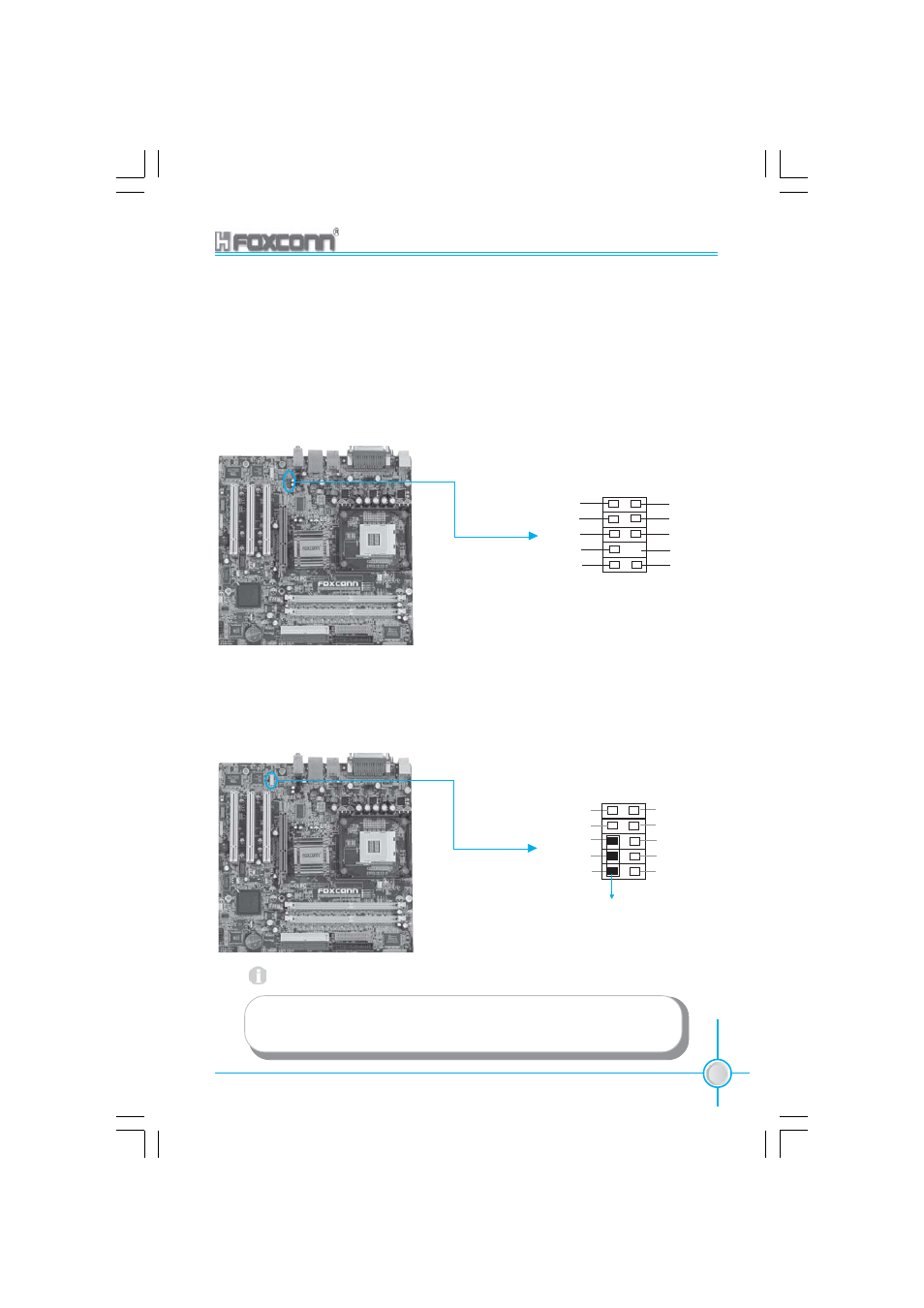

Audio Interface: FP-AUDIO
The audio interface provides two kinds of audio output choices: the Front Audio,
the Rear Audio. Their priority is sequenced from high to low (Front Audio to Rear
Audio). If headphones are plugged into the front panel of the chassis (using the
Front Audio), then the Speaker Out (Rear Audio) on the rear panel will not work.
If you do not want to use the Front Audio, pin 5 and 6, pin9 and 10 must be short,
and then the signal will be sent to the rear audio port.
Front Audio
Microphone AGND
MIC_VCC A5V
R_OUT FR_OUT
NA Empty
L_OUT FL_OUT
1 2
9 10
SPDIF/6CH_BRACKET
The SPDIF/6CH_BRACKET output is capable of providing digital or 6 channel
audio to external speakers, or compressed AC3 data to an external Dolby digital
decoder. The motherboard is equipped with one bracket.
6CH_BRACKET
1 2
9 10
SPDIF CABLE
NA
AGND
LEFOUT
SR_OUT
VCC SPDIF_OUT
CEN_OUT
SL_OUT
SPDIF_IN
GND
Attention:
The empty pin of the SPDIF cable should be aligned to pin 9 on
the SPDIF/6CH_BRACKET.
