Limitorque QX Electronic Actuator FCD LMENIM3314-00 – 5/11

56

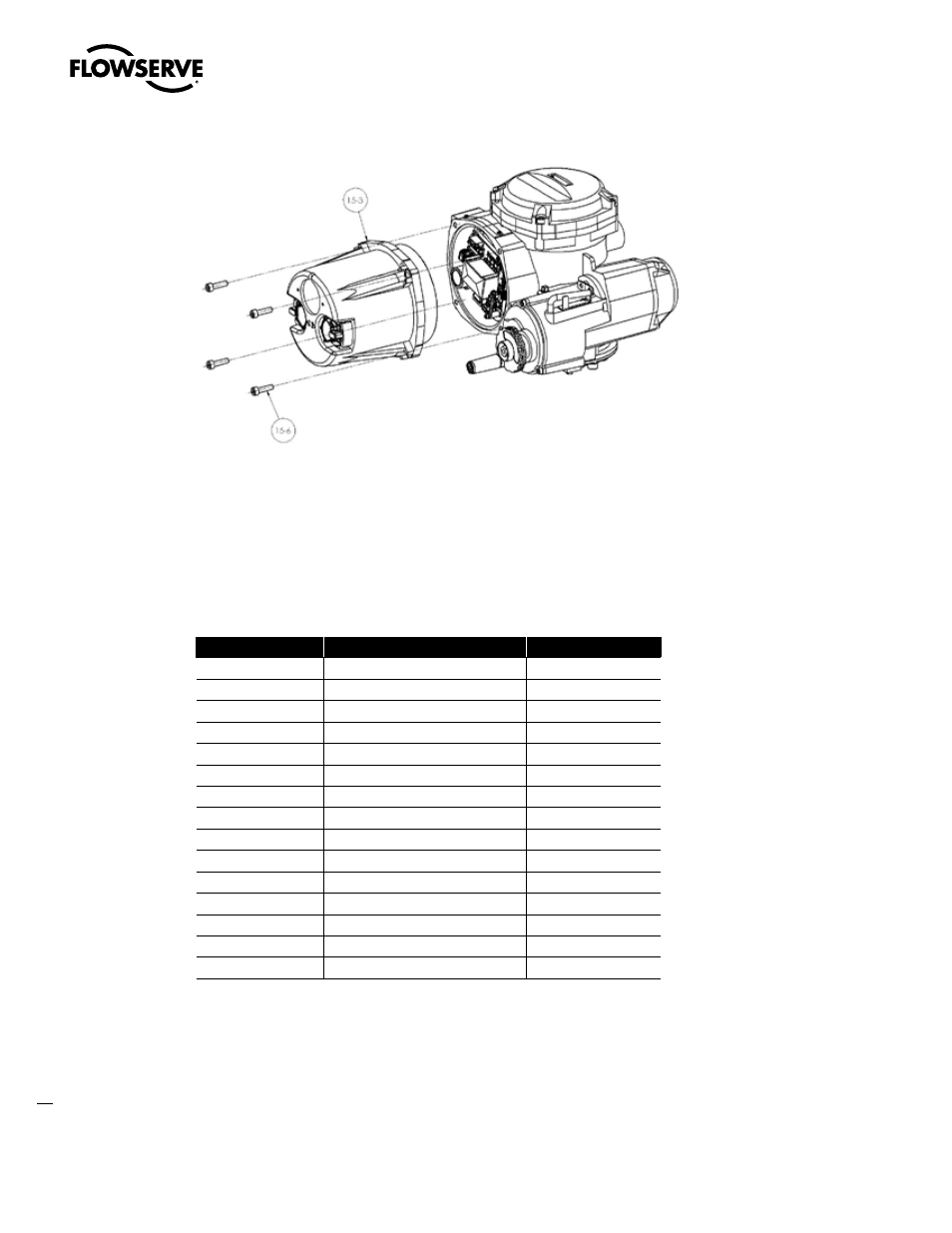

Figure 6.3 - Controls Cover Assembly

6.2.1 Controls Cover Removal

Step 1

Using a M6 hex key, remove the four M8 screws (#15-6) that mount the Controls cover subassembly and remove
cover (#15-3).

NOTE: When removing cover take care not to pull on cables that connect to the controls cover main board.

Table 6.4 - Controls Cover Subassembly

ITEM NUMBER

DESCRIPTION

QTY.

1-49

SHIELD, MAIN BOARD

1

7-2

O'-RING

1

7-3

BLACK KNOB

1

7-4

RED KNOB

1

7-6

SELF TAPPING SCREW

2

7-7

BLACK KNOB CAP

1

7-12

TORSION SPRING

1

7-14

RED KNOB CAP

1

7-17

CONTROLS COVER

1

7-18

WINDOW

1

7-19

O'-RING RETAINER

1

7-20

RETAINING RING

1

7-21

O'-RING

1

7-44

PAN HEAD MACHINE SCREW

4

8-24

PC BOARD, MAIN

1
