Flowserve PSS III Durametallic User Manual
Page 8
8
1.02 - 1.52 mm
(0.040 - 0.060 inch)
5.3 Put one dot of adhesive near the
outer corner. See Figure 11.
5.4 Put one dot of adhesive near the
inner corner.
5.5 Place the split joint gasket in the
groove and position it as shown in
Figure 12. Hold it in place for 10
seconds. The split joint gaskets
should be positioned flush with
the groove surfaces as indicated.
5.6 Coat a seal drive cap screw
with anti-seize and install it
through the clearance hole until
it protrudes 1.02 to 1.52 mm
(0.040 to 0.60 inch) past the
seal drive joint. See Figure 13.
5.7 Repeat this procedure for the
other seal drive half
.

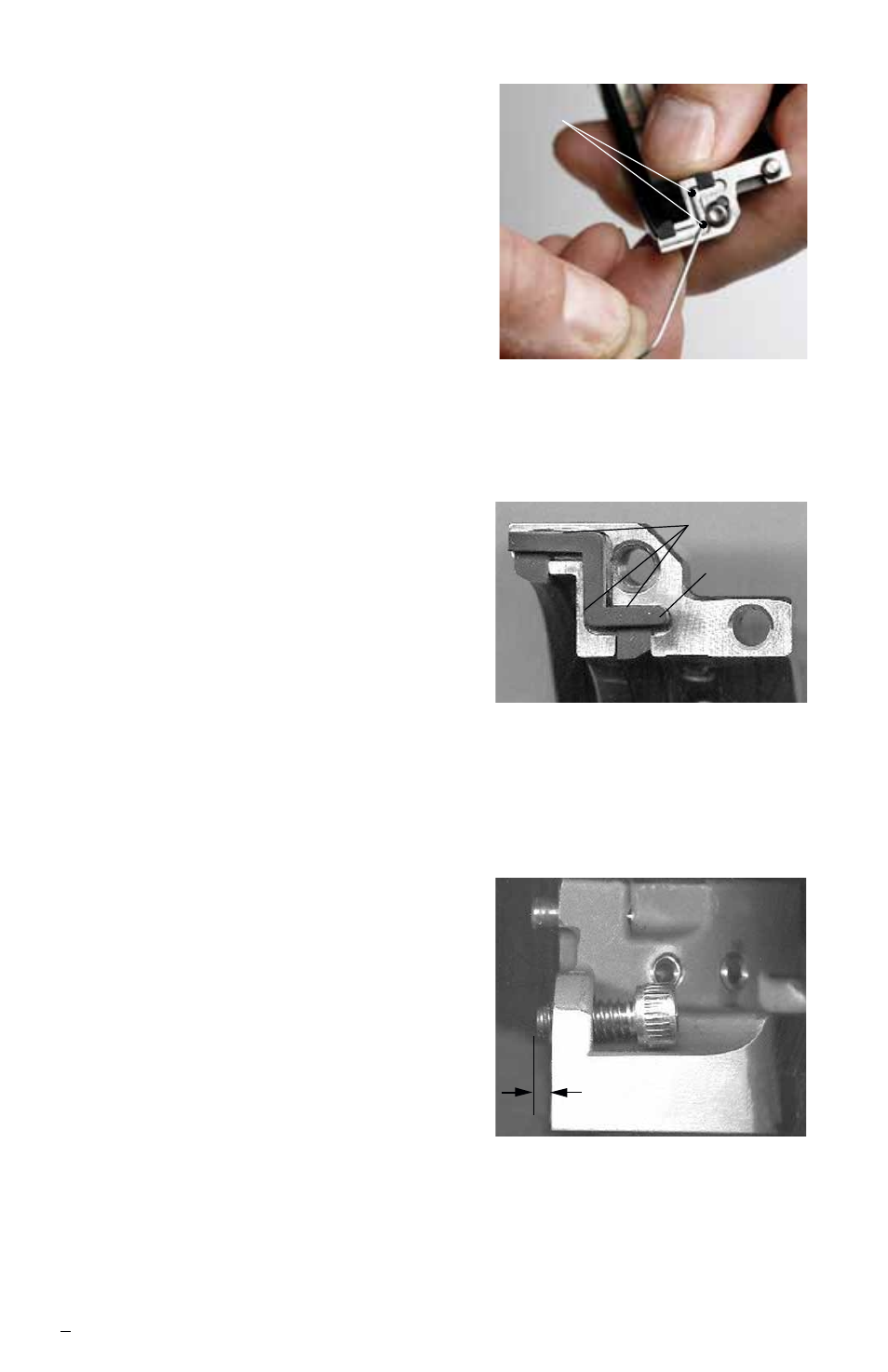

Figure 11
Figure 12
Split Joint
Gasket
Flush
Figure 13
Adhesive
dots
here
