CALL TOLL-FREE 1-800-DR-OWNER 33
Removing the Stone Guard Flap - SPRINT
®
, PRO, and COMMERCIAL
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
NOTE: We turned the Trimmer on its side to take the
photos in this section. To do so, we removed
gas and oil from the machine. You can
access the underside of the Trimmer without
having to drain gas and oil by tilting back on
its handlebar.
Tool Needed:
•
3/8" Wrench or Socket

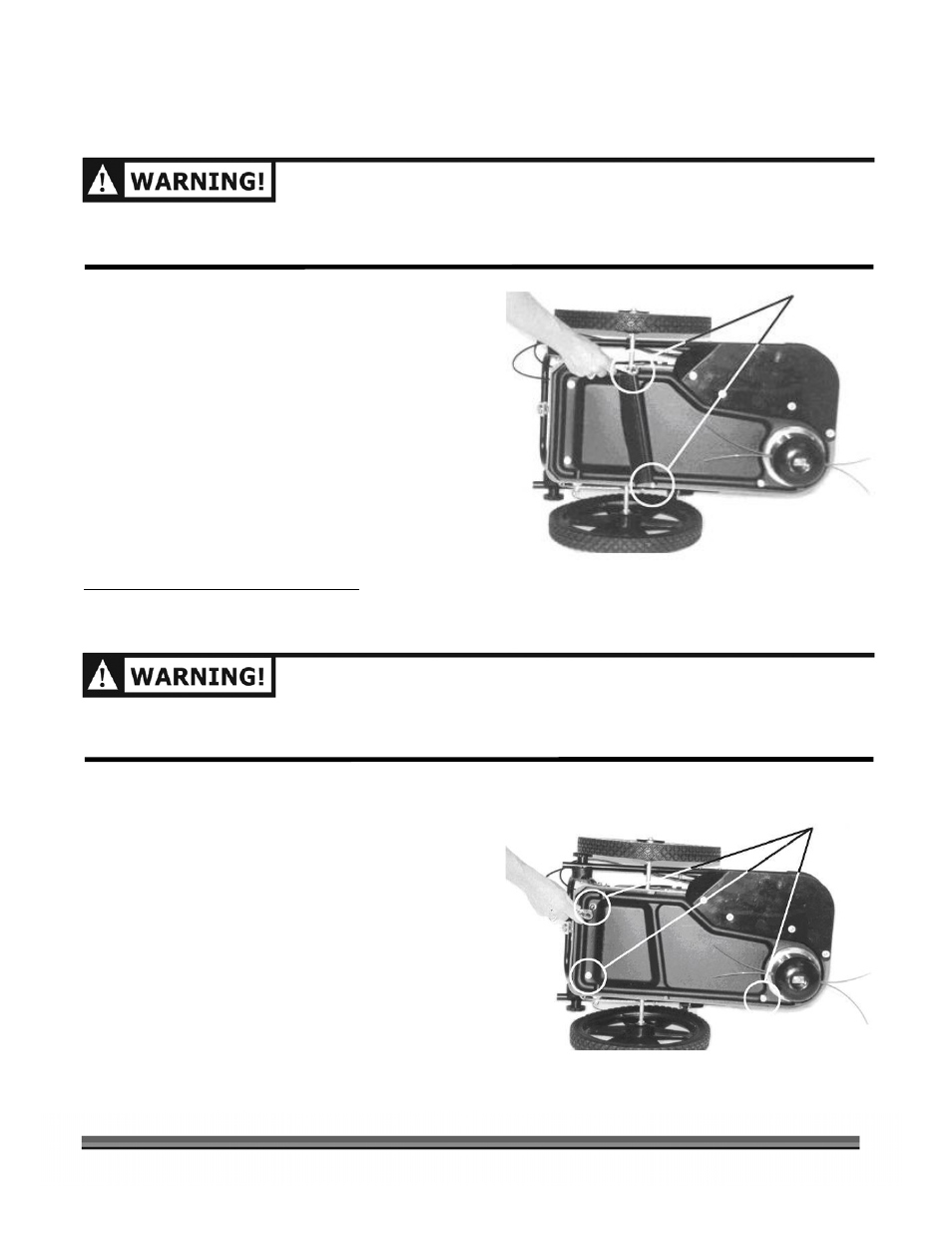

Remove the screws on either side of the Stone
Guard and drop it from the Frame (Figure 22).
Tip: Keep the screws together with the stone guard.
Removing and Replacing Section:
Bottom Shield - SPRINT
®
, PRO, and COMMERCIAL
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
NOTE: You do not need to remove the side shield or
any of its hardware when removing the
bottom shield.
Tool Needed:
•
7/16" Wrench or Socket
1. Remove the Mow-Ball™ Support Assembly.
See “Removing the Mow-Ball™ Support
Assembly” on page 31.
2. Remove the Stone Guard Flap. See “Removing
the Stone Guard Flap” above.
3. Remove the two (2) mounting Bolts and
Washers at the rear of the Frame (Figure 23).
Figure 22
Figure 23
Remove Screws
Remove Screws
