5

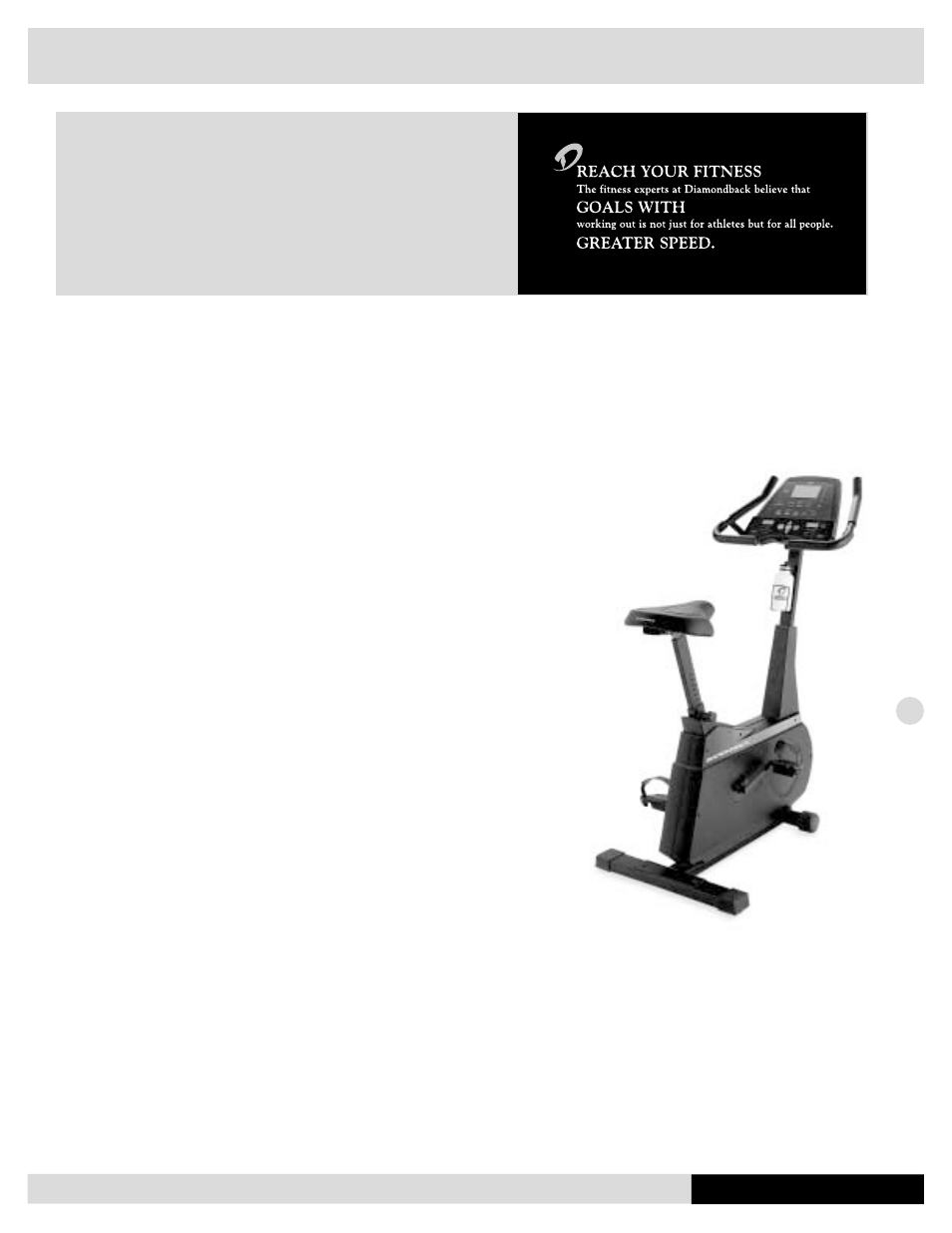

Frame Assembly
1. Unscrew two M8 x 20mm bolts from the rear stabilizer bar.
2. Place rear stabilizer bar under rear main frame body and align screw holes.
3. Insert and tighten the two M8 x 20mm screws using a 5mm Allen wrench.
4. Install seatpost by sliding it into seatpost receptor.
Console Mast Assembly
1. Install console mast adapter/cover onto console mast.
2. Insert the main wire harness into the bottom opening of the console mast tube.
Push the harness up the tube until the connector of the harness appears in the
opening at the top of the tube.
WIRING HARNESS INSTALLATION TIP:
Straighten the loops of the wiring harness so that it can slide smoothly into the
console mast. Hold the bottom of the console mast next to the console mast re-
ceptor and point the top of the console mast downward.
3. Install the console mast by sliding it into the console mast receptor while pulling the
wire harness. This will keep the slack out of the harness so the wires will not get
pinched and short out. Insert and tighten two M8 x 40mm screws and washers
using a 5mm Allen wrench.
4. Snap console mast adapter/cover into top of sidecase.
Handlebar
1. Assemble the handlebar onto the mount and insert and tighten the four M8 x 13mm
screws using a 5mm Allen wrench.
Console Assembly
1. Connect the main wiring harness plug to the plug receptor on the backside of the
console taking care to install correctly (see plug alignment marks). WIRING HAR-
NESS INSTALLATION HINT: Any excess wiring must be carefully inserted (“stored”)
back into the console mast before installing the console onto the console mounting
plate.
2. Fasten the console to the console mounting plate with the four M5 x 12mm screws
and washers using a Phillips screwdriver.
Saddle Assembly
1. Assemble saddle onto seatpost.
2. Tighten the affixing nut and washer using a 17mm open-end wrench. SADDLE
ANGLE ADJUSTMENT HINT: Hold the rear of saddle in the optimum comfort posi-
tion and tighten the nut at the same time.
Pedals
1. Use a 15mm open-end wrench to firmly affix the pedals to the cranks.
2. The left and right pedals are different and are denoted as right or left on the bottom
of each pedal. NOTE: Left pedal threads counter-clockwise.
Waterbottle
1. Place the bottle holder on the console mast. Insert and tighten the two M5 x 12mm
screws using a screwdriver.
2. Snap the waterbottle into the bottle holder.
1100U Assembly Instructions
