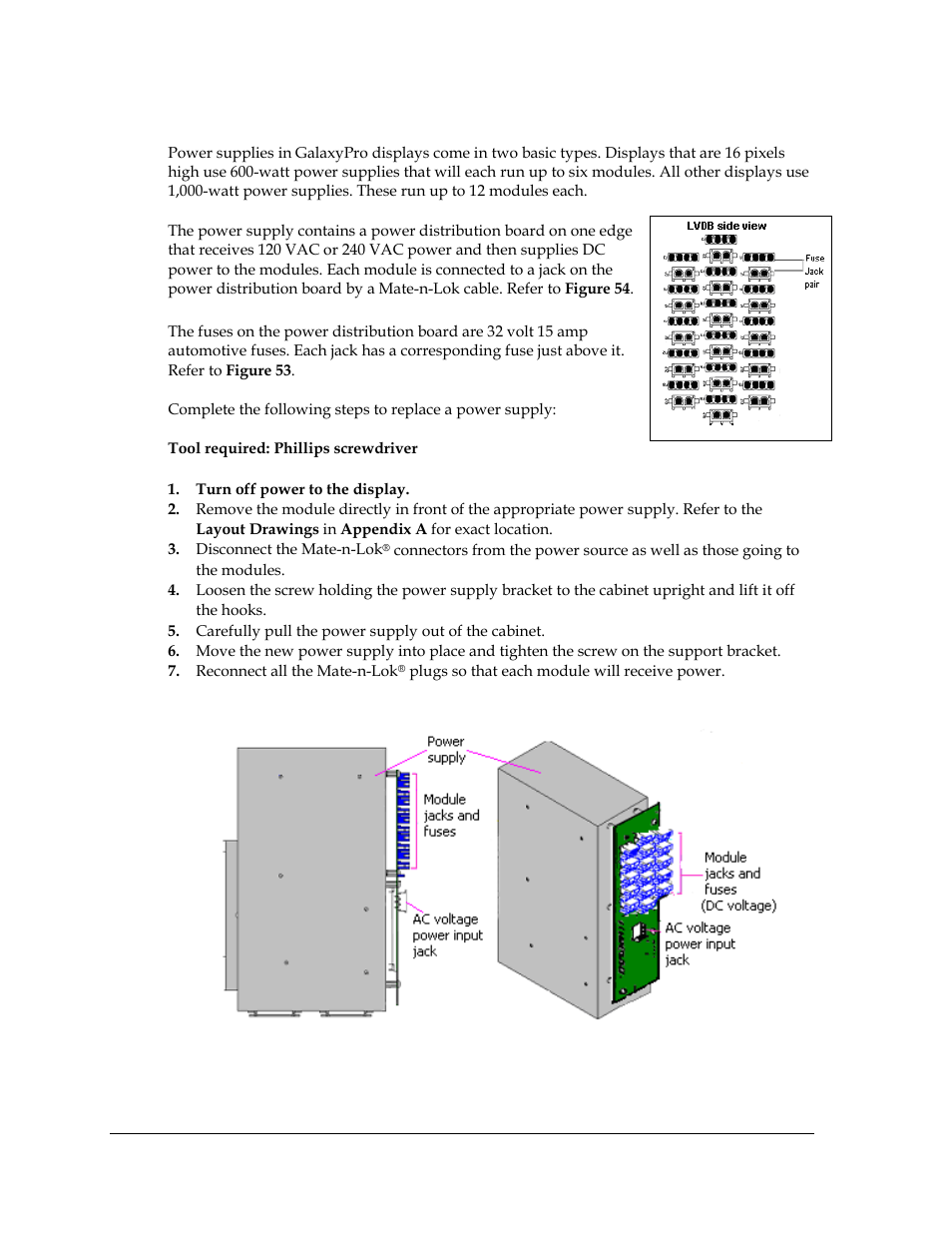

Power supply replacement, Figure 53: jacks and fuses on rgb power supply – Daktronics AF-3700-20 RGB User Manual
Page 50
