4 grounding, Grounding, Figure 14: correct grounding of display – Daktronics AF-3700-20 RGB User Manual

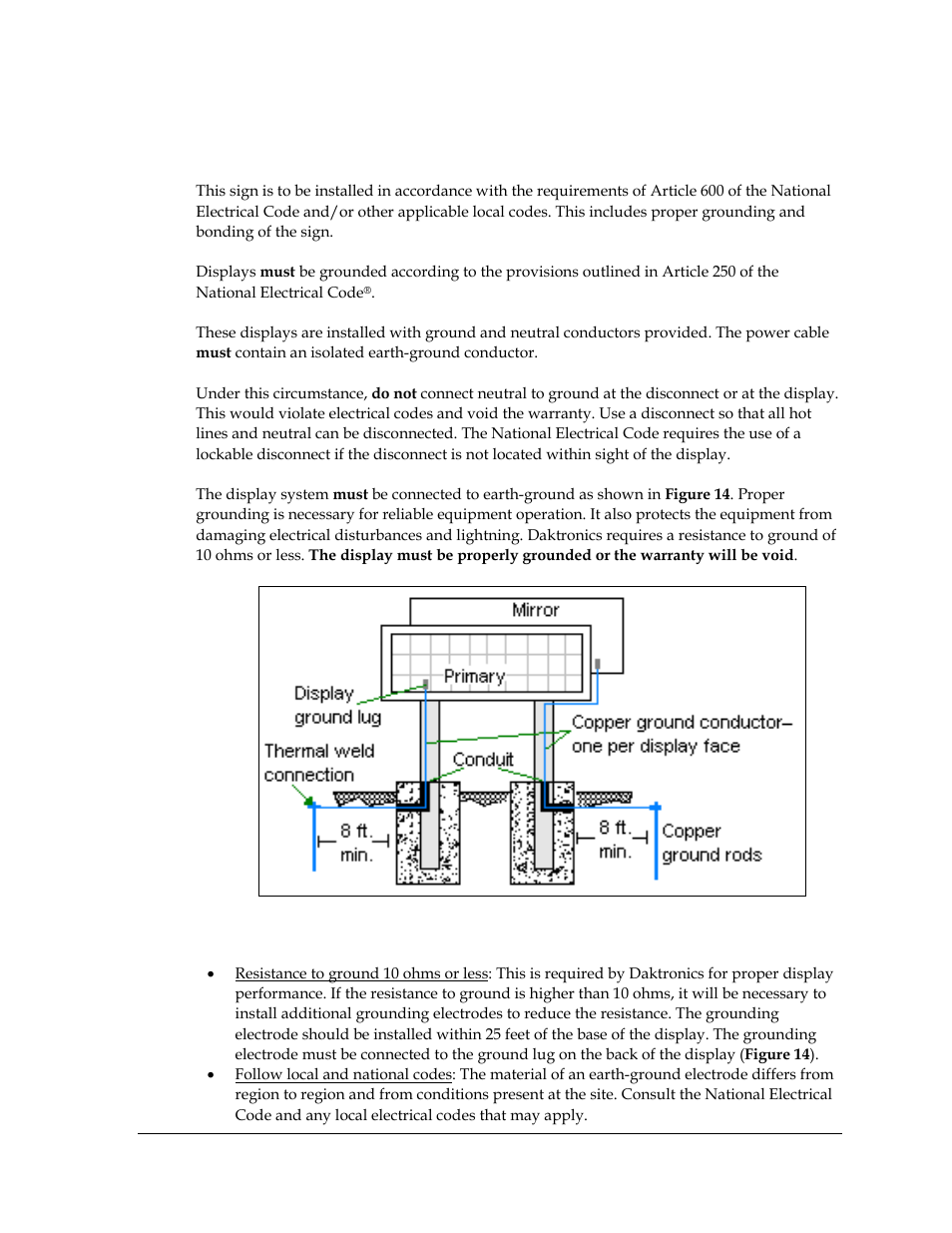

Page 21
