Section 7: diagnostics and troubleshooting, 1 controller diagnostics, 2 troubleshooting display problems – Daktronics Galaxy AF-3220 User Manual

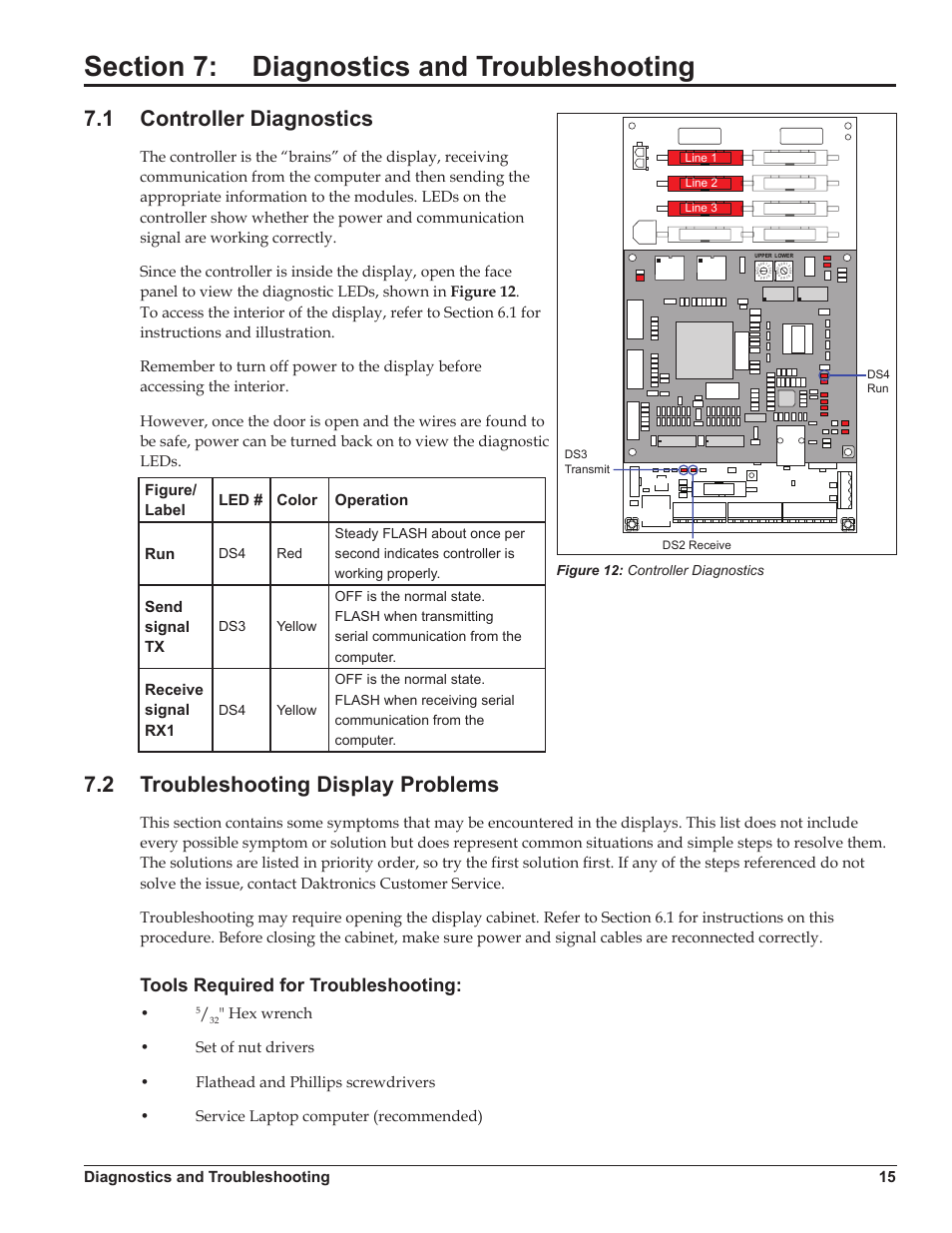

Page 19: Tools required for troubleshooting, Section 7, Diagnostics and troubleshooting, Controller diagnostics, Troubleshooting display problems, Diagnostics and troubleshooting 15, Figure/ label led # color operation run
Section 7: diagnostics and troubleshooting, 1 controller diagnostics, 2 troubleshooting display problems | Tools required for troubleshooting, Section 7, Diagnostics and troubleshooting, Controller diagnostics, Troubleshooting display problems, Diagnostics and troubleshooting 15, Figure/ label led # color operation run | Daktronics Galaxy AF-3220 User Manual | Page 19 / 35 This manual is related to the following products:
