Redundant System Installation
CST-5000 C-Band Satellite Terminal
3–6
Rev. 9
2

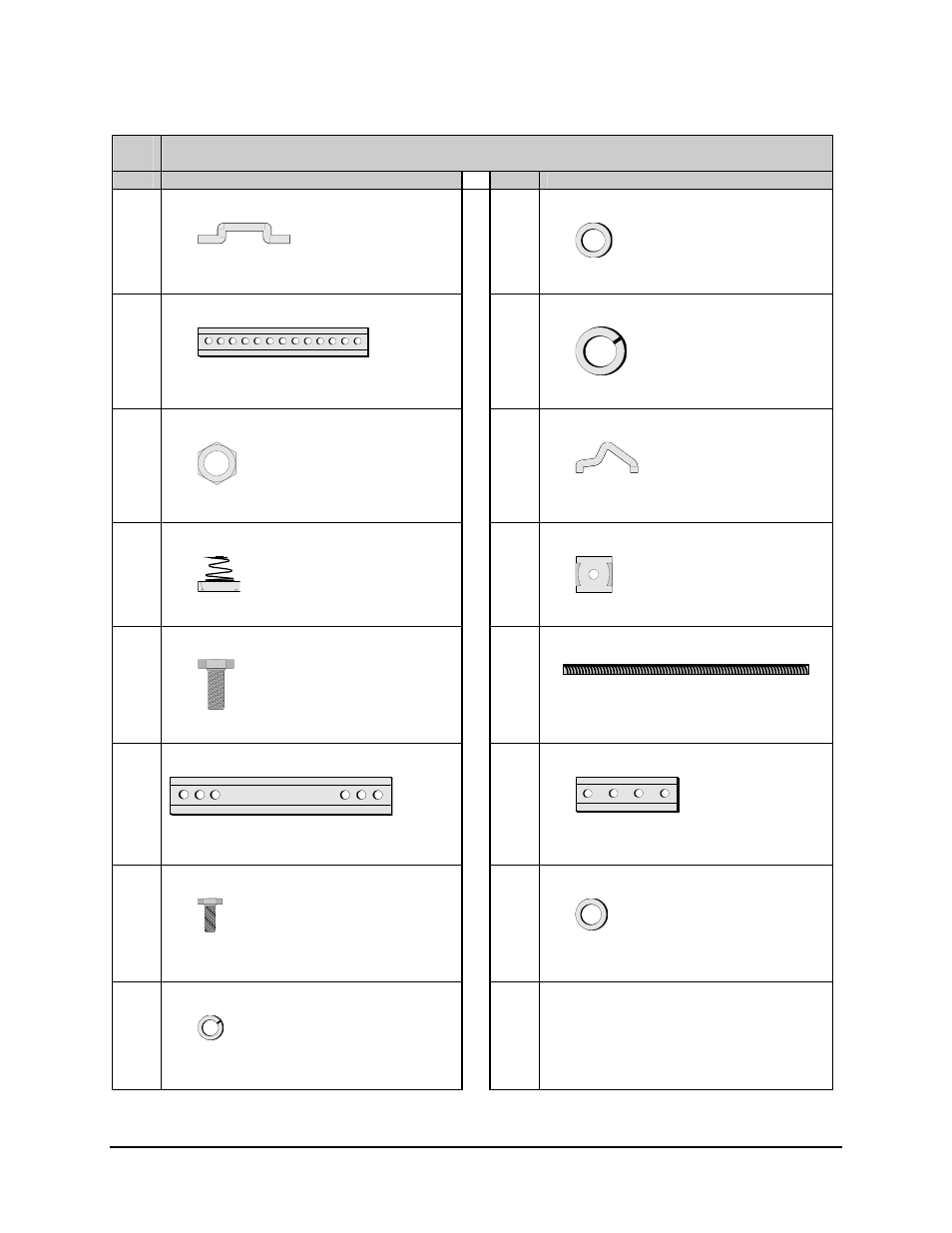

Kit KT/3577, which includes:
Qty.
Description
Qty.
Description
3
Spar support bracket.
EFData Part # FP/3175.
Used for spar mount only.
42
5/16 inch (8 mm) flat washer.
EFData Part # HW/5/16-FLT.
4
Unistrut — 14 inches (35.6 cm) long.
EFData Part # FP/3595.
Used for round and square pole mount only.
42
5/16 inch (8 mm) split lockwasher.
EFData Part # HW/5/16-SPLIT.
18
5/16-18 hex nut.
EFData Part # HW/5/16-18HEXNT.
12 Pipe
block.
EFData Part # HW/BLK-PIPE2-8.
Used for round pole mount only.
30
5/16-18 spring nut.
EFData Part # HW/5/16-18SPNUT.
12
Flat fitting plate, 5/16 inch (8 mm).
EFData Part # HW/FIT-PLT-5/16.
28
5/16-18 x 1 inch (25 mm) bolt.
EFData Part # HW/5/16-18X1BLT.
6
Threaded rod, 5/16-18 x 14 inch (35.6 cm).
EFData Part # HW/RD5/16-18X14.
Used for round and square pole mount only.
2
Unistrut, modified, 20 inches (51 cm) long.
EFData Part #FP/3482.
Used for round and square pole mount only.
4
Unistrut — 8 inches (20.3 cm) long.
EFData Part # FP/3481.
Attaches directly to RFTs.
19
1/4-20 x 5/8 inch (16 mm) bolt.
EFData Part # HW/1/4-20X5/8BT.
Used to attach short unistruts to RFTs.
19
1/4 inch (6 mm) flat washer.
EFData Part # HW/1/4-FLT.
Used to attach short unistruts to RFT.
19
1/4 inch (6 mm) split lockwasher.
EFData Part # HW/1/4-SPLIT.
Used to attach short unistruts to RFT.
