CST-5000 C-Band Satellite Terminal Redundant System Installation
Rev. 9 3–5

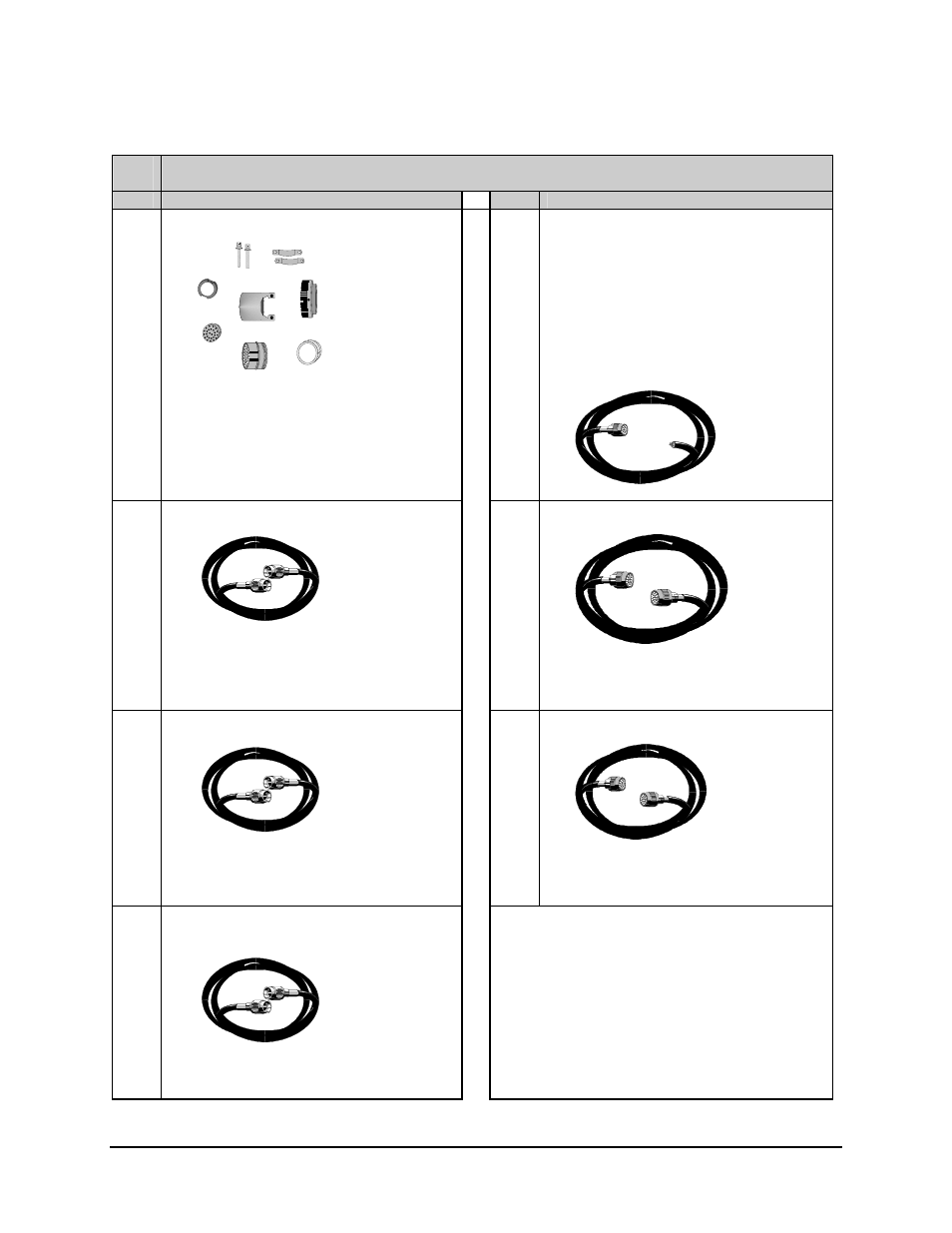

1 Kit KT/3107-x (where x = 1 for AC power, and 2 for DC power), which includes:
Qty. Description Qty. Description
1 Connector kit.
EFData Part # CN/STPG26M01.
Used to connect customer’s cable to the RFT 26-
pin J6 (REMOTE), for remote control and status
monitoring (by using M&C system monitor
software).
2 Note: Either the AC or DC cable is provided,
depending upon the product ordering code.
Assembly, 15 foot (4.57 m) AC prime power
cable.
EFData Part # PL/2754.
Assembly, 15 foot (4.57 m) DC prime power
cable.
EFData Part # PL/4157.
3 17 foot (5.2 m) .50 (13 mm) Heliax, LDF4-50A.
EFData Part # CA/1530.
Used for RF input and output.
2 4 foot (1.2 m) Cable Assy.
EFData Part # PL/3003.
Used for communications from RFTs A and B to
RSU.
4 4 foot (1.2 m) Cable Assy., 50 Ω.
EFData Part # CA/3005-1.
IF TX and RX cables from RFT to RSU.
1 17 foot (5.2 m) RSU-503 to redundant LNA plate.
EFData Part # PL/3006.
Communications from RSU to redundant LNA
plate.
2 3 foot (.91 m) Cable, N-Male, LDF4-50A, Heliax
C-Band.
EFData Part # CA/3230-1
Used for RF transmit cables to the RFTs.
