Fast Ethernet Switching System User’s Guide
Managing the DES-5016 59
Switch Port Configuration Menu
The Switch Port Configuration menu, displayed in Figure 31, enables you to change the
configurations of individual ports.

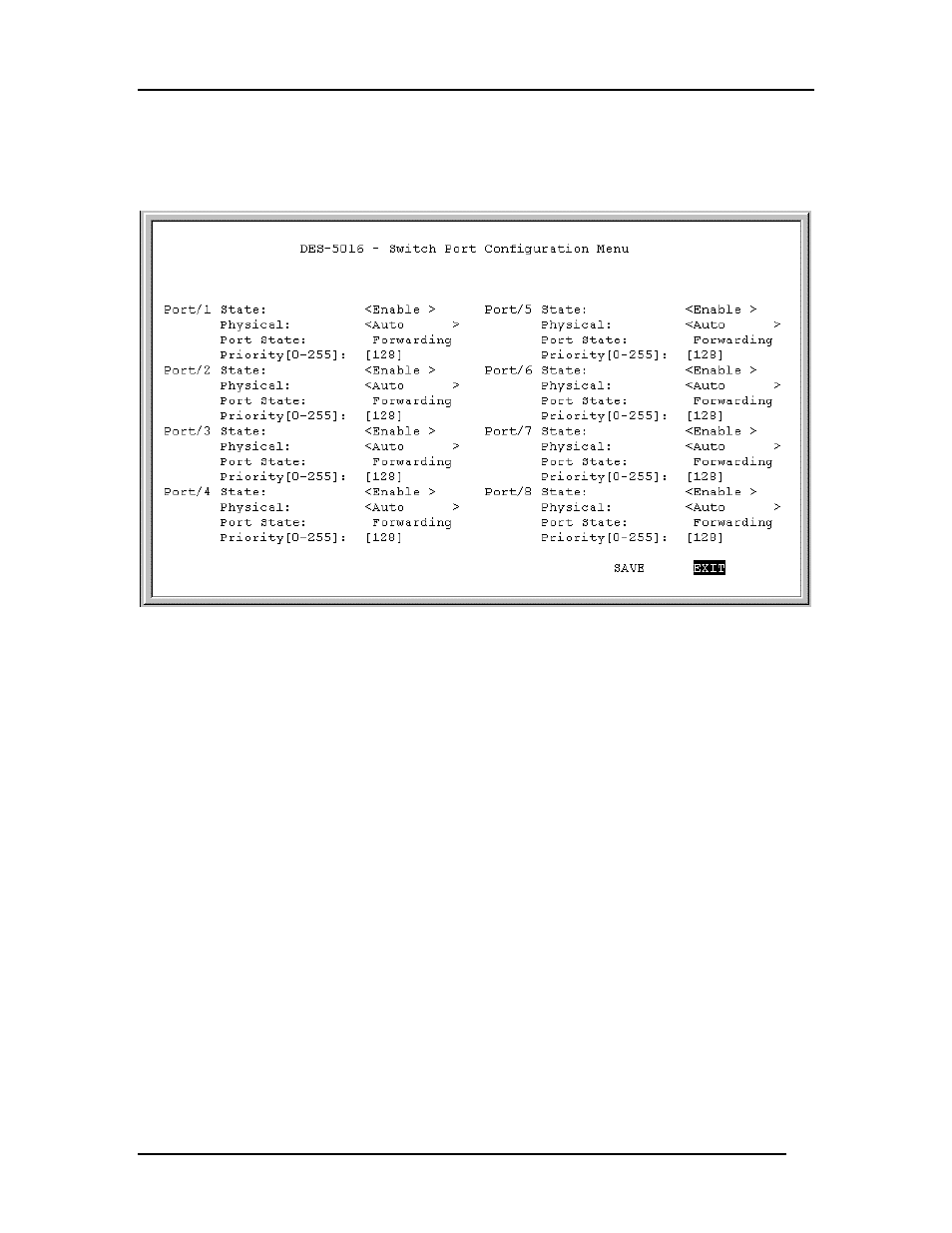

Figure 36: Switch Port Configuration
State
All ports have two states: enabled or disabled. Enabled ports transmit and receive data
packets. Disabled ports can not transmit or receive packets. You can disable a port but
you will not be able to use a disabled port.
Physical
Refers to the physical state of the port. If you manually change the state of a port it will
remain in that state until you change it. It will not auto negotiate speed and duplex mode.
All TX ports can be in the following physical states:
•
Auto
•
100Tx/Half
•
100Tx/Full
•
10Tx/Half
•
10Tx/Full
Ports in the Auto state automatically negotiate speed and duplex mode. This is the default
setting.
Ports set in the 100Tx/Half physical state are set to work at 100 Mbps half duplex.
