36
STEERING CONTROL ADJUSTMENTS (continued):
CARE AND MAINTENANCE

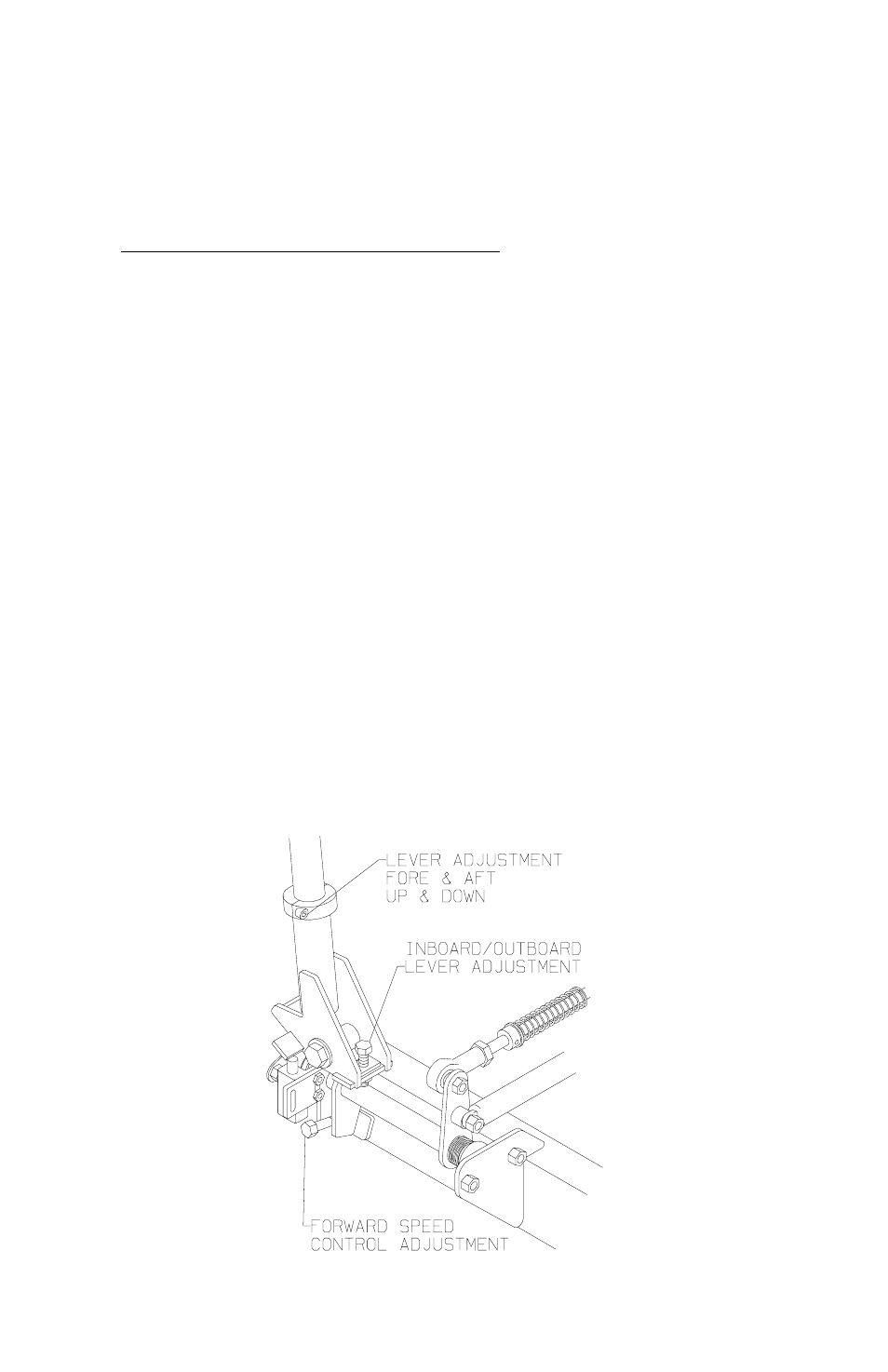

To adjust steering control levers:
1. Loosen the front and rear bolts retaining the
bellows hold down plate and slide the bellows
and plate up the steering lever to expose the
steering control mechanism.
2. Move the levers inboard to the operating
position.
3. Loosen the set screw of the clamp collars which
lock the upper arms to the lower arms.
4. Raise or lower the arms for desired height. There
is approximately 3” of height adjustment available.
Upper shaft should have a minimum of 1-1/2”
engagement in lower shaft.
5. Rotate arms until they have the desired
orientation front to back.
6. Tighten the clamp collar set screws.
