5.5 Split mode
The model displays 4/8 live images in the sequence of single, 4-split and 9-split modes.
If you enter into 4-split mode, the live images will be displayed in turn CH1~4, CH5~8…and CH13~16.
If you enter into 9-split mode, the live images will be displayed in turn CH1~9 CH10~16.
5.6 PTZ Control
We introduced setting PTZ parameters previously in section 5.3.6.2 – PTZ Set. Here we will discuss how
to operate PTZ controls.
Click the [ ] icon to enter into [PTZ control] menu shown as Picture5-54. Now user can control the
camera with Pan, Tilt and Zoom capabilities.
Click [Zoom-/+] button to zoom in / out the image; Click [Focus -/+] button to focus the image; Click [Iris
-/+] button adjust iris to open or close.
Cruise Set
Open auto cruise function on PTZ setting menu if you want to setup cruise function (system default: off),
and set up cruise channel, cur point and total quantity and stop time etc.
How to set pre-set point
Total: set up pre-set point quantity
Cur Point: indicates starting point cruised. System default point is 01. The model support up to 255 pre-set
points.
Stop time: sets the stop time at each point
GOTO: allow you go to a specific preset point.
Set: allow you set a set of specific preset points of a PTZ camera.
1. Select a camera you desire to set a preset point;
2. Adjust the camera in a desired direction;
3. Click [Set] to set the point as preset point;
4. Click [Save] to save the preset point;
5. Follow the above step to add one more preset point.
Save: save all the preset points
Clean: allow you delete one selected preset point.
Note: Up to 254pre-sets per one camera can be stored. However, actual preset quantity differs depending
on PTZ performance.

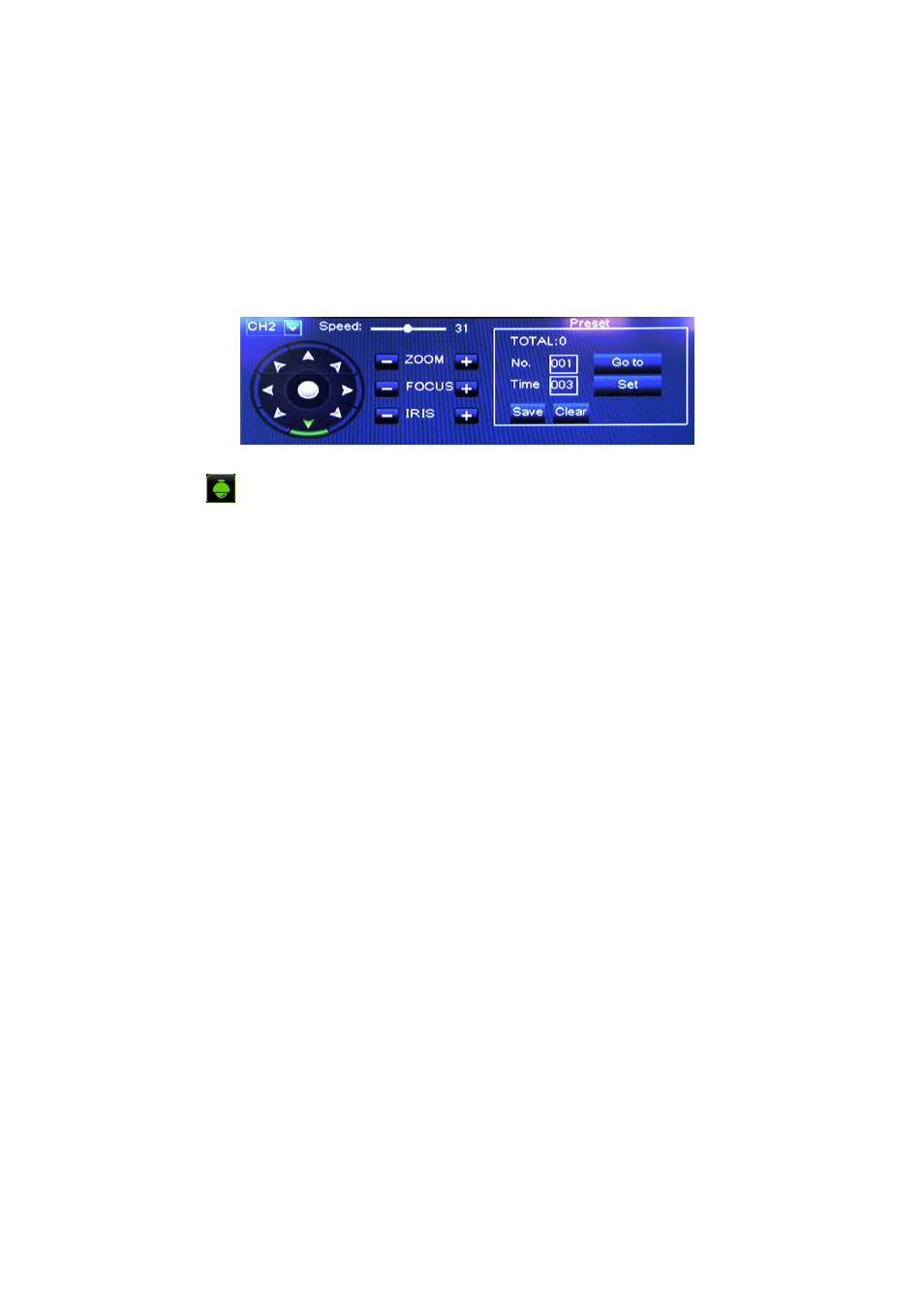

Picture 5-54
