Bolide SVR9000D User Manual
Page 11
User Manual
10
2.2.3、

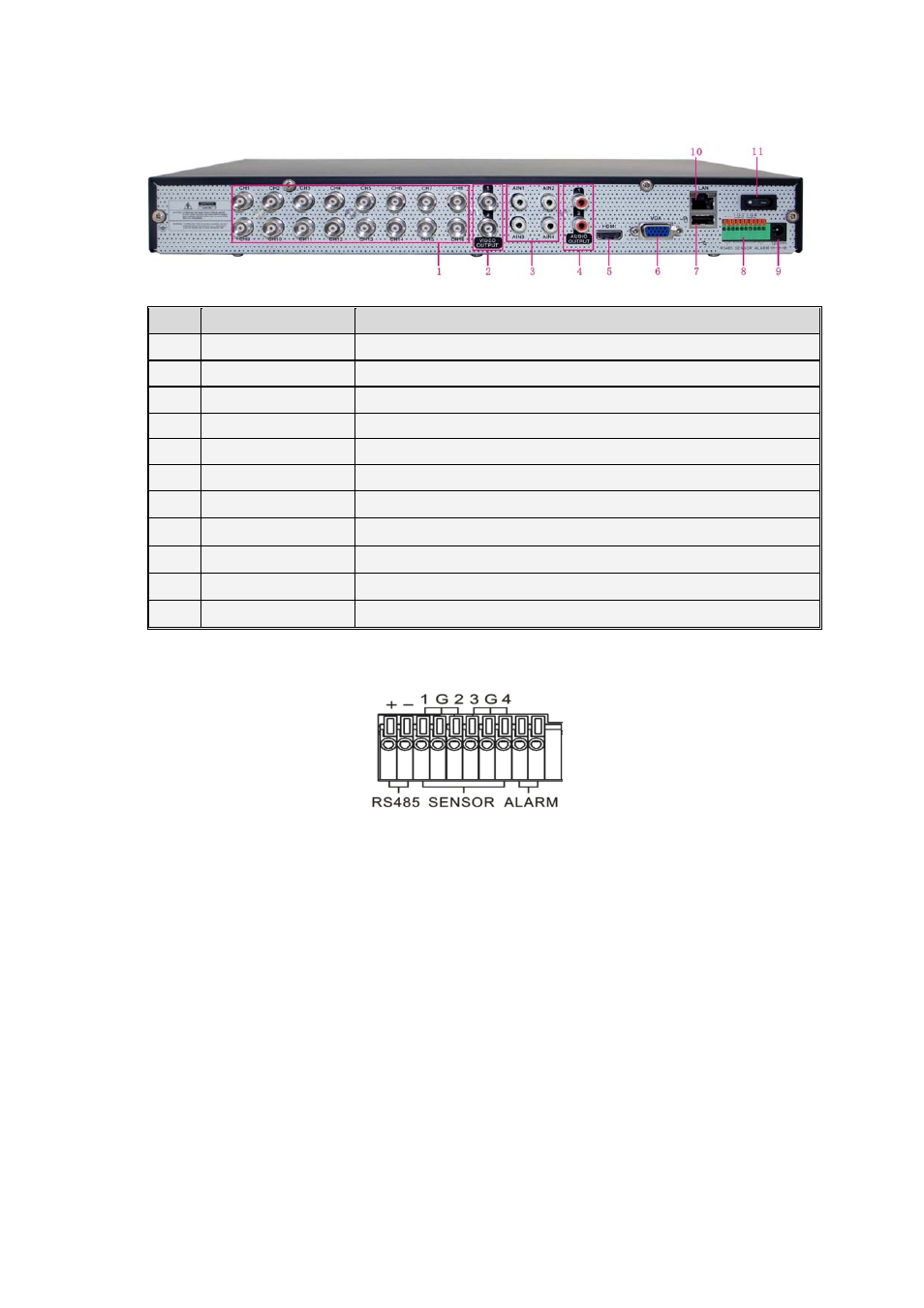

SVR9000D/T16 DVR Back Panel
Item
Physical port
Connection method
1
Video input
Connect CH1-16 (Virtual) video input（BNC interface）
2
Video output
Connect monitor output(BNC interface)
3
Audio input
Connect CH1-4 audio signal input (BNC interface)
4
Audio output
2CH output; BNC (interface）
5
HDMI
HDMI Output
6
VGA Port
Connect to VGA monitor, such as PC monitor
7
USB Port
Connect USB mouse
8
RS-485/Sensor/Alarm RS485/Sensor/Alarm interface (see pin outs below)
9
Power Port
Connect power supply - DC12V 5A
10
Ethernet: Port
Connect LAN, Ethernet (RJ45 interface)
11
Power Switch
Turn Power on and off
RS485/Sensor/Alarm port functions:
Alarm input: Connect [-] port of your sensor to G (GND) pin, and [+] port to channel input according to the
alarm device you purchased.
Alarm output: Connect to the two ports marked with “out”
PTZ Port：Connect your camera to RS-485A and RS485B accordingly.
