User Manual
10

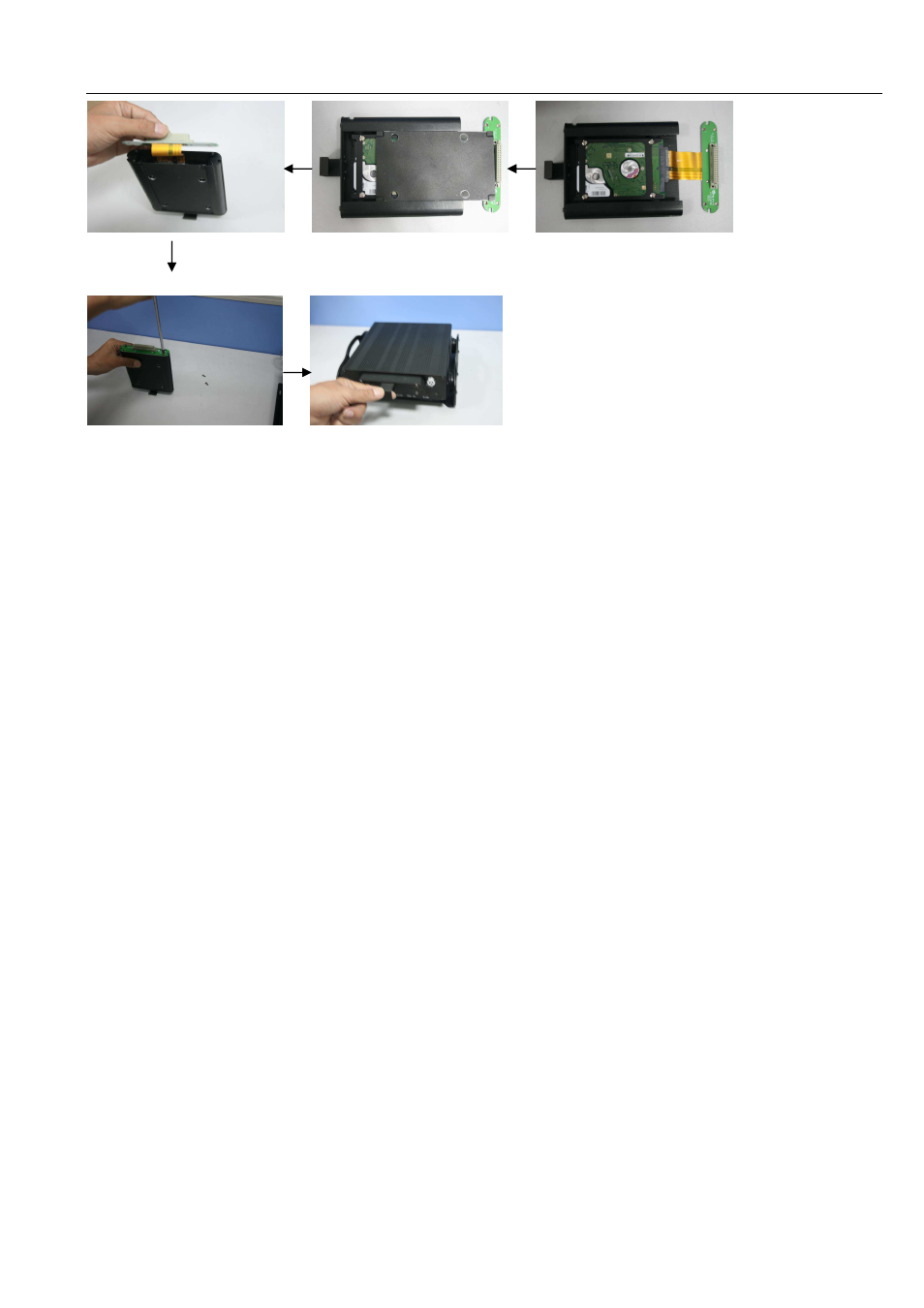

3.3 Connecting Power Supply
The 6-pin plug will be connected to power supply jack of rear panel. Red and black wires connected to car
battery + and – respectively, yellow wire to ignition wire.
Reminder:
1. MDVR use DC power supply, please connect it properly;
2. Working voltage range for MDVR is from 9V to 32V. Too high or low voltage make DVR not work
normally.
3. Power cable must be enough thick so that it can bear 5A current.
3.4 Connecting Camera and Monitor
Connect respectively camera and monitor to the corresponding port on the rear panel shown as section
2.2-Rear Panel.
3.5 Connecting GPS Antenna (Optional)
Connect GPS Antenna to the GPS port on the rear panel shown as section 2.2-Rear Panel. Please make
sure the front of GPS Antenna have no any blockages to avoid affect its signal receive and transmittal
3.6 Connecting 3G Mould Antenna (Optional)
Connect 3G Mould Antenna to the Cellular port on the rear panel shown as section 2.2-Rear Panel.
Please make sure the front of 3G Mould Antenna has no any blockages to avoid affect its signal receive and
transmittal.
3.7 Getting Started
After connecting all the DVR accessories well, you can start DVR using key.
