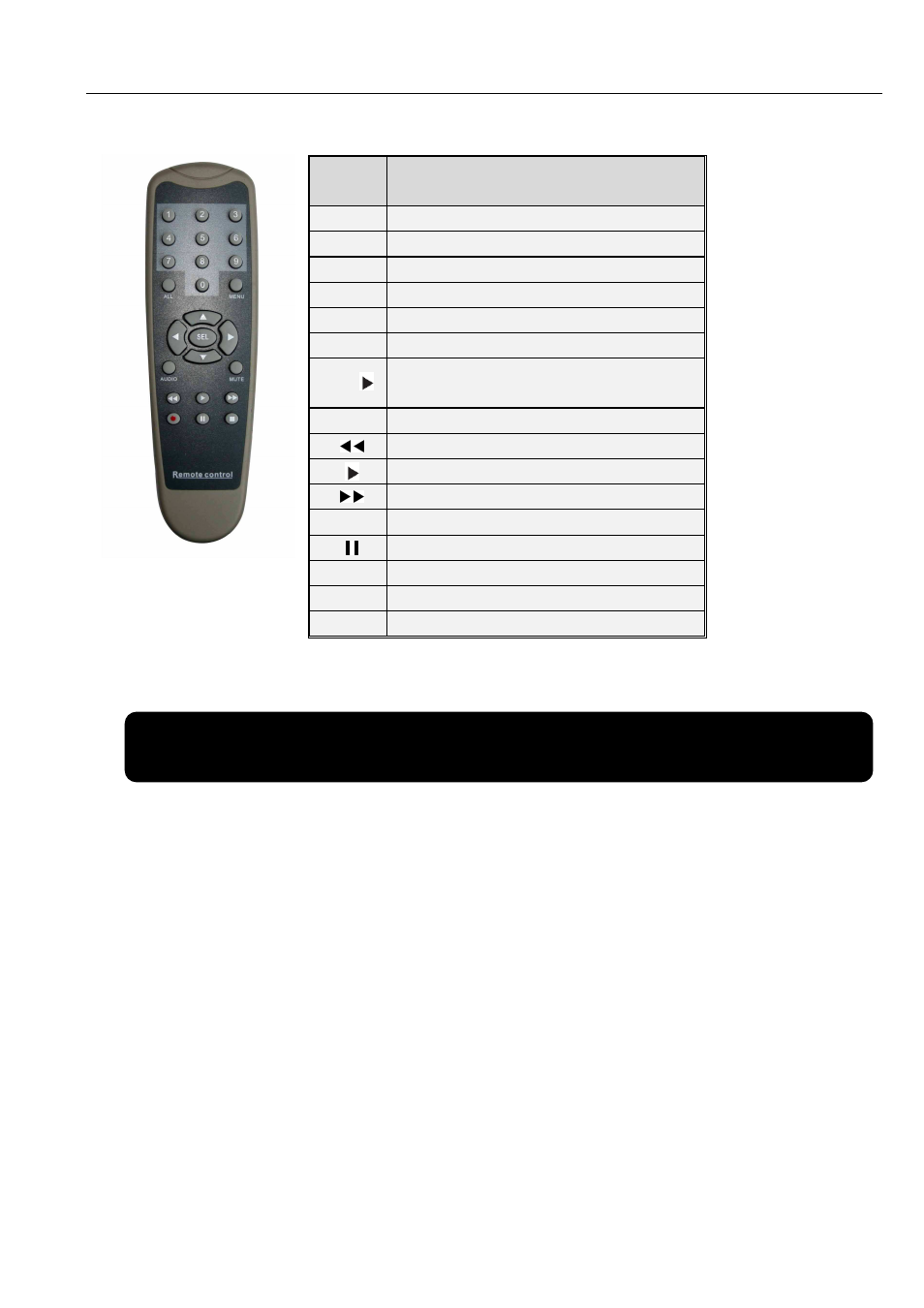

2.4 Remote Controller
Chapter3 Connecting MDVR
3.1 The device installation
Installation mode for the device includes horizontal installation and rack installation.
1. Horizontal installation: Place the equipment on a stable installation surface horizontally, and then tighten
it to the surface through four screws.
2. Rack installation: When limited space lead the equipment to not install horizontally, user can adapt
rack installation to mount on the side and wall of car.
Depart the device from anti-vibration rack before installing,
And then please follow the below steps to install the device:
1. Loosen three screws on the front panel
Key Key Key Key
title title title title
Key Function Key Function Key Function Key Function
1-4 Channel select CH1~CH4; numeric key Channel select CH1~CH4; numeric key Channel select CH1~CH4; numeric key Channel select CH1~CH4; numeric key
0、 、 、 、5-9 numeric key numeric key numeric key numeric key
ALL Multiple CH display Multiple CH display Multiple CH display Multiple CH display
Menu Enter Main Menu / Exit Enter Main Menu / Exit Enter Main Menu / Exit Enter Main Menu / Exit
▲ ▲ ▲ ▲ Up direction arrow Up direction arrow Up direction arrow Up direction arrow
▼ Down direction arrow Down direction arrow Down direction arrow Down direction arrow
◄ /
Left/right direction arrow, Left/right direction arrow, Left/right direction arrow, Left/right direction arrow,
Decrease/increase parameter value Decrease/increase parameter value Decrease/increase parameter value Decrease/increase parameter value
SEL Select/Edit key Select/Edit key Select/Edit key Select/Edit key
Rewind key Rewind key Rewind key Rewind key
Search / Play key Search / Play key Search / Play key Search / Play key
Fast Forward Key Fast Forward Key Fast Forward Key Fast Forward Key
● Rec. Key Rec. Key Rec. Key Rec. Key
Pause Key Pause Key Pause Key Pause Key
■ Stop Key Stop Key Stop Key Stop Key
Audio Testing
Mute Testing
