2. Take the device away from the anti-vibration rack.
3. Install anti-vibration rack to vehicle with screws.
4. Fix the device back the anti-vibration rack with previous three screws.
5. Finish the device installation.
3.2 Removeable HDD installation

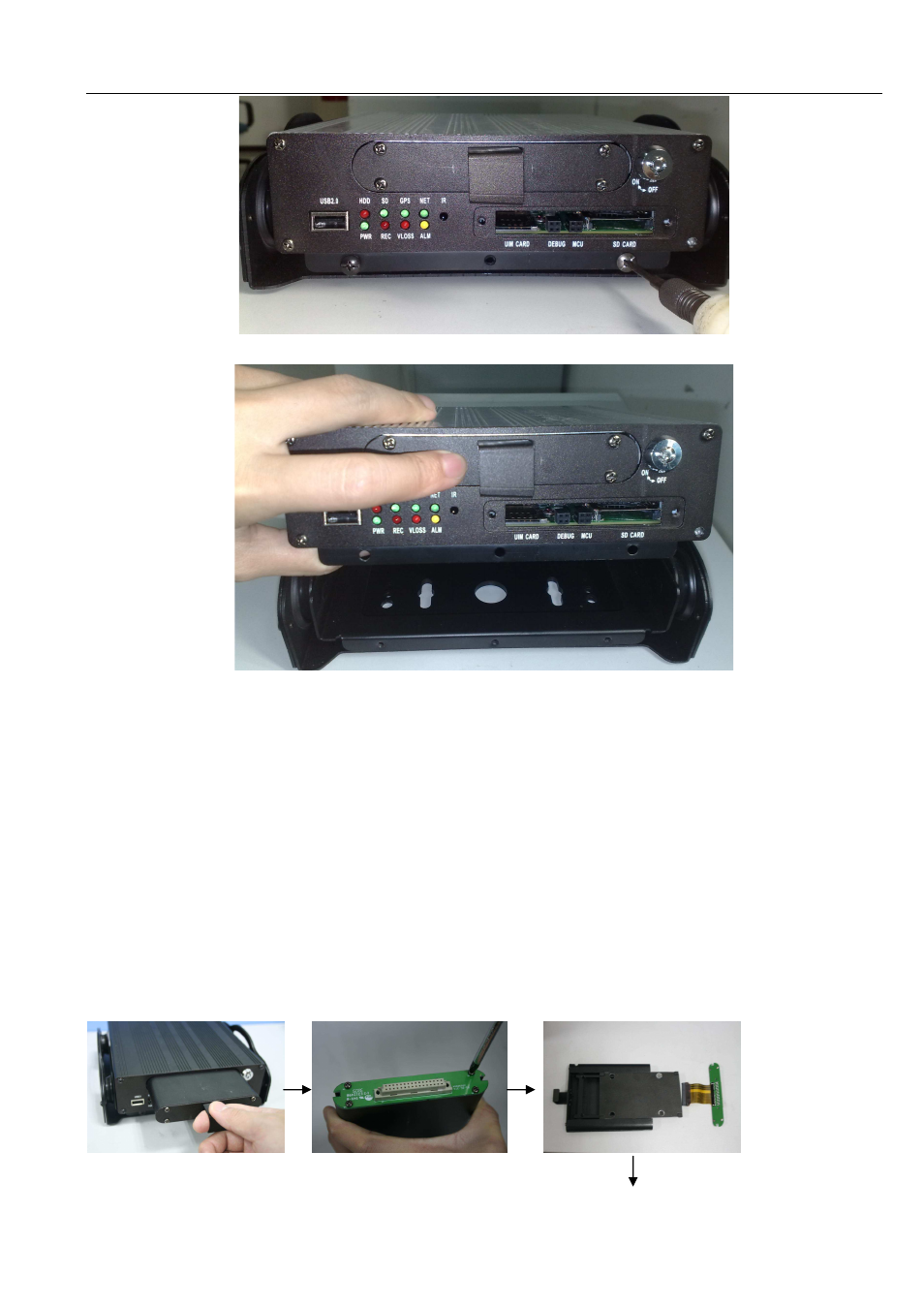

Please follow the below steps to install the HDD:
1. Take out removable HDD from the HDD box;
2. Loosen the screw and remove PCB board;
3. Remove the upper cover of HDD box;
4.
Put the HDD on the anti-vibration rack and connect SATA port of data cable to HDD;
5.
Fix the HDD to the HDD box with screws;
6.
Install the upper cover back HDD box with screws;
7.
Tighten the PCB board back HDD box with screws;
8.
Finish the installation processing.
