1.4.2 Measuring of transponder reading position
This setting programme is used to adjust the reading position of the
transponder in the material clamp.
Operating steps
–
Insert the setting template into the X-guide of the sewing machine.
– Select the setting programme by means of the “ ” or “ ” key.
– Press the “OK” key.
The setting programme is started.
The X and Y axes are moved to the current transponder reading
position.
– To select a direction, press the corresponding key.
“1" key: X position
”2" key: Y position
Example: Change of X direction
– Press key “ á” or “â”.
The position for the reading of the transponder is moved in the
selected direction.

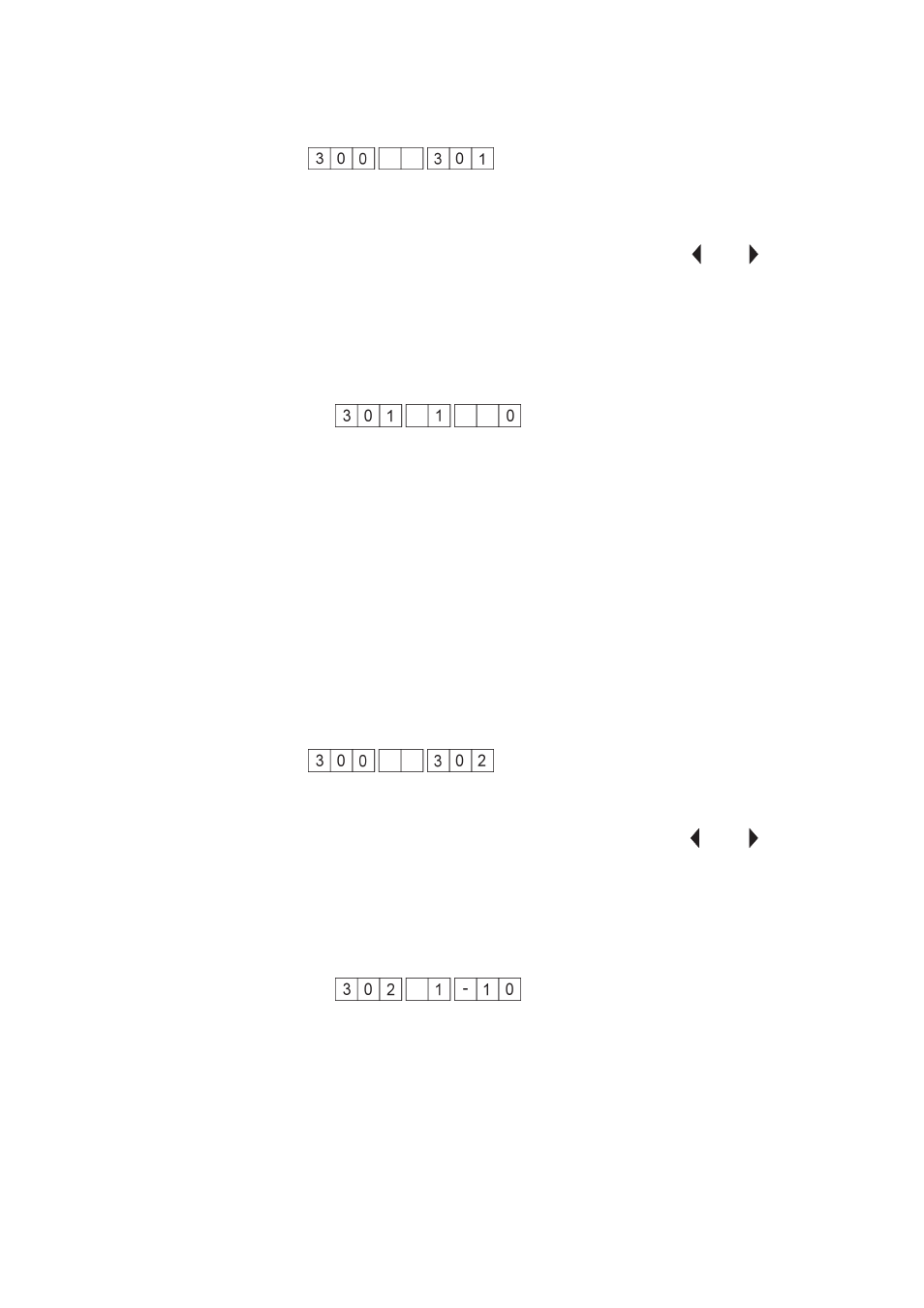

The last three digits of the display indicate the distance from the
original position in steps of 0.5 mm.
– Press the “OK” key.
The new position is saved.
– Press the “ESC” key.
The system returns to the programme for basic settings (300).
1.4.3 Measuring of needle position
This setting programme allows for the adjustment of the needle
position in relation to the material clamp.
– Insert the setting template into the X-guide of the sewing machine.
– Select the setting programme by means of the “ ” or “ ” key.
– Press the “OK” key.
The setting programme is started.
The X and Y axes are moved to the current needle position.
– To select a direction, press the corresponding key.
“1" key: X position
”2" key: Y-position
Example: Change of Y position
