Beisler 739-23-1 Program - Manual (Page 44)

4-44

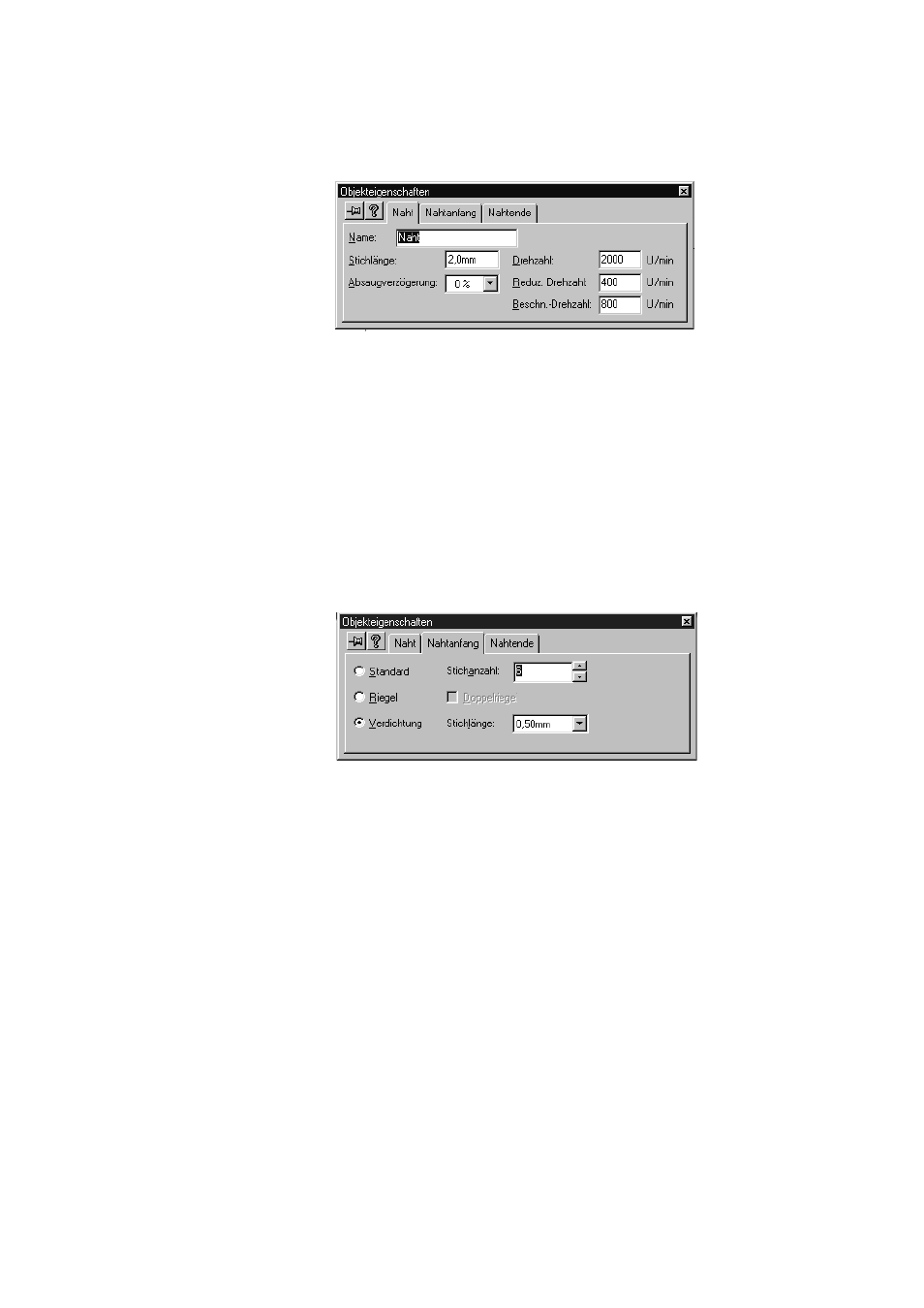

Seam properties
– In the tree structure, click “Seam”.
– Click the right mouse button.
The “Seam properties” dialog is displayed.
– Enter the desired values for the seam.
The following values are available:
Stitch length: 1.0 to 4.0 mm.
Suction delay: 0% to 93 %, in steps
Speed: 200 to 4000 r.p.m.
Reduced speed: 200 to 4000 r.p.m.
Limited speed: 200 to 4000 r.p.m.
– Click “Seam start”.
– Activate a “Stitch condensation” with a stitch length of
0.5 mm and 6 stitches.
The following options are available:
•
Standard = no tack / no stitch condensation
•
Tack/double tack 1 to 15 stitches
•
Stitch condensation 0.5 to 2.25 mm, 1 to 15 stitches
– Click “Seam end”.
– Activate a “Stitch condensation” with a stitch length of
0.5 mm and 6 stitches.
