3-14

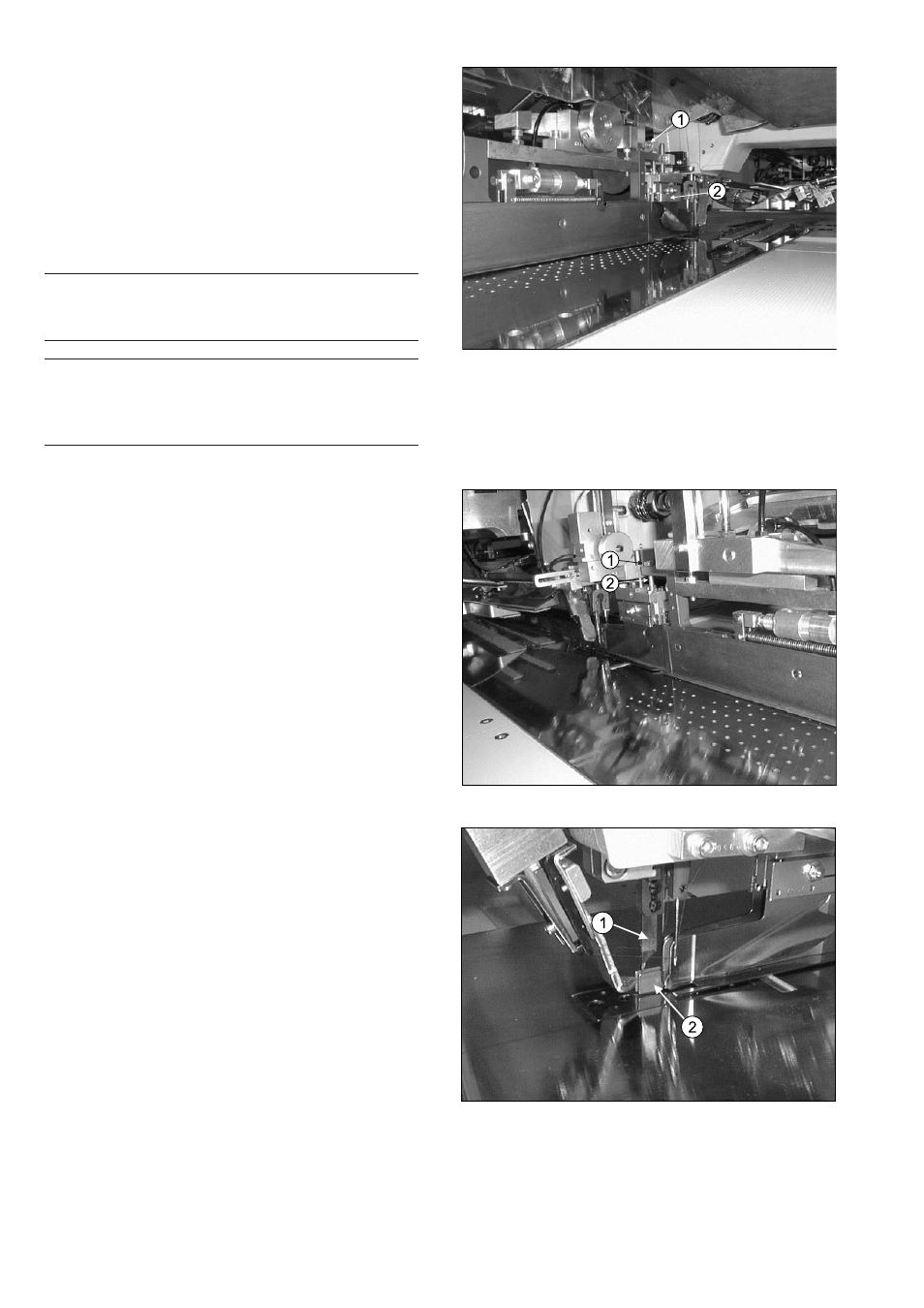

2.5 Setting the Piping width
To set the piping width, loosen the retaining screw (1) at
the guide head (2). Reposition the guide head (2) until the
desired piping width has been set.
Tighten the retaining screws.
Then check the setting of the folder and correct the
setting, if required (see Section 2.4).
Note
When the double piping width has been set properly,
the single piping width is set properly as well.
Note
The width of the folder sole is crucial for the piping
width; it can also be changed on customer request.
2.6 Center knife protection
The center knife protection (2) is attached to the guide
head and should surround the center knife (1) without
touching it.
If required, align the center knife protection (2) carefully to
the center knife.
2.5a Guide head height
Loosen the lock nut (1) of the stop screw (2), then rotate
the stop screw clockwise or counter-clockwise, as
required.
Tighten the lock nut (1).
