4.3 DeviceNet Slave
The DeviceNet Slave Functionality is the same for FC520x and CX1500-B520.
Diagnostic Data is corresponding to the explanations of the Diagnostic Inputs for DeviceNet Devices and
DeviceNet Boxes.

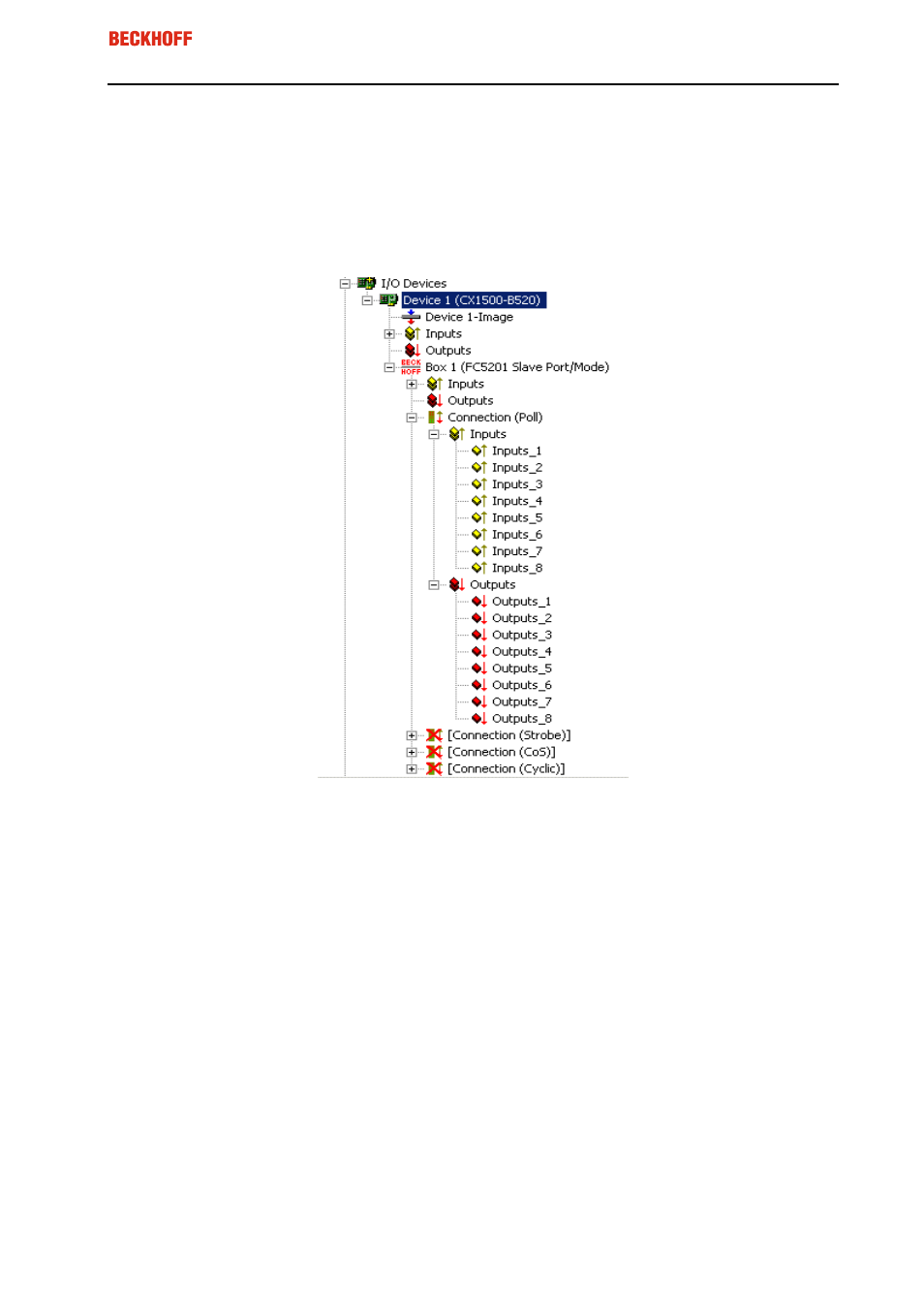

The DeviceNet Slave Port is Pre-Initialized using the IO-Mode Polling. Other IO-Modes can be selected
referring the DeviceNet rules by disabling/enabling of the IO-Modes. The Inputs and Outputs Data-Length
is set to 8 Bytes per Default. The Data-Lengths can be adjusted as used by the application.
