60

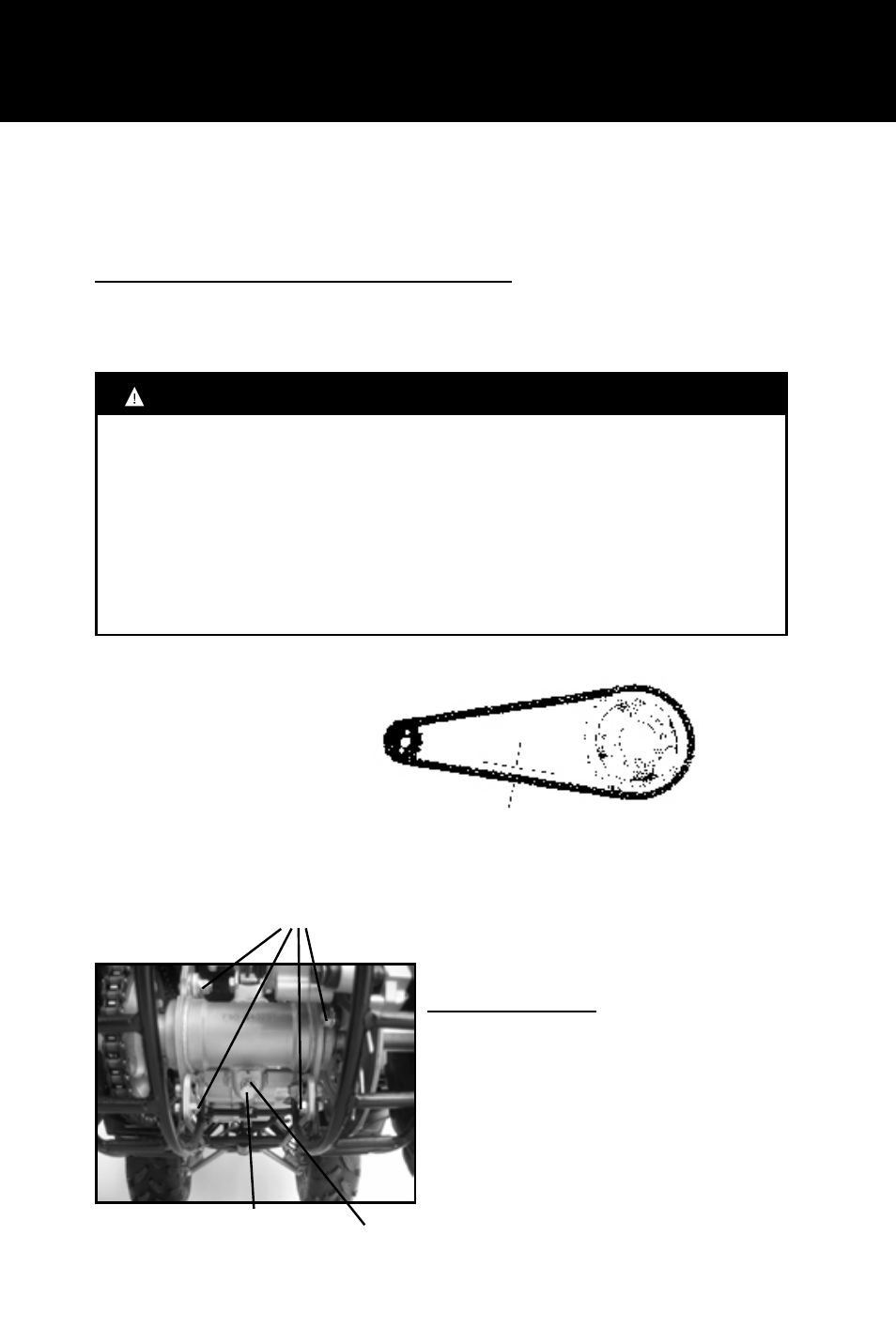

DRIVE CHAIN CLEANING, OILING AND
ADJUSTING
Clean and oil the chain as the following:
1. Wash the chain with water.
2. Dry the chain, and then oil the links with Chain lube or equivalent.
Adjusting the Drive Chain
The drive chain should be adjusted and make sure there is 20~30 mm
(0.8~1.2 inches) of slack, as shown above.
WARNING
Failing to inspect the drive chain slack before each use of the ATV could
be hazardous.
Too much chain slack could cause the chain to come off the sprockets,
resulting in an accident or serious damage to the ATV.
Inspect the drive chain slack before each use.
20~30 mm
(0.8~1.2 inches)
To adjust chain:
1. Loosen 4 nuts (1). Adjust slack
in drive chain by loosening cinch nut
(3) and then turning chain adjusting
bolt (2)
3. When proper adjustment is obtained,
tighten nuts(1) and cinch nut (3)
e
1
2
3
INSPECTION AND MAINTENANCE
