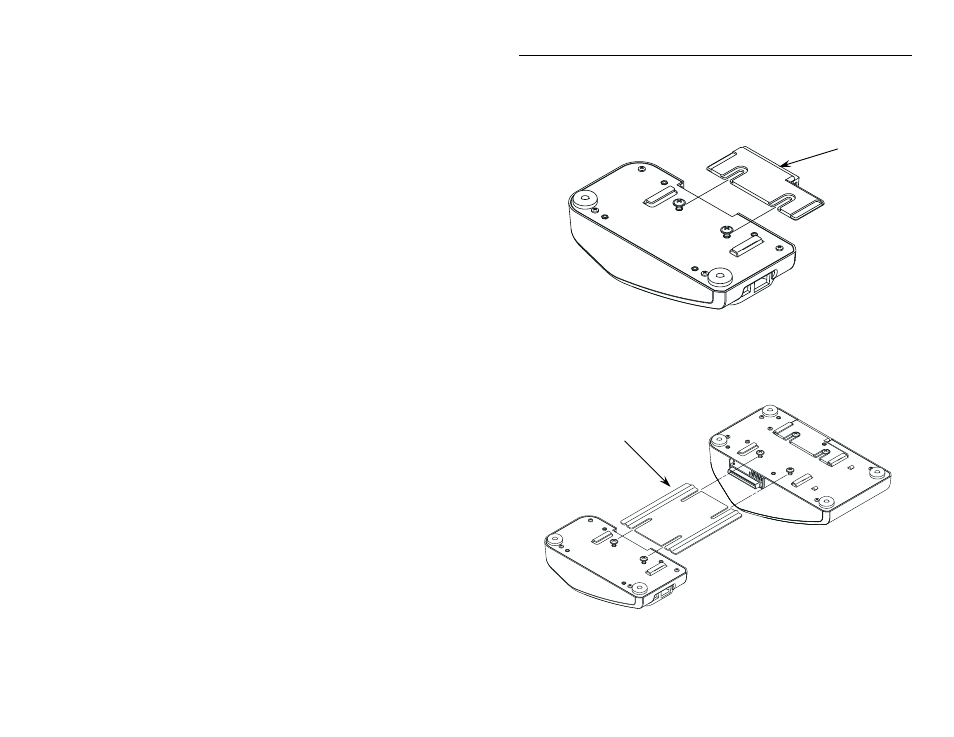

A s s e m b l i n g t h e N e t w o r k C o n t r o l M o d u l e
1. Turn over the 6055 Docking Module and 6054 Network
Control Module.
2. Using a Philips screwdriver, remove the end cap from
the Network Control Module.
3. Using a Philips screwdriver, loosen two screws on the
6055 Docking Module and slide the connector plate
under the screws. Tighten the screws.
C o n n e c t or P la t e
D o c k i ng
M o d u l e
N e tw or k C o n tr o l
M o d u l e
N e tw or k C o n tr o l
M o d u l e
E n d
C a p
