Avery Dennison 9414 System Setup - Manual (Page 2)

Warning
The printer and power supply should never be operated in a location where either one can get
wet. Personal injury could result.
The keypad/terminal should not be operated in a location that has room temperatures above 158 ° F or
below -4 ° F for extended periods of time. This could permanently damage the display.
Make sure the printer’s power supply is not accidentally connected to the keypad/terminal.

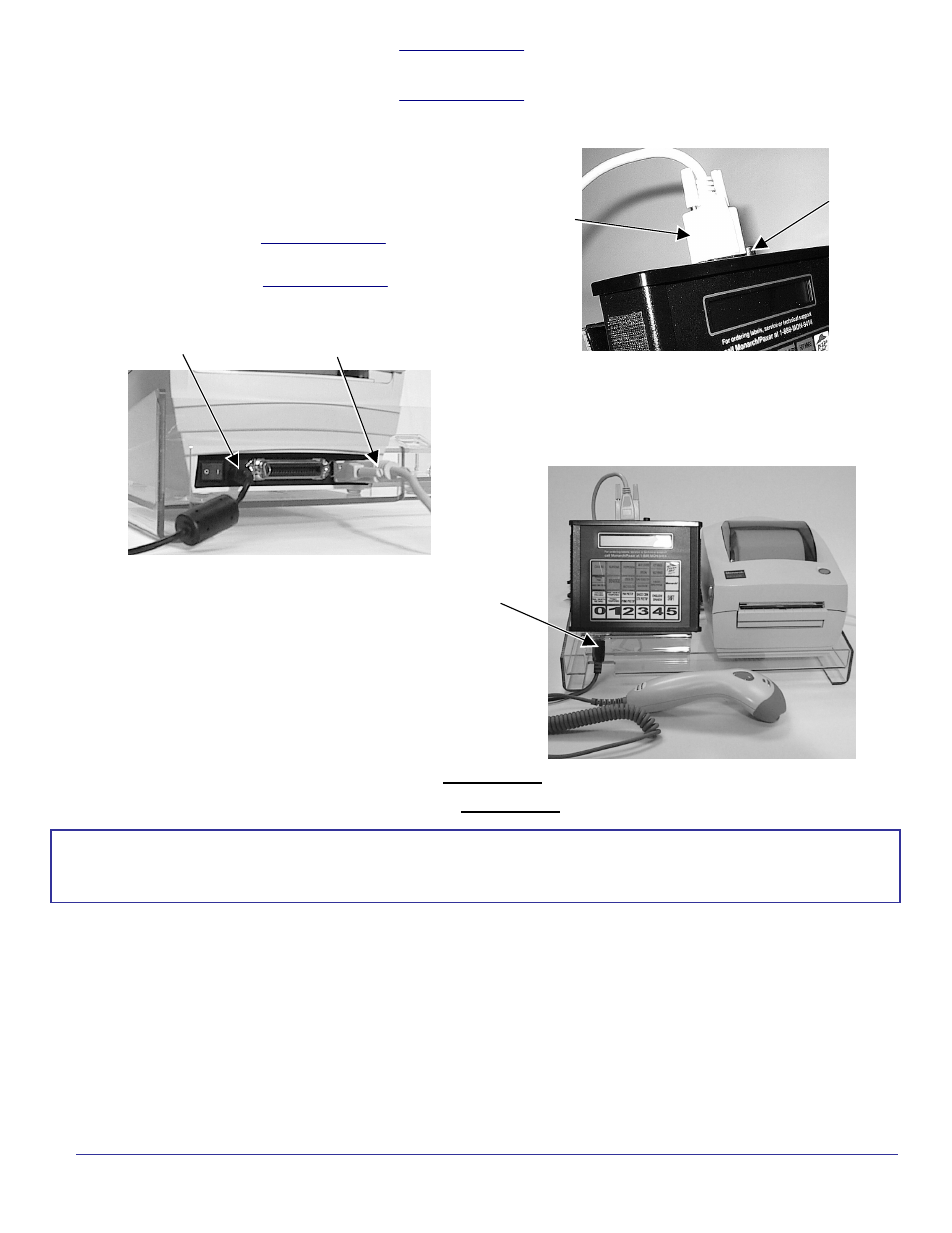

11. Plug the L-shaped connector into the socket located
on the top of the keypad/terminal (12V).
12. Connect the serial cable to the top of the keypad/terminal.
13. Place the printer in the tray.
The printer should never be operated while
resting on its side or upside down.
14. Plug the printer’s power supply cable (with the straight end)
into the socket on the back of the printer.
15. Connect the serial cable to the printer’s serial port.
16. If necessary, adjust the cables. Make sure all the
cables move freely through the openings in the back of
the tray. Use a cable tie to secure them.
17. Lift up the keypad/terminal with one hand and feed
the scanner cable connector through the
notch as shown.
18. Plug the scanner cable connector into the socket
and then turn the connector to lock the cable in
place.
19. Remove the tape from the Velcro  on the
keypad/terminal and put the keypad/terminal onto
the shelf.
20. Plug the printer's power supply cable into a GROUNDED electrical outlet.
21. Plug the keypad/terminal's power cable into a GROUNDED electrical outlet.
22. Press the power switch on the back of the printer to the ON position (I) to turn on the printer.
For future upgrades, an extra cable (part number 125801) is provided to connect your keypad/terminal
to a PC.
IF YOU NEED HELP, PLEASE CALL 1-888-666-9414.
IF YOU NEED MORE PAPER LABELS, CALL ONE OF THE FOLLOWING:
PrimeSource: 800-397-4737 (order item #85221)
Wasserstrom: 800-999-9277 (order item #374014)
Unified Food Co-Op: 800-444-4144 (order item #374014)
L-shaped
Connector
Serial
Cable
Pow er Cable Serial Cable
Scanner
Cable
