Avalon Firestyles 900 PI-1993 to 1996 - Manual (Page 22)

P AGE 22
I
NSERT
I
NSTALLATION
(C
ONT
.)
Exhaust Tube Specifications
The Avalon 900 PI is shipped with a vertical exhaust tube, but it can be adjusted to vent
horizontally (i.e., for built-in installations using a horizontal vent). To vent horizontally, unlatch
the upper and lower clips on the right side of the insert (remove the locking pins first), and
remove the exhaust tube and vertical exhaust extender. Discard the vertical exhaust extender.
Attach the exhaust tube with the lower clip, making sure the lower gasket is properly aligned,
and re-insert the locking pin.
Upper Clip Exhaust Tube
Lower Clip Vertical Exhaust Extender
Attach the exhaust
tube to the lower clip
Discard the vertical exhaust extender
Unlatch both clips
Locking
Pin

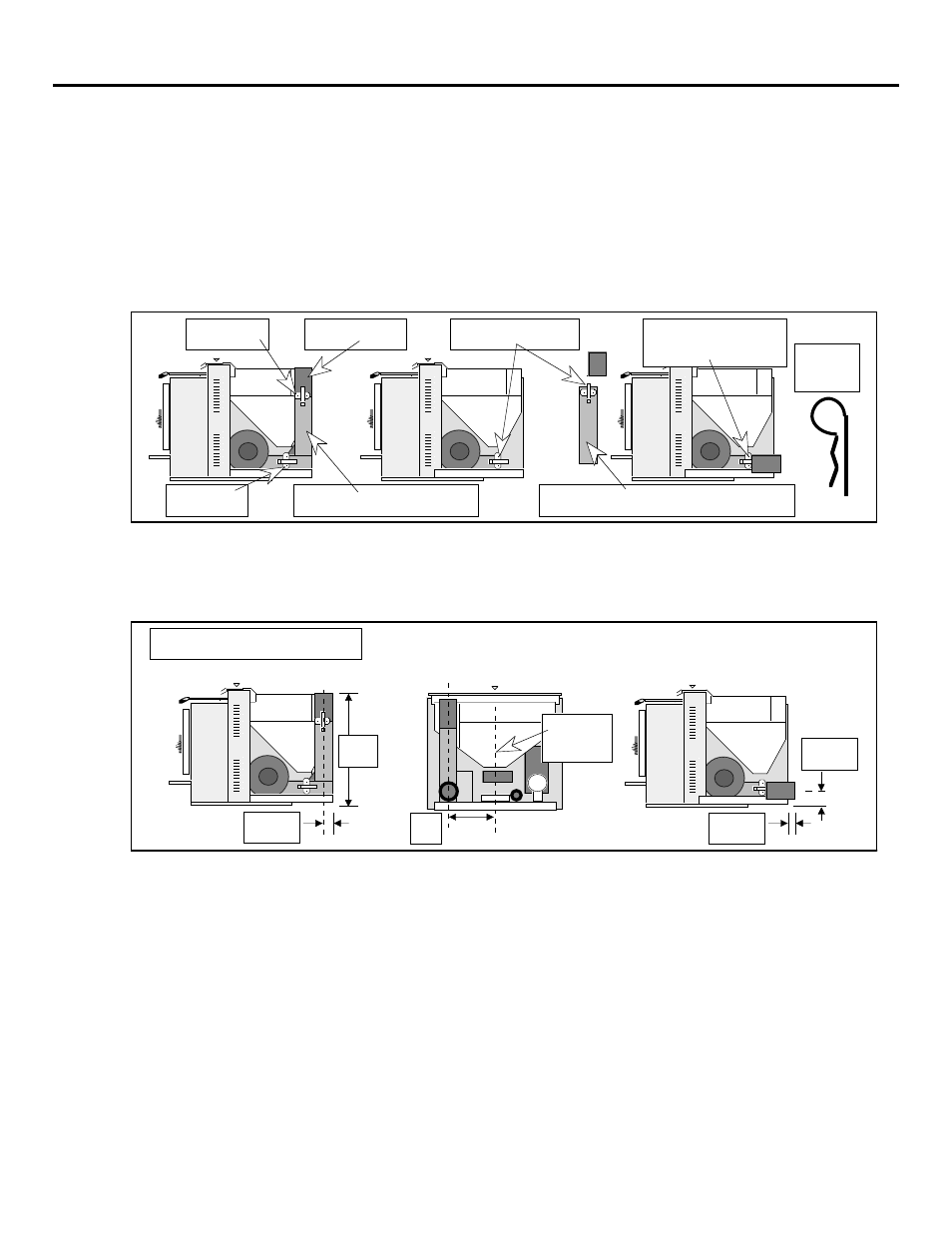

The illustration below details the exhaust tube location for the vertical and horizontal exhaut tube
configuration.
2 5/8"
1 3/4"
Center
of Stove
8"
19"
2 1/2"
Exhaust Tube Location:
