Figure 2-3, Installing the sim, Hardware preparation and installation – Artesyn MVME7616E Transition Module Installation and Use (April 2015) User Manual
Page 23
Hardware Preparation and Installation
MVME7616E Transition Module Installation and Use (6806800A43D)
23
Do not force the SIM onto the transition module.
4. Secure the SIM to the transition module standoffs with the two Phillips-head
screws provided. Do not over tighten the screws.

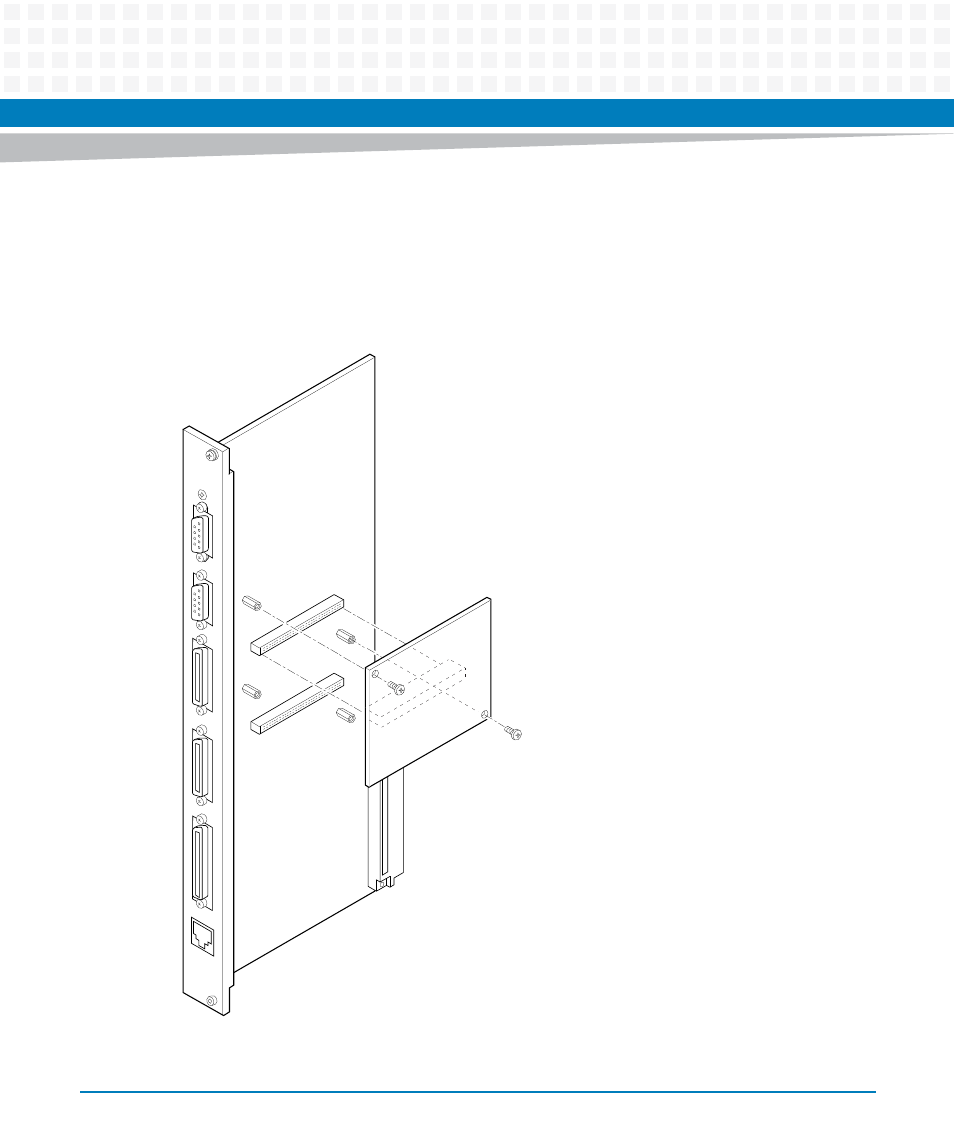

Figure 2-3
Installing the SIM
1911 9609
