Argox OS Series - Manual (Page 41)

80

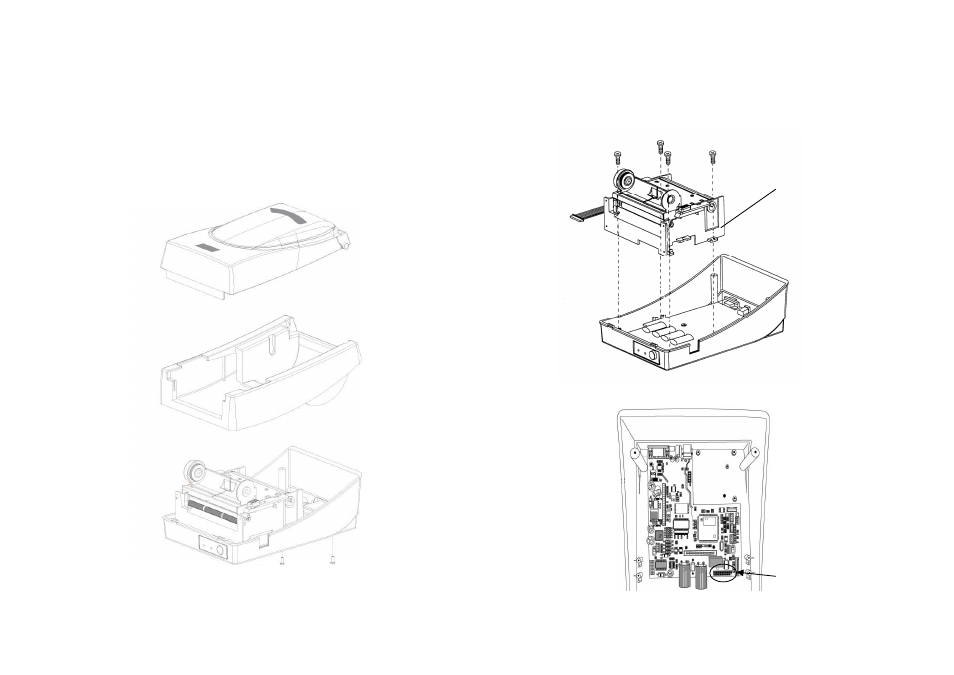

Appendix I - Installing the Cutter
1. Turn off the printer power and unplug the power cable and
Serial / USB cable.
2. Remove the top cover.
3. Remove the two screws under the base housing.
81
4. Remove the whole print head assembly by releasing the 4
screws at its feet.
5. Add the cutter baby board to J16 on the main board.
J16
Print Head Assembly
