APPENDIX A: CONNECTORS
U
BNC Inputs:
• 4 X BNC Connector
• Auto Detection for SDI and CVBS signal

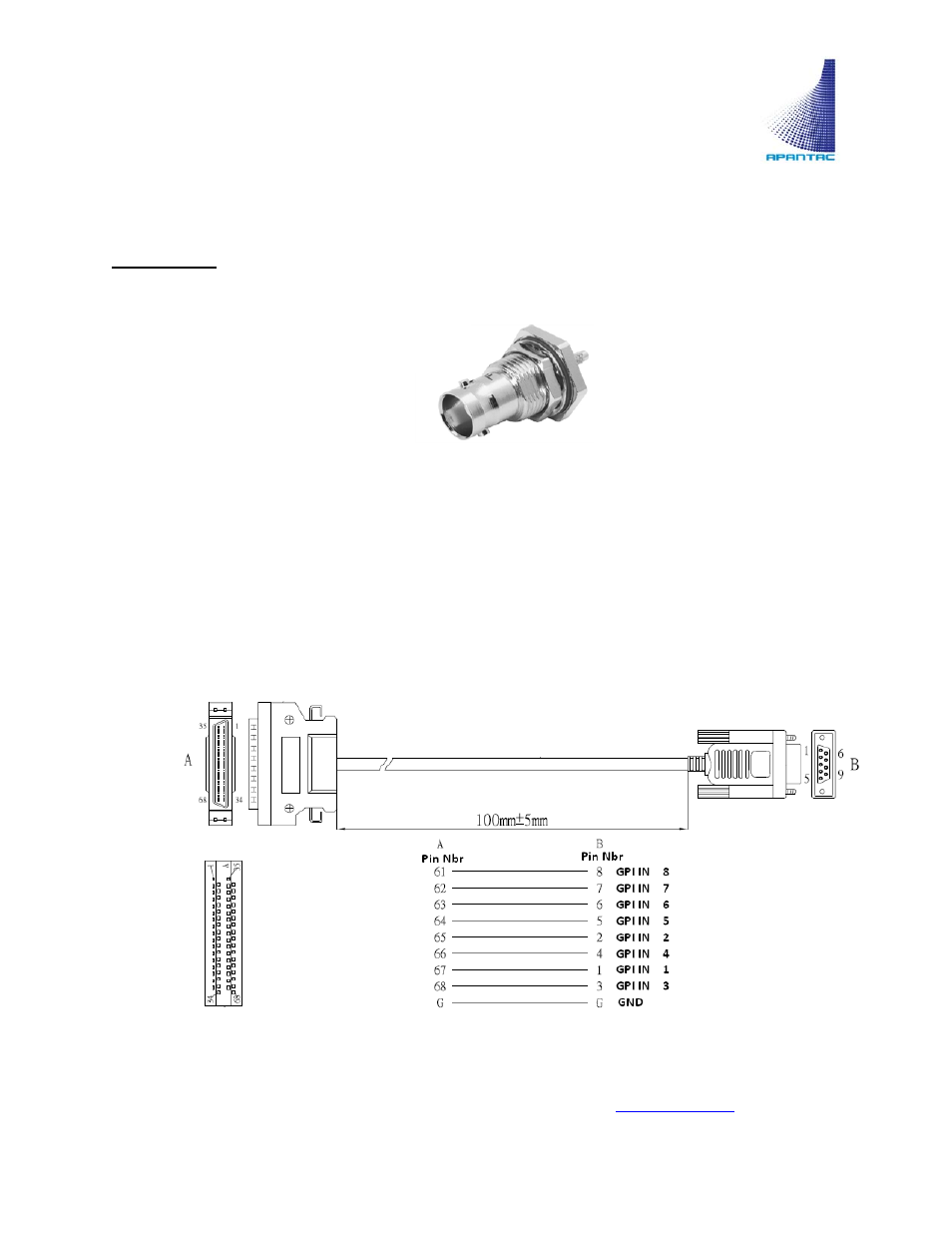

Figure 30: 75 ohm BNC Connector
• SCSI Connector for Audio and GPI/O
• 8 GPIO
• 8 AES
• 16 Analog audio
• Others are Grounds
• TOTAL 68 PINS
Figure 31: 68 pin SCSI Connector
