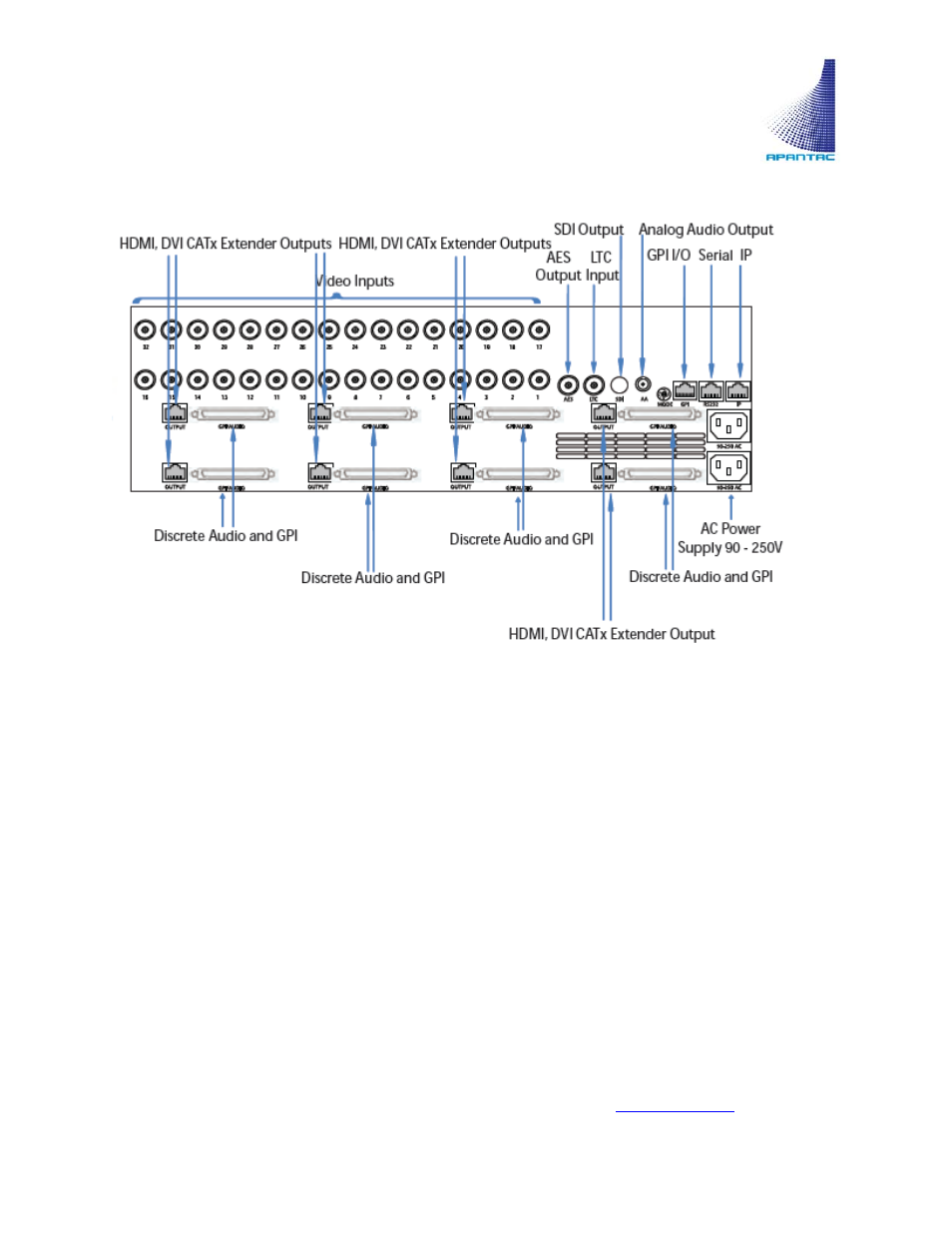

Figure 16: Tahoma LX-32 rear panel view
Rear Panel indicators, connectors and buttons are:
1. RJ45: For DVI/HDMI/VGA output with built-in extenders up to 2048x1080 @115ft
(35 meters) with optional active receiver. Passive receivers supports up to 35 feet.
2. BNCs: Input for video (auto-detect PAL/NTSC, HD/SD-SDI, and 3G HD-SDI)
3. BNC: LTC input to sync on screen clocks
4. BNC: Line level AES audio monitor output*
5. Rotary Switch: Reserved for future use
6. RJ50: GPI/O for control, alarm and tally
7. RJ45: RS232 serial
8. RJ45: IP control
9. SCSI connector: for discrete audio and GPI/O
10. Phone Jack: Line level stereo audio monitor output*
*Audio monitoring is available in line level in stereo and AES
