To assemble this flat lens and holder, observe the following brief procedure.
1. Place the lens into the inside of the cap, ensuring that the grooves of the lens are facing
inward.
2. Place the cap over the base, ensuring that the top of the lens is toward the arrow on the
base. Use the provided ½" machine screws (2) with a nut to secure the cap in place;
see the example in Figure 10.
3. Place the lens and lens holder assembly onto the ZMOTION 20-Pin Development
Board with the arrow on the lens holder aligned with the primary placement arrow on
the circuit board, as shown in Figure 10. The four screw holes in the circuit board
should line up with the four upper mounting holes in the lens holder.

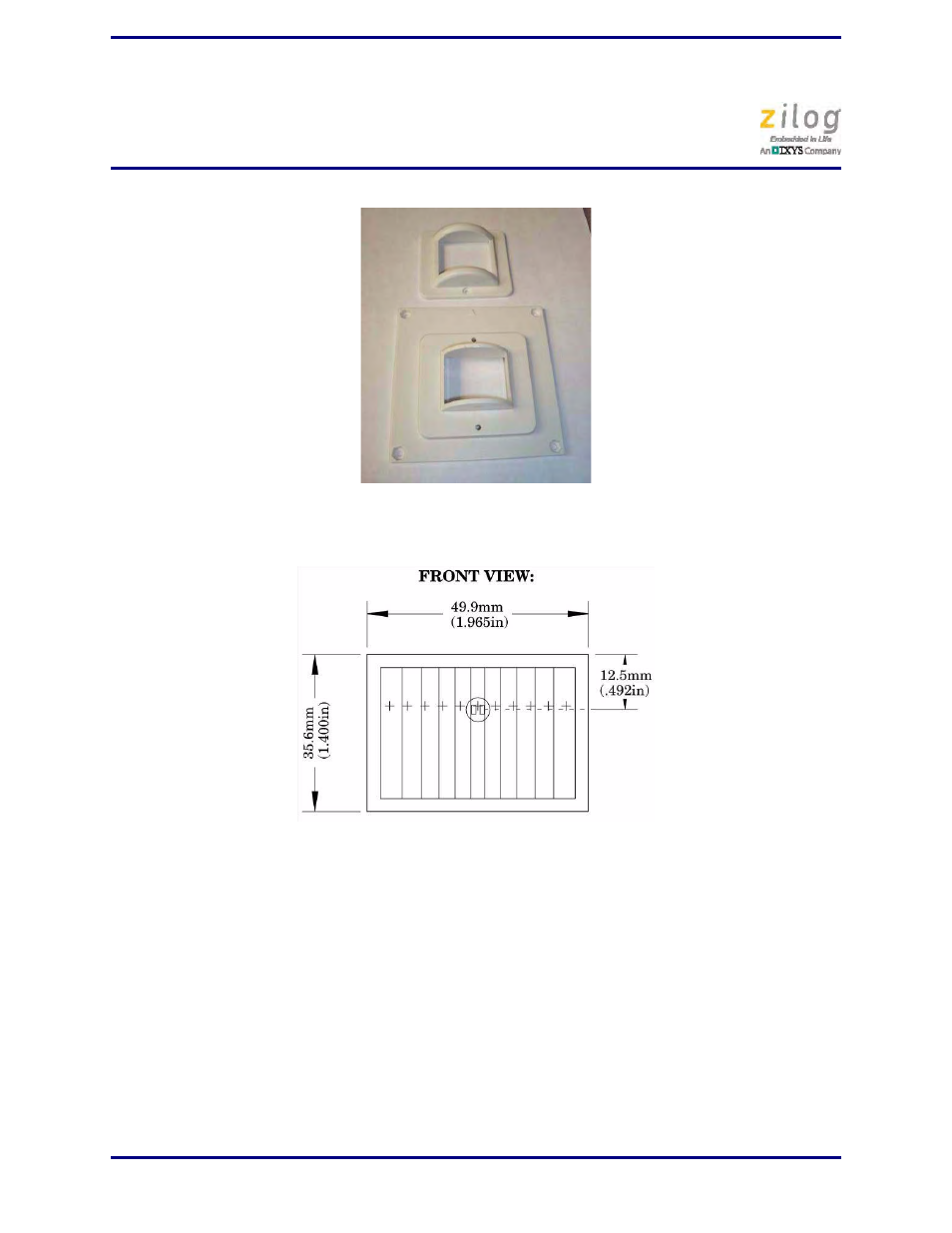

Figure 8. Flat 0.9" Lens Holder (Cap and Base)
Figure 9. Flat Lens: AA 0.9 GI T1
