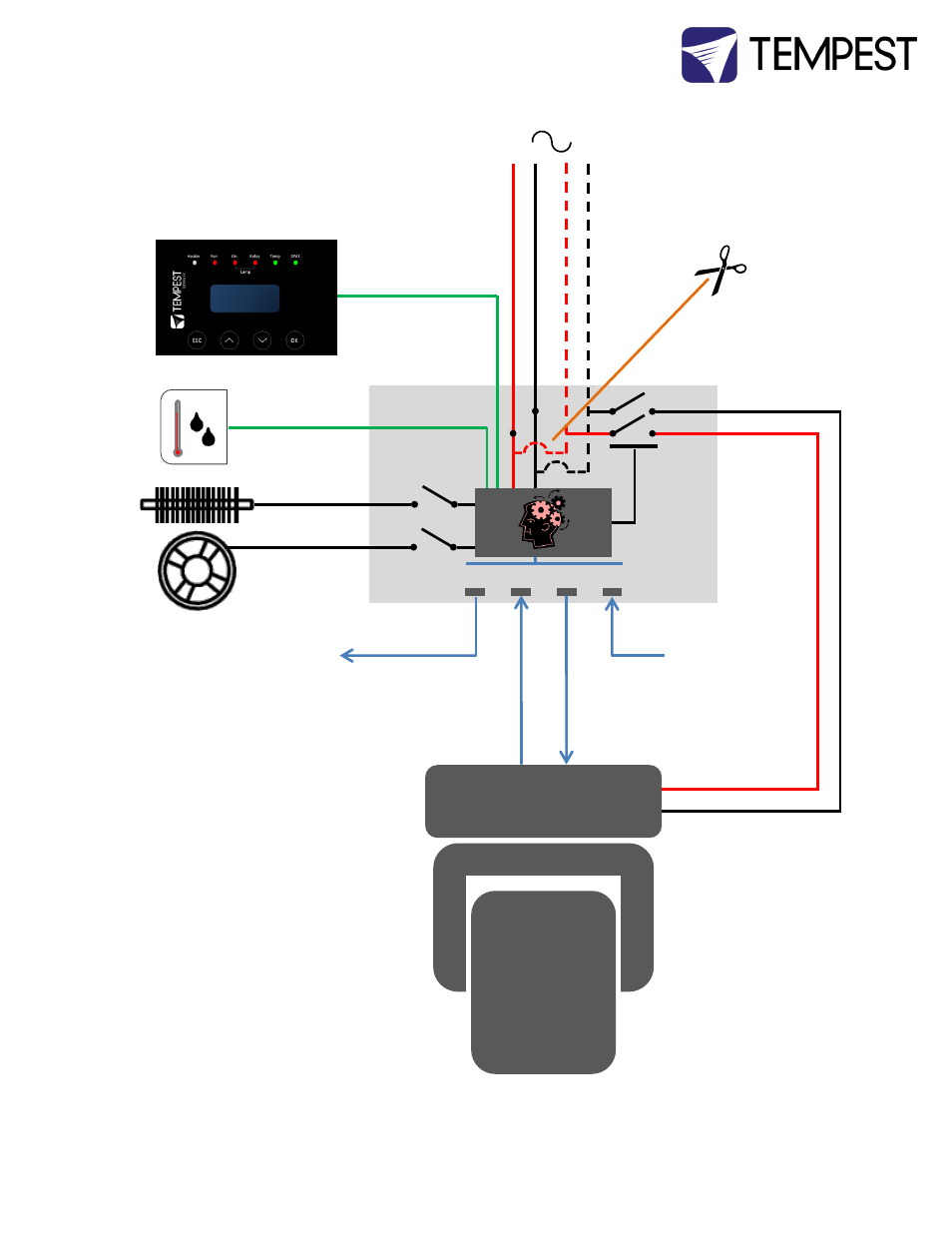

DEC3.3 Schematic
OUT
IN
DMX/RDM – RS485
AC FAN(S)
AC HEATER(S)
SENSOR
Cut links on
board for split
feed operation
MAIN AC Supply
Optional independent SPLIT AC Luminaire Supply
