8
ZAS Hbb
No.
Name
Function
1
HOST USB
Connection for a pen drive, memory card reader or external hard drive (FAT 32, NTFS and
EXT3). Some HDD models could require external power.
2
LED
Operation Led. (Green: On, Red: Standby, Orange: No input signal).
3
IR
IR sensor.
No.
Name
Function
4
RF-IN
Signal input of terrestrial antenna.
5
RF-OUT
RF signal output to connect to a TV or VCR.
6
LAN
Ethernet connector.
7
SCART TV-OUT
To connect to a TV via SCART (Euro) connector.
8
HDMI
Interface for high definition signal connection.
9
OPTICAL
Optical digital audio output.
10
DC-IN 12V
Input to connect the 12V AC adapter.
1
2 3

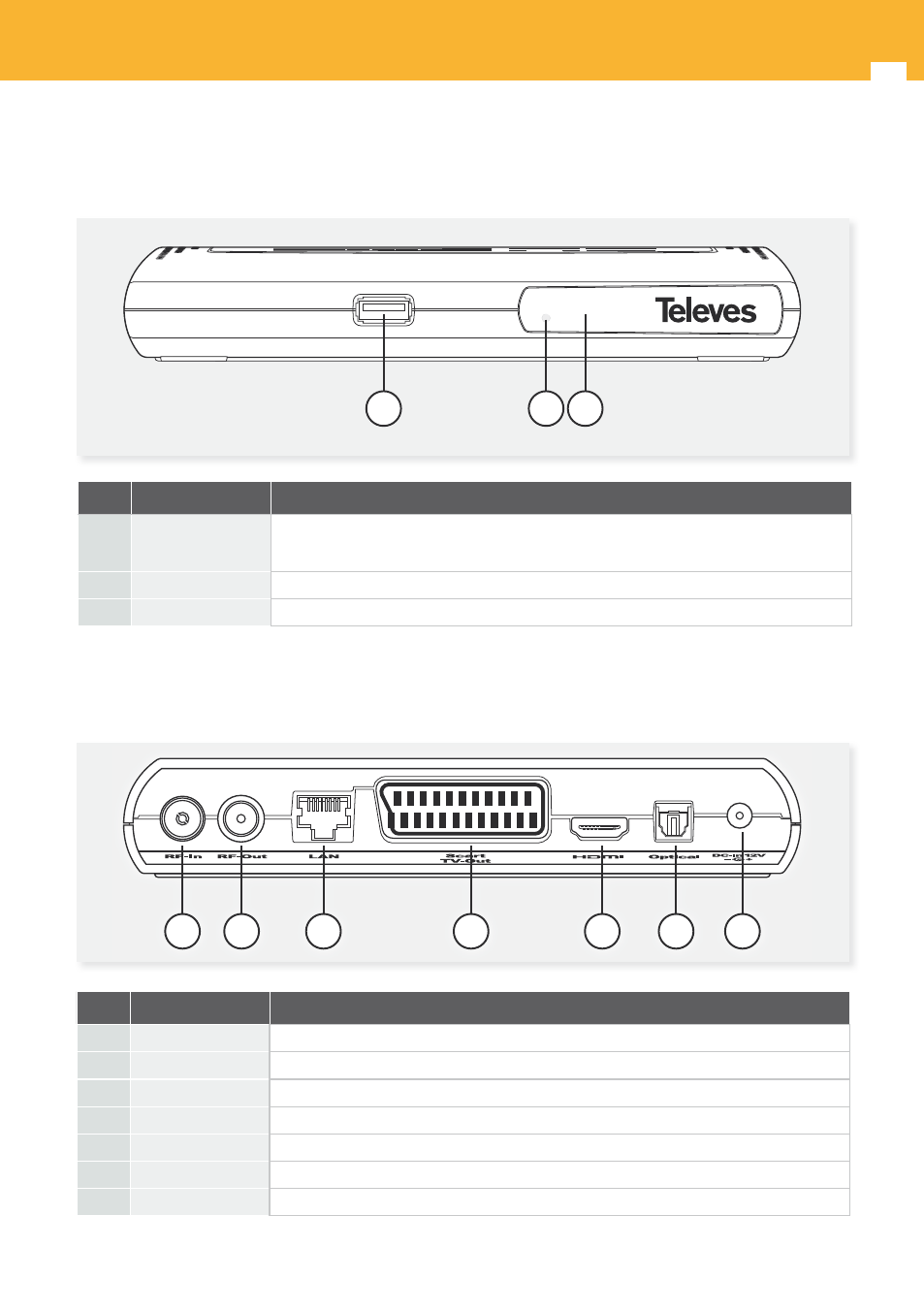

3. Description of connections
Front panel
Back panel
4
5
6
7
8
9
10
