V. Place hose clamps on each end of the rubber
sleeves. Install the discharge tube onto the
outlet of the supercharger and then the throt-
tle body. Adjust the sleeves and tighten the
hose clamps using a screwdriver. (See Fig.
2-n.)
Fig. 2-m
O. From the stock radiator hose, make two 90°
elbows by trimming as shown. The first is
with 3" long legs for the thermostat housing
end. The second, with 2" long legs, is from
the middle of the stock hose and attaches to
the radiator. (See Fig. 2-l.)
• Place the stainless water pipe between
the two hoses placing the shorter leg near
the radiator.
• Position the hoses and tube so there is
ample overlap for sealing and sucure
with the provided clamps.
• Refill the radiator and coolant bottle.
Fig. 2-l

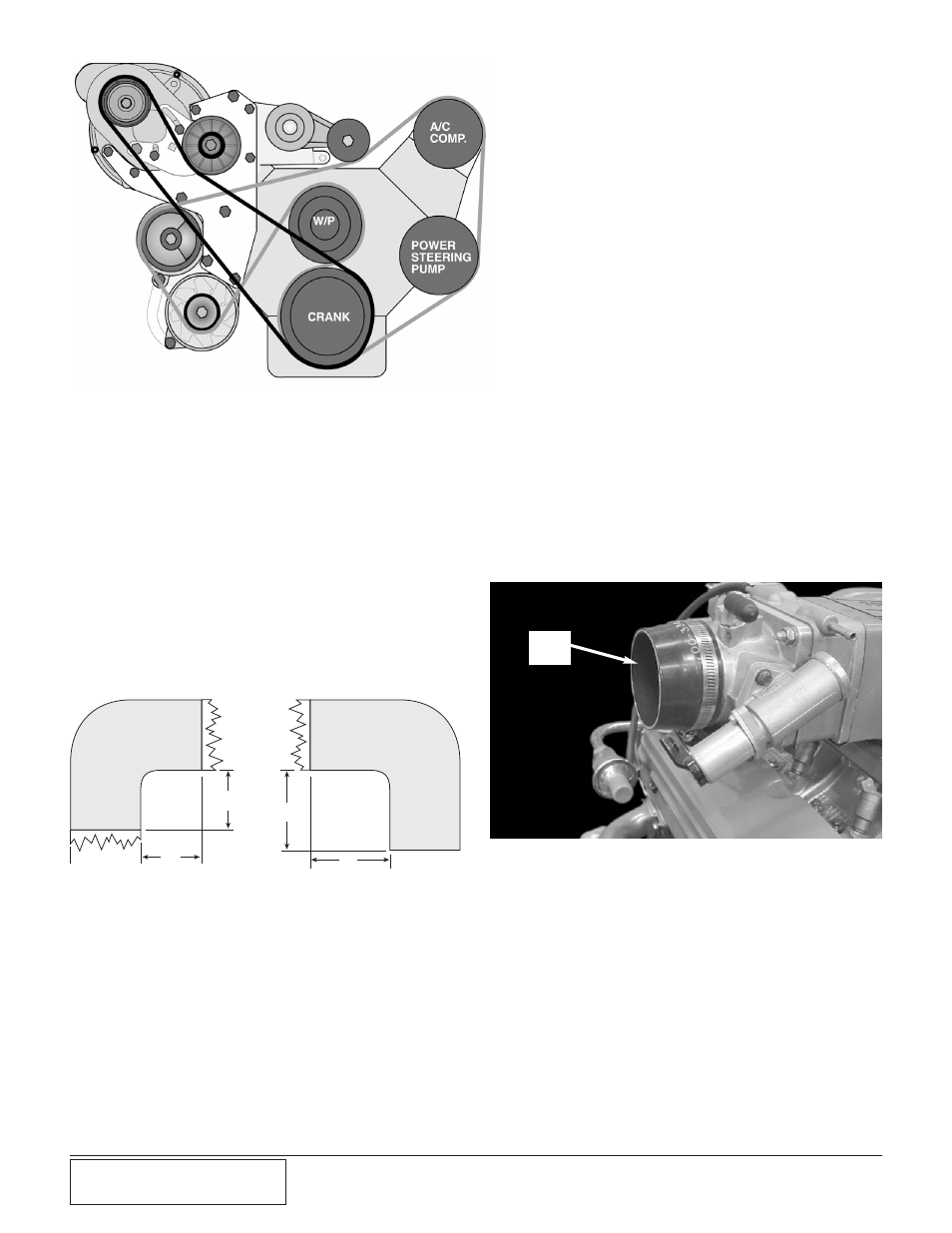

Belt Routing Diagram
2"
3"
2"
3"
N. Find the rubber air injection hose from the
diverter valve. Shorten the hose by cutting
3” out of the middle of the hose and 1-1/2”
off the back end. Reconnect the two formed
pieces together with the hose union and
clamps provided. Re-install the short end
hose between the diverter valve and fitting
on the side of the smog pump. (See
Appendix E on Pg.A-7.)
P. Remove the vent tube from the throttle body
and the oil fill cap and clamp. Plug the nip-
ple on the throttle body with a nipple plug
and using a hose clamp, securely retain the
nipple cover.
Q. Install the intake u-bend with the supplied 3
1/2” x 4” adapter sleeve and clamps. On the
other end of the U-bend, install the 3 1/2” x
3 1/4” adapter sleeve.
R. Plug in the Mass air flow (MAF) sensor and
install the sensor into the other side of the
adapter with the supplied clamps.
S. Install the K&N air filter on the end of the
MAF sensor. Tighten the clamp to secure it
to the filter.
T. Find the plastic air filter cover and the 90°
barbed fitting and install it in the end of the
air filter housing. Attach the supplied 3/8"
hose to the barbed fitting. You will also find
in the assembly what looks like a fuel filter.
This will be used to catch crank case vapor
and should be installed between the valve
cover oil fill nipple and the air filter cover.
Locate the two sheet metal screws and
secure the air filter cover to the inner fender.
(See Appendix A-5 for orientation.)
U. Attach the 3" turbo hose at the throttle body
and fasten with supplied hose clamp. (See
Fig. 2-m.)
