Page 13

2-3

P/N: 4809630

01APR03 v2.0 86-93Mus(4809630 v2.0)

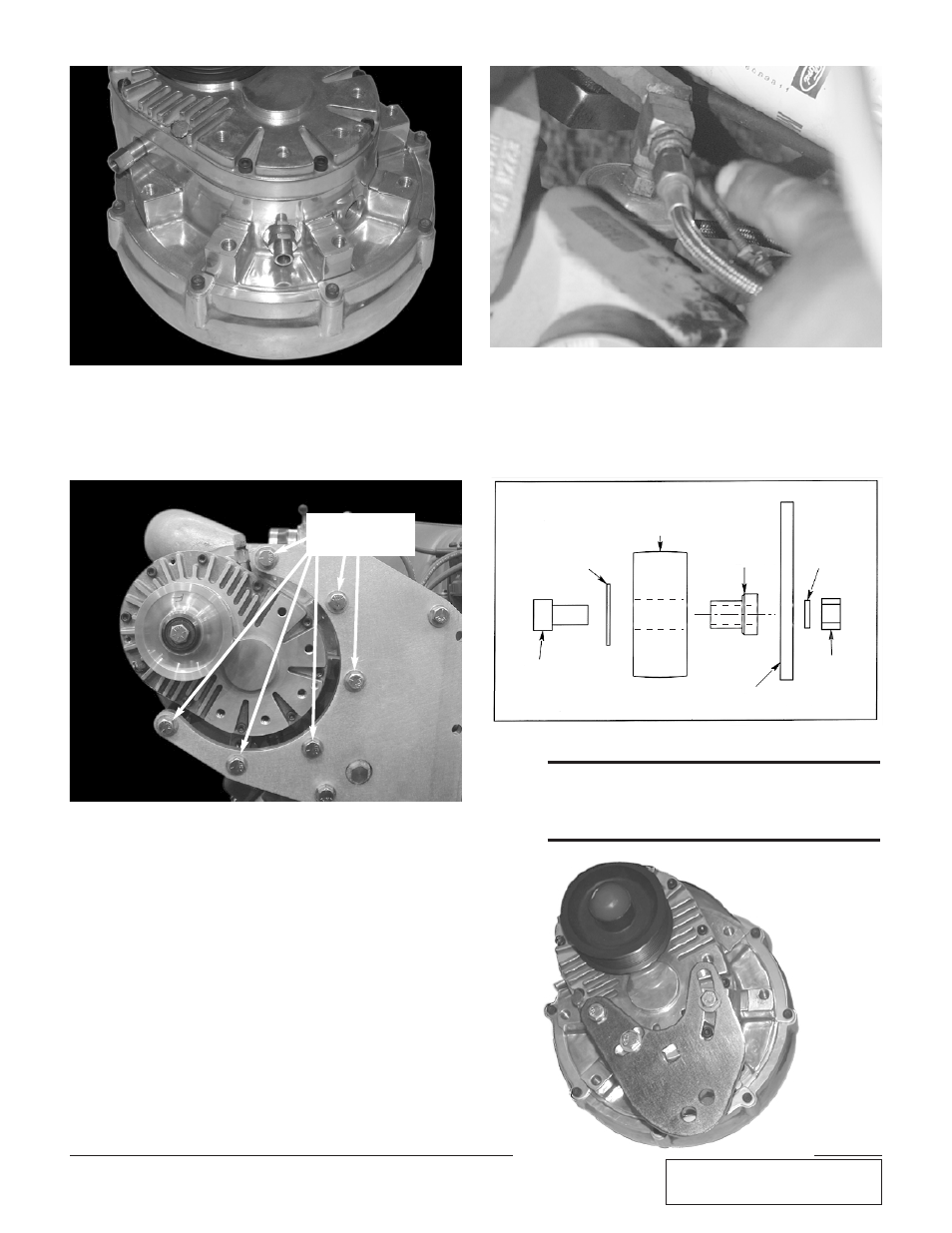

Fig. 2-g

Remove the factory oil pressure sensor at
the front of the engine on the drivers side of
the engine next to the oil filter. Using pipe
sealant, install the supplied street TEE
adapter into the factory fitting where the
sensor was. Re-install the factory sensor on
one of the ends of the street TEE and tight-
en.

Bolts &

washers (6)

Fig. 2-h

Use a 3/8” socket and extension and tighten
the supercharger bolts.

Bolt the Supercharger to the mounting
bracket with six of the 3/8" x 1.250" bolts
and washers through the holes in the mount-
ing plate. (See Fig. 2-h.)

Install the pre-manufactured braided oil line
onto the fitting in the street TEE. Neatly
route the hose across the front of the engine,
behind the accessories and to the super-
charger. (See Fig. 2-i.)

Fig. 2-i

M. Mount the S/C belt tensioner to the front

cover of the supercharger using the supplied
3/8" bolts and washers noting tensioner plate
location. (See Fig. 2-j.) Install the supplied
tensioner pulley spacer bolt, washer and nut.

12mm FLAT

WASHER

12mm x
1.75 NUT

TENSIONER MOUNTING PLATE

12mm x

65mm

DUST SHIELD

PAXTON TENSIONER

PULLEY

TENSIONER

PULLEY

SPACER

Fig. 2-j

Fig. 2-k

*** NOTE ***

There are two holes in the tensioner plate. The upper

hole will be used to mount the tensioner pulley when

using the 3.5" supercharger pulley The lower hole will

be utilized when upgrading to a smaller pulley.
