Paxton Superchargers Mustang Novi 1000 - Manual (Page 12)

2-2
P/N: 4809630
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
01APR03 v2.0 86-93Mus(4809630 v2.0)

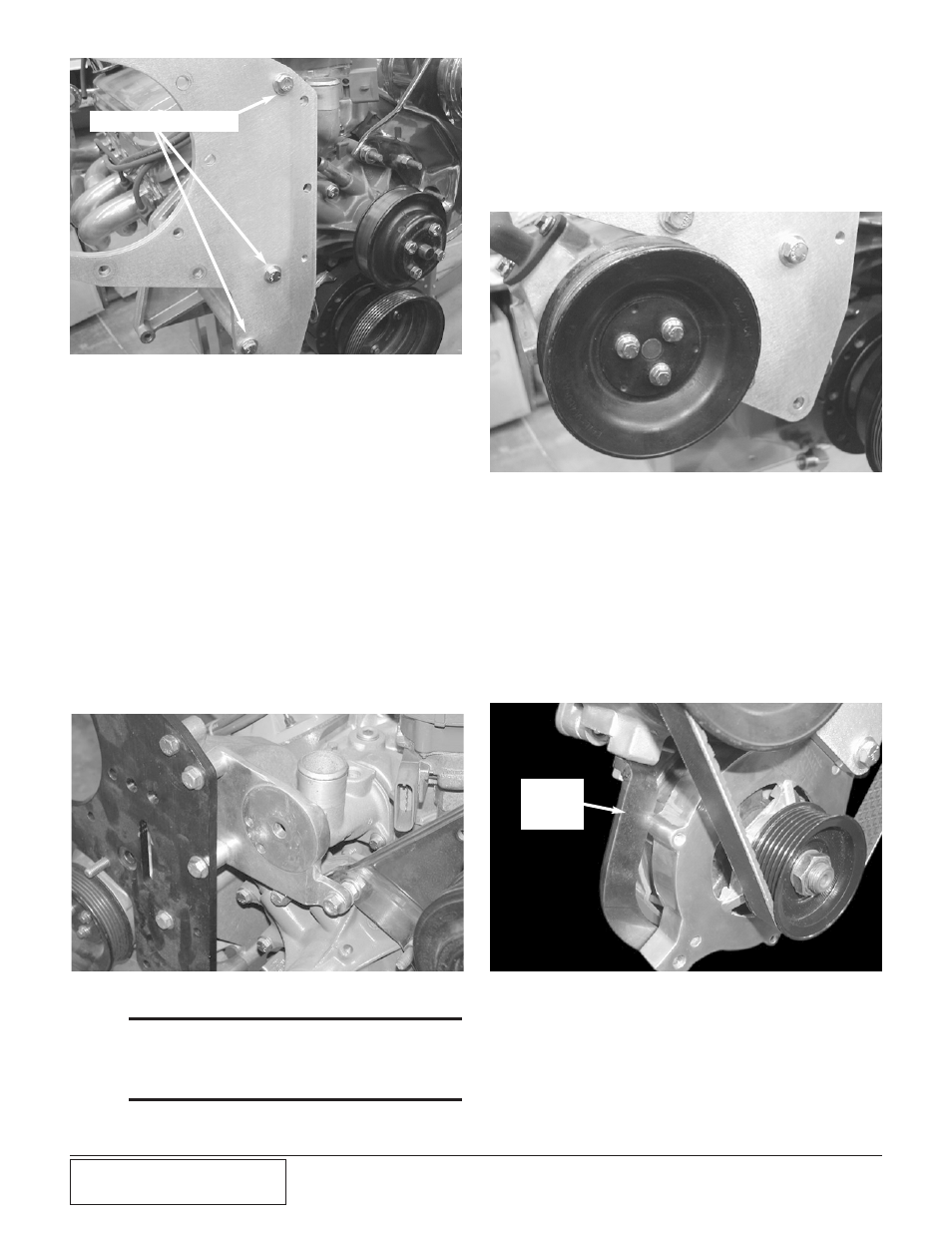

Fig. 2-e
G. Below the smog pump, The alternator will
be mounted. Use the 7/16" bolt washer and
nut through the rear mounting plate, through
the alternator and into the front plate.
H. Off the side of the Smog pump, use the 3/8"
x 1" bolt to mount the alternator support
bracket. Use the 3/8" x 1" bolt and lock
washer to secure the alternator support
bracket to the ear of the alternator. (See Fig.
2-f.) Tighten all of the bolts from steps E
thru I.
Alternator
support
bracket
Fig. 2-f
I. Attach the 1/2" drain hose to the fitting at
the bottom of the supercharger. Secure with
the provided clamp. Route the hose down
the side of the engine and connect to the
nipple previously installed in the oil pan (see
Fig. 2-g.) and trim if necessary. Make sure
there are no kinks or dips in the oil return or
supercharger failure may result.
***NOTE***
Check the accessory belt tensioner pulley alignment.
It may be necessary to add or remove a washer to
the stud behind the tensioner bracket. Do not tighten
the bolts yet, just get them started.
F. The Smog pump is secured with a 3/8" bolt
and flat washer through the cast mounting
plate, through the smog pump, through the
smog pump spacer and through the front
mounting plate. The lower mounting is done
with a 3/8 x 2" bolt and washer from the
back of the bracket into the smog pump. Do
not tighten. (See Fig. 2-e.)
1. Secure the factory/spring tensioner
assembly to the Paxton belt tensioner
mounting bracket using the 1/2" carriage
bolt.
2. Replace the locking type nut on the A/C
mounting bracket stud closest to the
water pump with a standard nut.
3. Depending on Ford’s manufacturing tol-
erances, it may be necessary to trim
about 1/8" off the edge of the flange on
the A/C mounting bracket to provide
room for the tensioner mounting bracket.
4. Install the tensioner between the super-
charger mounting plate and A/C bracket
stud using two standard flat washers as a
spacer. Secure with two 3/8"-16 x 1"
bolts and washers and a 3/8"-16 nut. (See
Fig. 2-d.)
Fig. 2-d
Fig. 2-c
Bolts & washers
