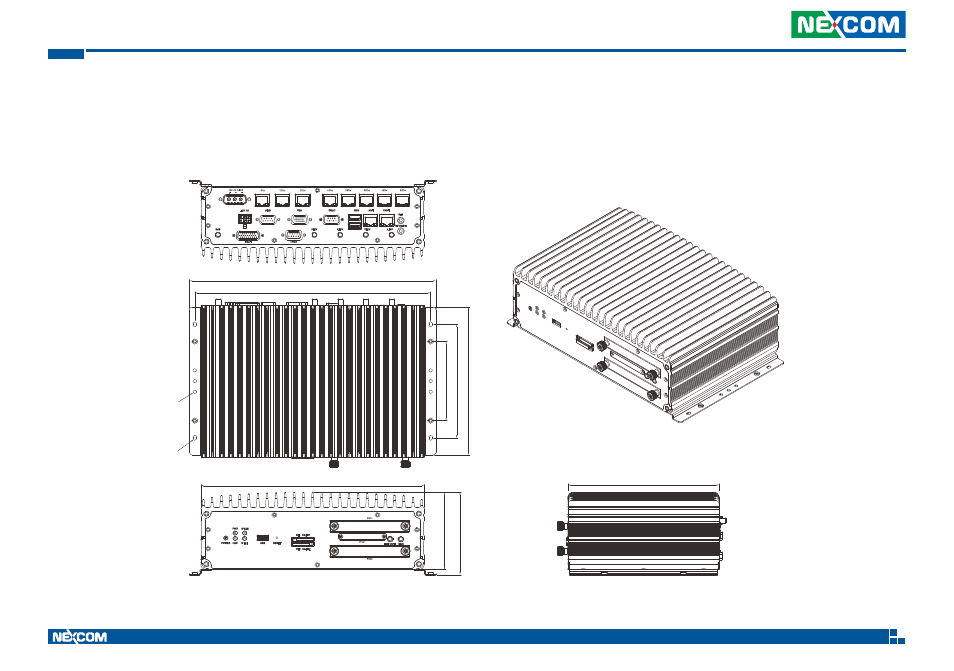

Chapter 4: Mechanical Dimensions

VTC 71-C Series User Manual

Chapter 4: Mechanical Dimensions

VTC 7100-C8SK

286.40

274.40

Ø4

Ø4

92.00 132.00 172.00

260.00

90.10

96.10

176.00
