Sata connector sata pwr connector, Sata connector, Sata pwr connector – NEXCOM VTC 7100-C8SK User Manual
Page 57
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
43
Chapter 3: Jumpers and Switches
VTC 71-C Series User Manual

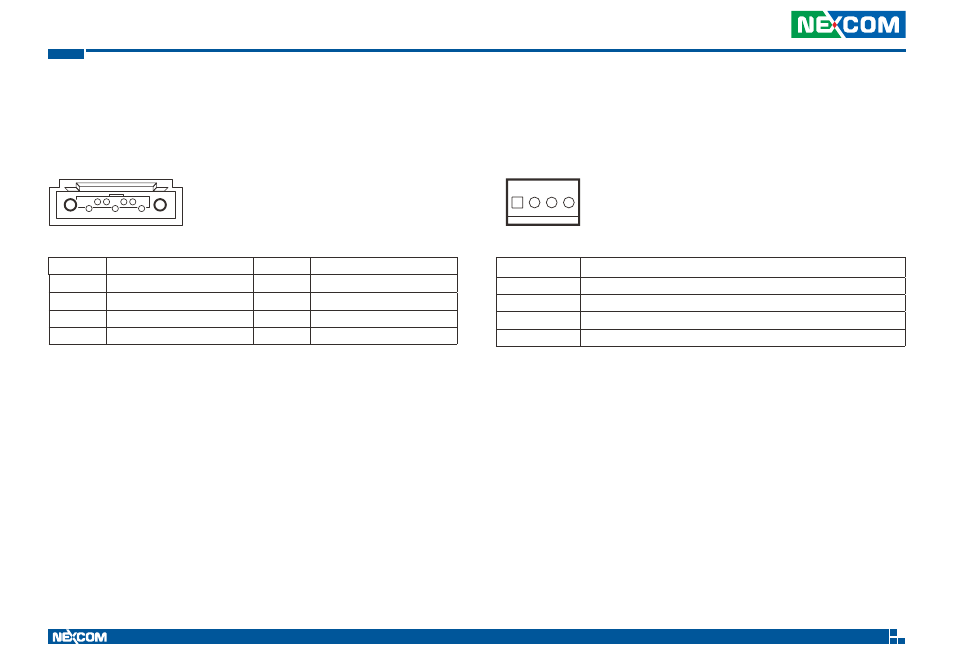

SATA Connector
Connector size: SATA CON 7P MALE 180D DIP
Connector location: CN5
Pin
Definition
Pin
Definition
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
SATA PWR Connector
Connector size: 4PIN WAFER 2.54mm MALE 180° DIP
Connector location: CN11
Pin
Definition
1
VCC12
2
GND
3
GND
4
VCC5
1
4
