NEXCOM VTC 6201 User Manual
Page 53
Chapter 3: System Setup
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
39
VTC 6201 Series User Manual

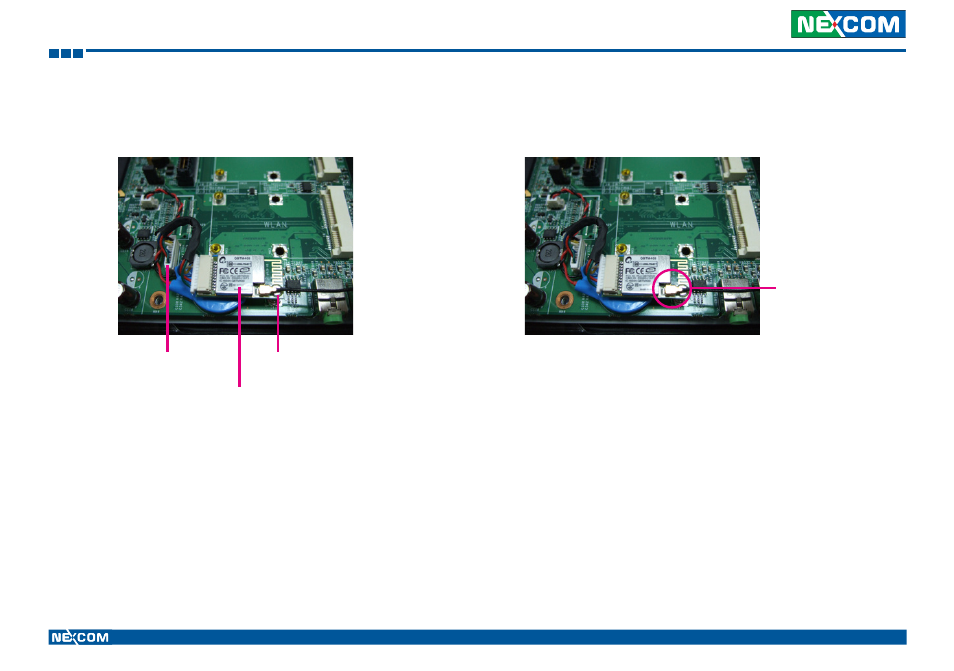

3. Insert the Bluetooth module’s cable connector into the USB header.
Push the module down then secure it with a mounting screw.
Bluetooth
module
Cable
connector
Mounting
screw
4. Attach one end of the RF cable onto the module.
Attach RF
cable to the module
5. Mount the other end of the cable to the Bluetooth mounting hole located
at the front panel of the chassis.
