Chapter 2: Jumpers and Connectors
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved 18 VTC 6201 Series User Manual

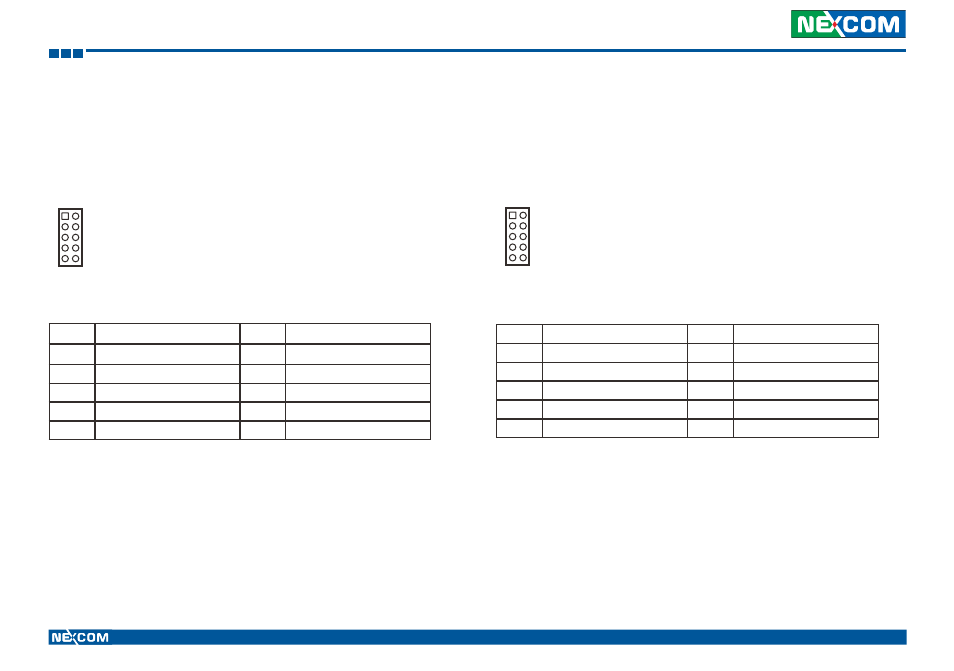

Connectors
GPIO Connector
Connector size: 2x10 20Pin header, 2.0 mm
Connector location: CN7
10 9
2 1
Pin Definition Pin Definition
1 GIN1 2 GIN2
3 GIN3 4 GIN4
5 GOUT4 6 GOUT1
7 GOUT2 8 GOUT3
9 GND 10 GND
Connector pin definition (VTC 6201 Series)
RS232 Connectors
Connector size: 2x10 20-pin header, 2.0 mm
Connector location: COM1(CN8) COM3(CN22)
10 9
2 1
Pin Description Pin Description
1 DCD (RS232) 2 RXD (RS232)
3 TXD (RS232) 4 DTR (RS232)
5 GND 6 DSR (RS232)
7 RTS (RS232) 8 CTS (RS232)
9 RI (RS232)
Connector pin definition (VTC 6201 Series COM2)
