Chapter 2: Jumpers and Connectors
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved 23 VTC 6201 Series User Manual

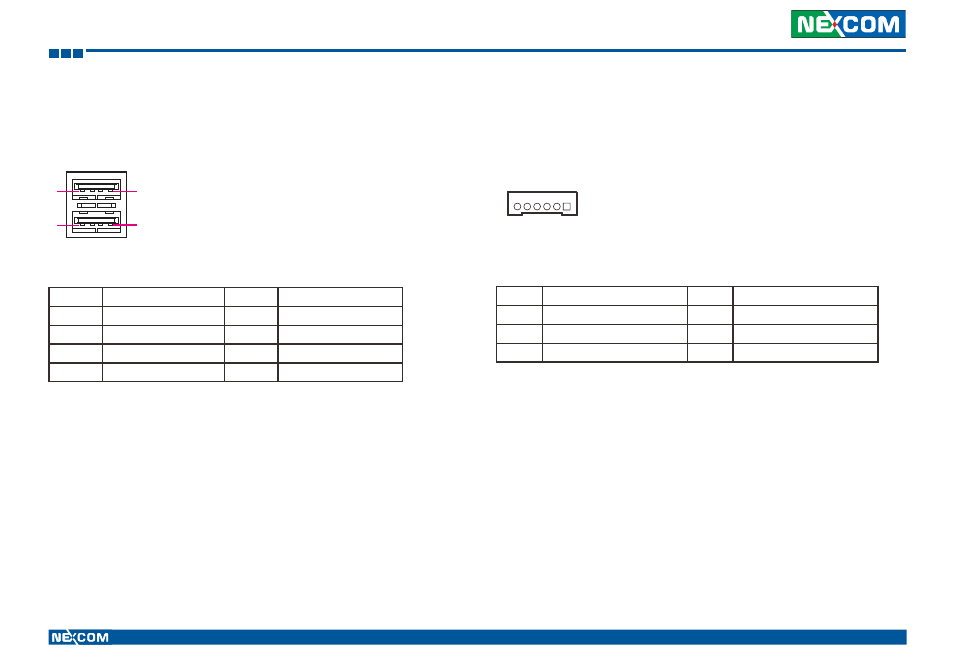

USB Ports
Connector size: Dual USB port, Type A
Connector location: USB1 and USB2
Pin Definition Pin Definition
1 VCC 2 DATA1-
3 DATA1+ 4 GND
5 VCC 6 DATA-
7 DATA+ 8 GND
1
5
4
8
LVDS Power Connector
Connector size: JST 6-pin, 2.54 mm pitch
Connector location: J2
Pin Definition Pin Definition
1 Panel_backlight 2 Panel_VDD
3 GND 4 GND
5 LVDS_PANEL 6 LVDS_BIASON
6 1
Connector pin definition Connector pin definition
