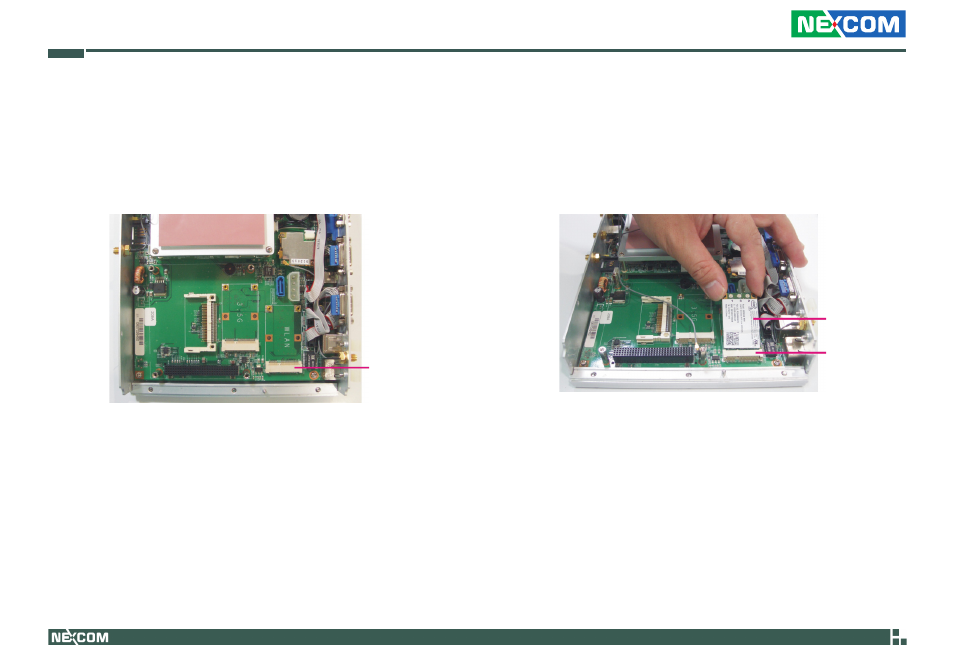

Installing a Wireless LAN Module
Mini PCI
Express slot
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 de-
grees angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
Wireless LAN
module
Mini PCI
Express slot
1. The Mini PCI Express slot shown below is used to install a wireless LAN
module.
